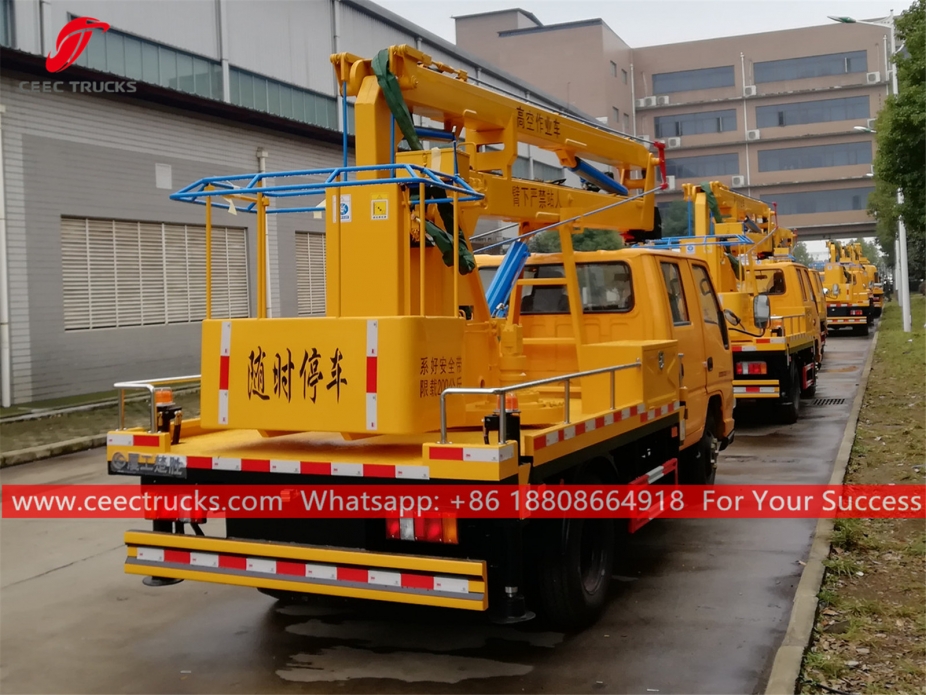

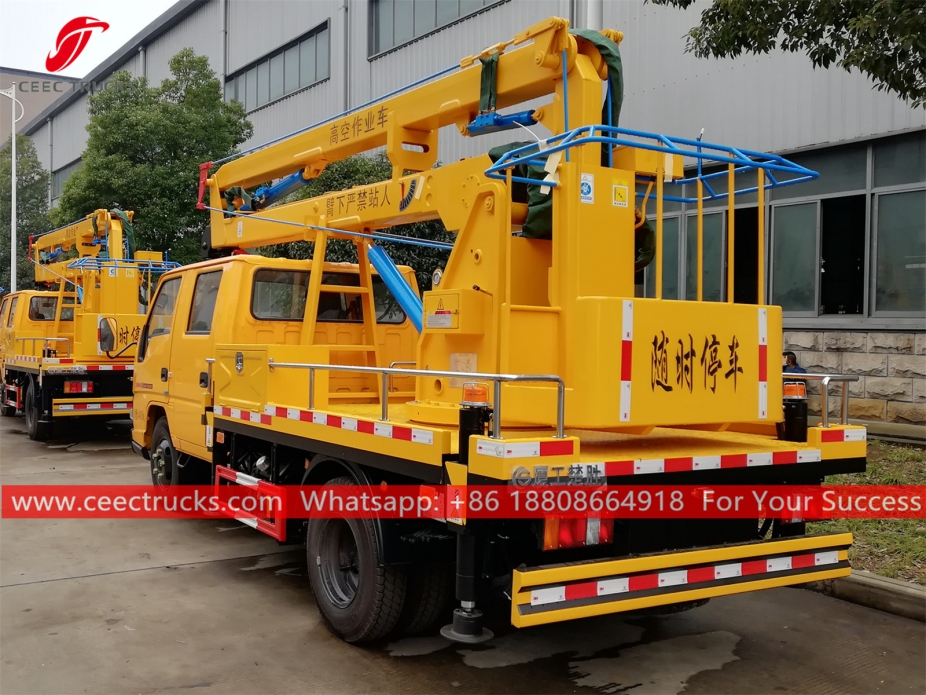

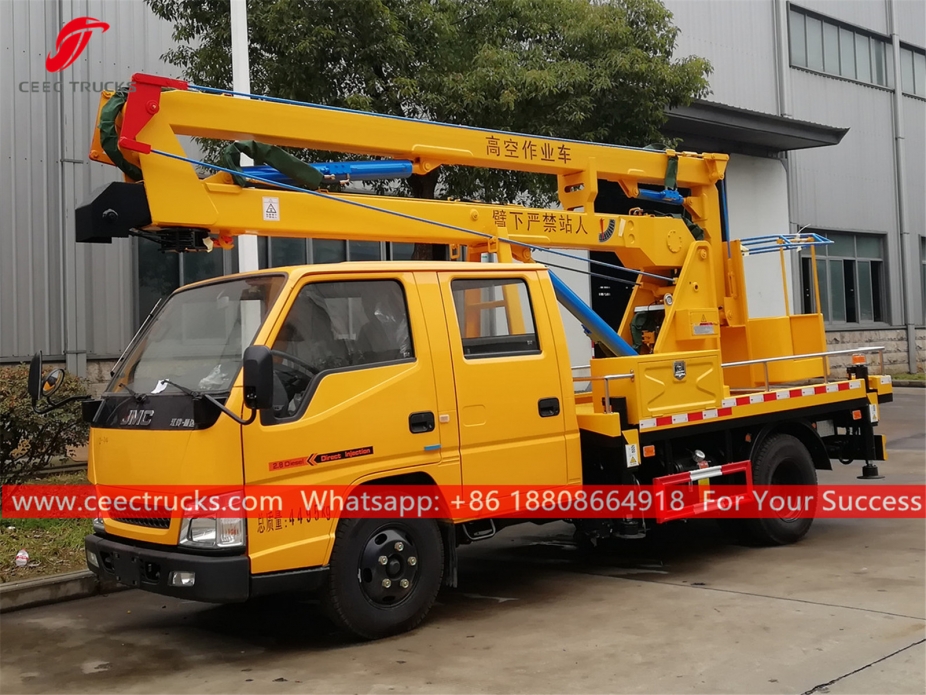

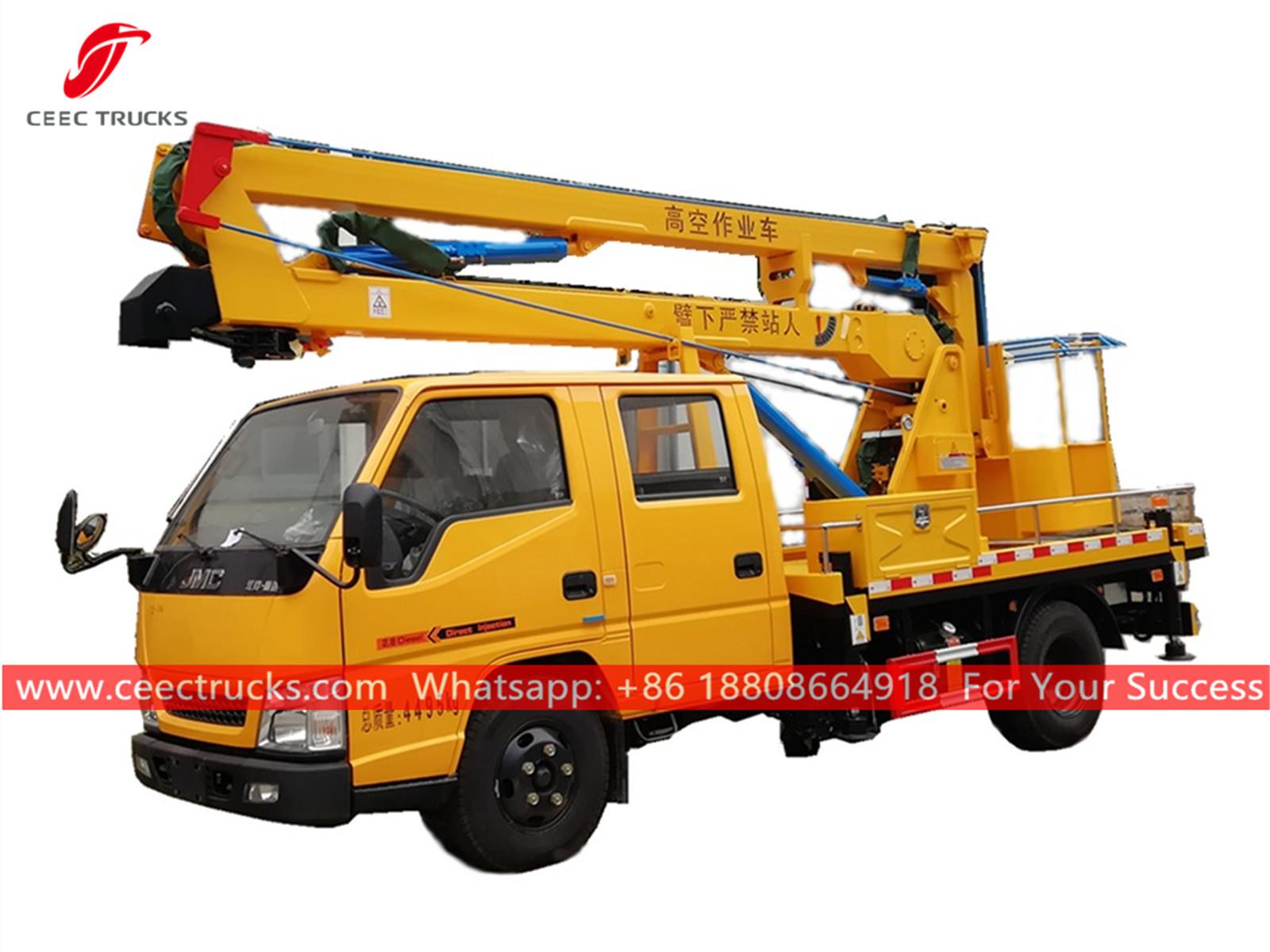

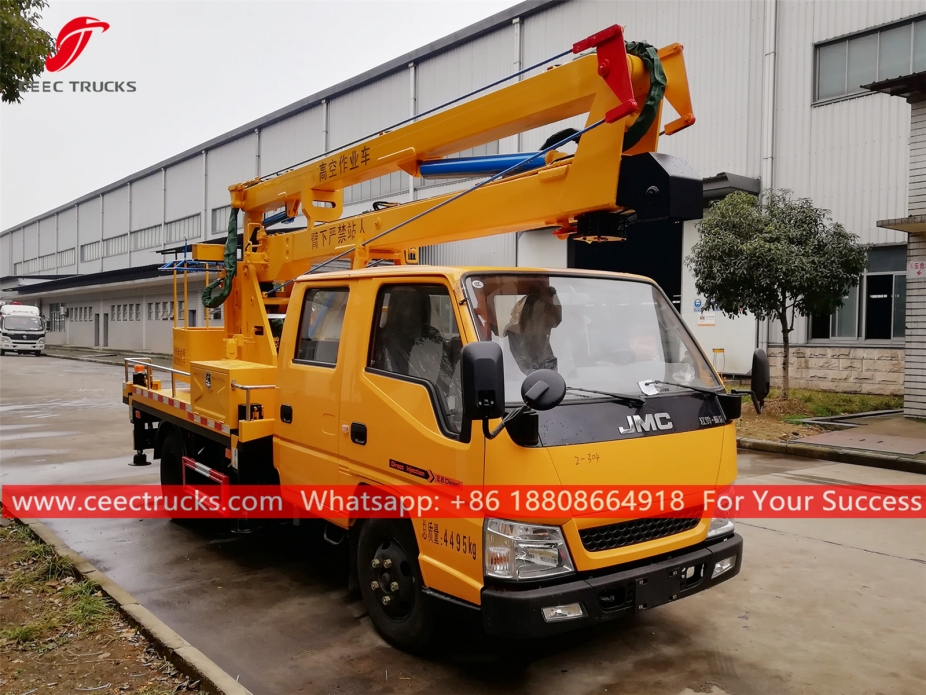

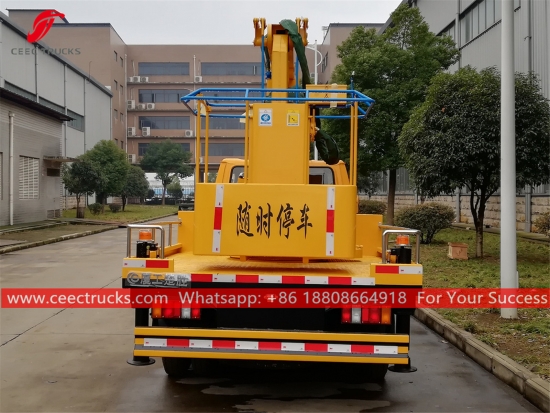

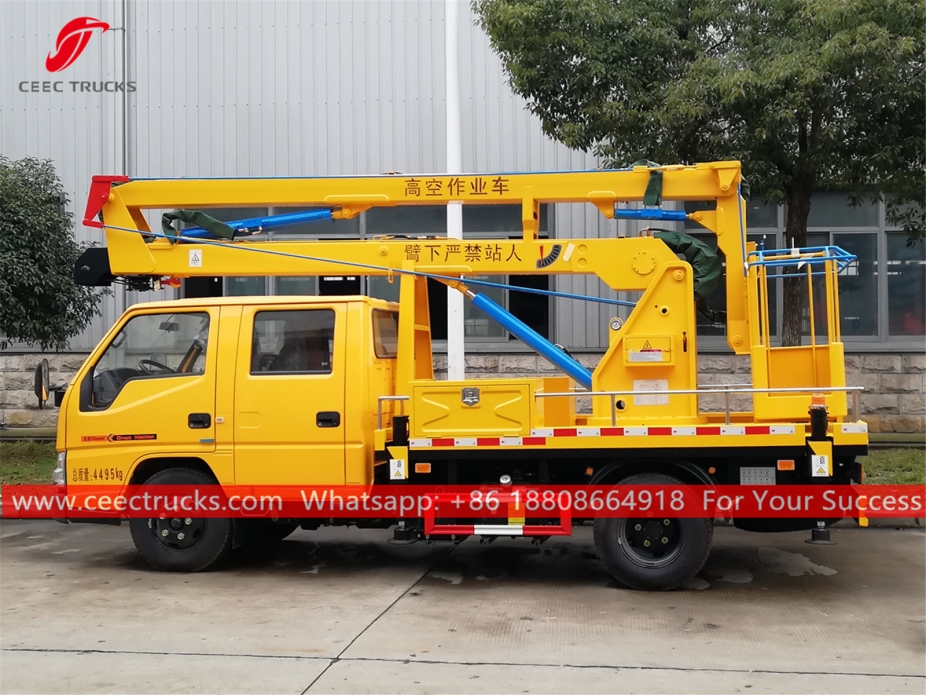

江铃16米高空作业车

16m bucket crane lifting truck, JMC brand model 4x2 chassis, 5-shift manual gearbox, 115HP diesel engine, painting and logos depend on requirement, Customer language control box.

支付:
T/T, West Union
产品起源:
China CEEC
运输端口:
China Main Port
交货时间:
20 Days

现在查询

Applications:

Aerial Platform Bucket Truck JMC (also called Bucket crane, boom lift, high platform truck, mobile man lift vehicle, man lift trucks) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.

CEEC TRUCKS can supply aerial platform truck from 6m-8m, 8m-12m, 14m-16m, 18m, 20-24m, 28m-32m.Insulated cage is optional.

Key Features:

---- JMC chassis, perfect performance

---- JMC engine, super powerful, no overhaul within 100,000 km.

---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);

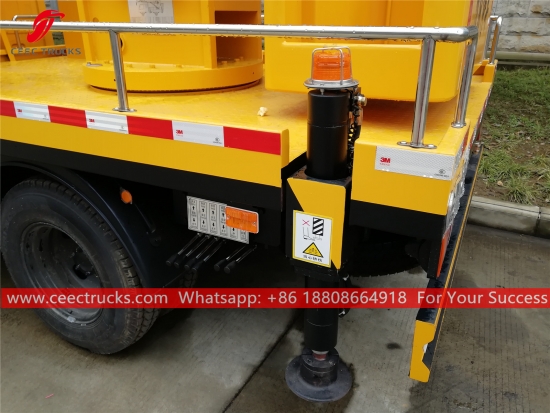

---- 4pcs outriggers and front support improve operation stability and safety;

---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;

---- Wireless remote control system is available.

Specifications:

Aerial Platform Truck JMC (16M)
General	Vehicle Brand	CEEC TRUCKS
	Chassis Brand	JMC
	Overall Dimension	5995 x 1980 x 2990 mm
	GVW / Kerb Weight	4,495 kg / 4,170 kg
Cab	Cab Capacity	2+3 persons allowed
Cab	Air Conditioner	With air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	JMC engine
	Power	115Ps (85 KW)
	Displacement	2771 ml
	Emission Standard	Euro 5
Chassis	Drive Type	4X2, left hand drive
	Transmission	Manual transmission, 5-forward gears & 1 reverse, no overhaul within 500,000km
	Wheelbase/No. of axle	3360 mm / 2
	Tyre Specification	7.00-16 or 7.00R16
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	95 km/h
	Paint	Metallic paint
Superstructure	Cage Rated Capacity	200 kg
	Working Height	16 m

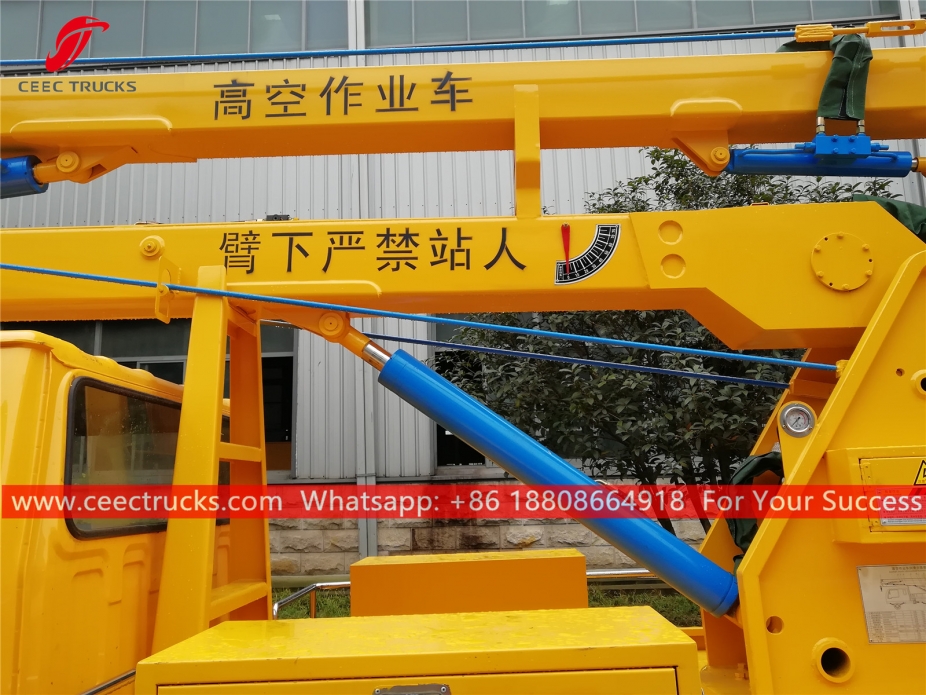

	Beam	The beam is articulated & telescopic extension type, hydraulic actuated and controlled
	Slewing	Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second.
	Control	Control both on the ground and remote control in cage
	Safety Device	Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump
	Leveling System	Hydraulic stabilizer to level the vehicle on uneven ground
Optional	Insulated cage; Wireless remote control system

★ JMC engine, super powerful

★ Can be operated at both turret and platform with all English version control plate

★ 12 months fast moving spare parts for FREE

★ Authorized JMC aerial platform trucks exporter

★ Training service for JMC high platform trucks

CEEC TRUCKS is a leading exporter of JMC Aerial Platform trucks in China. We possess over 10-year export experience of JMC high platform trucks. We can ensure the fast delivery time and 12 months guarantee for our sewage trucks. Our aerial platform trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.

---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely
