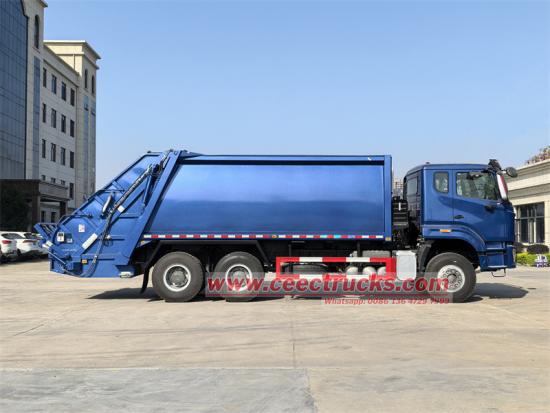

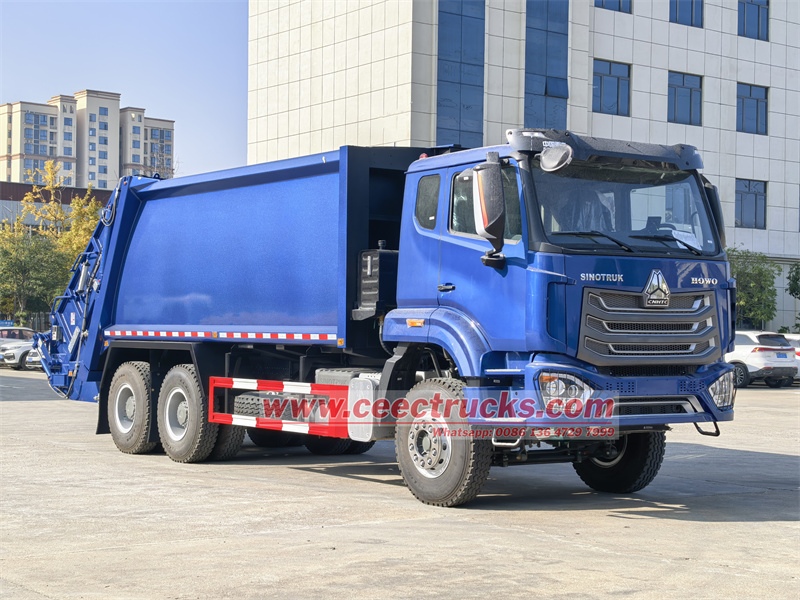

HOWO 6x4 20cbm rear loader compactor truck

20立方米豪沃后吊式垃圾车

Howo 6x4 20立方米垃圾压缩车基于中国重汽Howo NX 6x4底盘改装而成，轴距为4600+1350毫米。它搭载中国重汽WD615.47发动机（型号HW19710）和10速变速箱。车体为20立方米弧形碳钢压缩垃圾桶，经防腐防锈处理，配备全密封后盖和悬挂式翻斗机构。垃圾的装卸由CAN总线电子控制系统控制，具体通过三个控制点实现：驾驶室内的电子控制箱、驾驶员侧的手动液压操作杆和尾门上的电子控制箱。

工作能力:
20cbm
尺寸（毫米）:
10720 x 2500 x 3400 mm
轴距（毫米）:
4600+1350mm
发动机功率:
371HP/273kW
发动机类型:
SINOTRUK WD615.47
车轴驱动:
6x4
齿轮箱:
Sinotruk HW19710 10-speed,manual
评论:
Payload capacity can be customized

现在查询

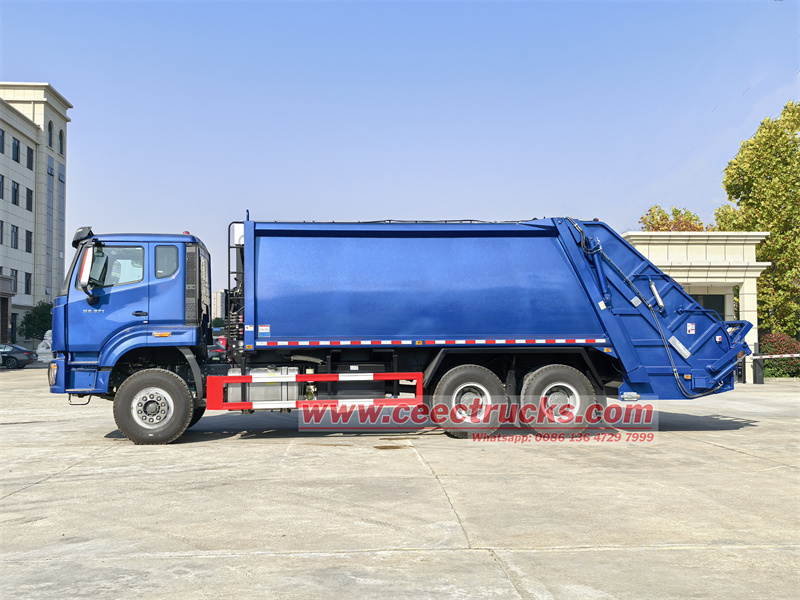

20立方米豪沃卡车垃圾压缩车

The 20cbm Howo rear lifting garbage truck is designed for efficient sanitation operations, featuring a heavy-duty chassis and intelligent compression technology. Its 20 cubic meter arc-shaped carbon steel body boasts excellent sealing, combined with a two-way compression system, can carry more garbage. At its core is the intelligent CAN-BUS electronic control system, which allows for precise operation of the entire process—including bin tipping, scraper compression, and push-loader unloading—through three control points: the cab, the side of the vehicle, and the tailgate. Integrating automatic loading, efficient compression, and sealed transfer, it significantly improves garbage collection efficiency and sanitation standards.

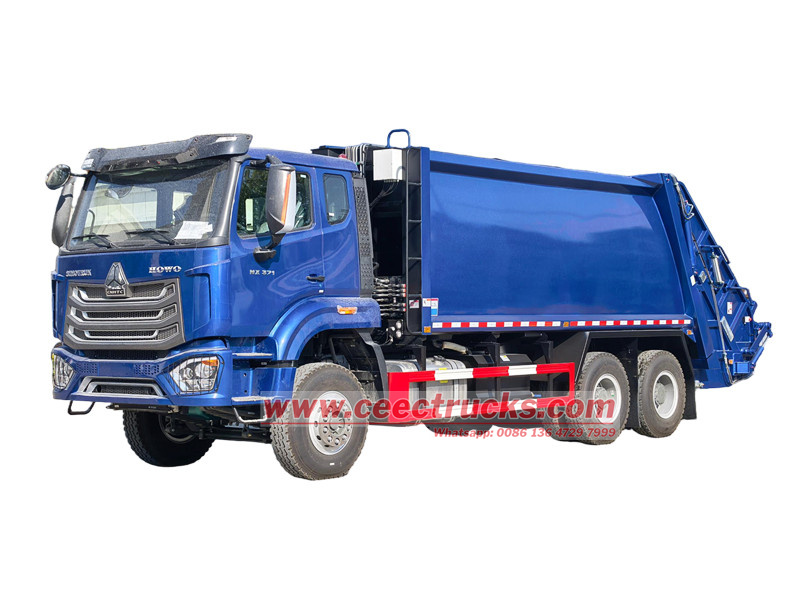

HOWO 20 CBM back loading garbage truck

Key Feature:

----HOWO NX chassis, perfect performance

---- Sinotruk engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Compact body capacity from 3 to 35 Cubic Meter.

---- Easy operation and easy maintenance.

---- Various types of refuse container lifter are available.

Product Parameters:

HOWO 6x4 20cbm rear loader compactor truck
Chassis
Dimensions	*10,720 2,5003,400 mm*
GVW/Curb Weight	25,000/10,100kg
Wheelbase	4,600+1,350mm
Front/Rear Axle	7T/18T(2 axle)
Tire	12.00R20, 10+1 tires
Engine
Type	Diesel, In-line 6-cylinder, water-cooled, four-stroke, with exhaust valve brake, direct injection, supercharged intercooling
Make/Model	SINOTRUK / WD615.47
Horse Power （ HP)	371 HP/273kW
Max torque	1500N.m
Rated speed	2200rpm
Max torque speed	1100-1600rpm
Fuel tank (L)	400L
Displacement	9.726L
Emission standard	Euro 2
Transmission
Model	SINOTRUK/HW19710
Gears	10F+2R
Operation	Manual
Cabin
Driving	SINOTRUK HOWO NX 6X4, Left Hand Drive
Type	Steel construction, Single Row, Flat
Passenger No.	3
Garbage Container
Capacity	20 CBM
Material	Weather-resistant steel
Design	Sealed leakage proof
Compaction Ratio	3:1- 6:1
Hopper Volume	2m3

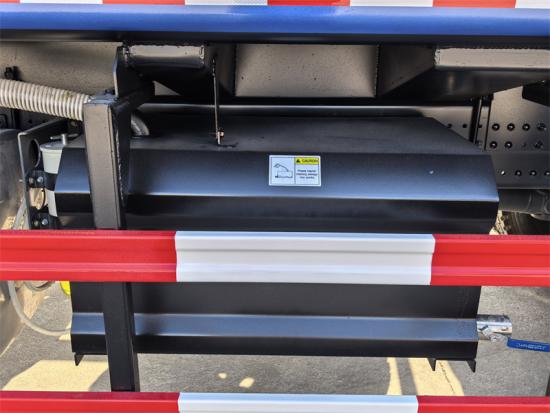

Sewage Tank	200L + 200L
Flip mechanism	Without, direct trash dumping
Loading Time	8~10s
Loading Cycle Time	≤40s
Unloading Time	≤45s
Discharge Type	Rear loading and discharging
Discharging system	Horizontal ejection
Control System	Siemens Automatic CAN system : Front control in the cab, rear button control, and manual control

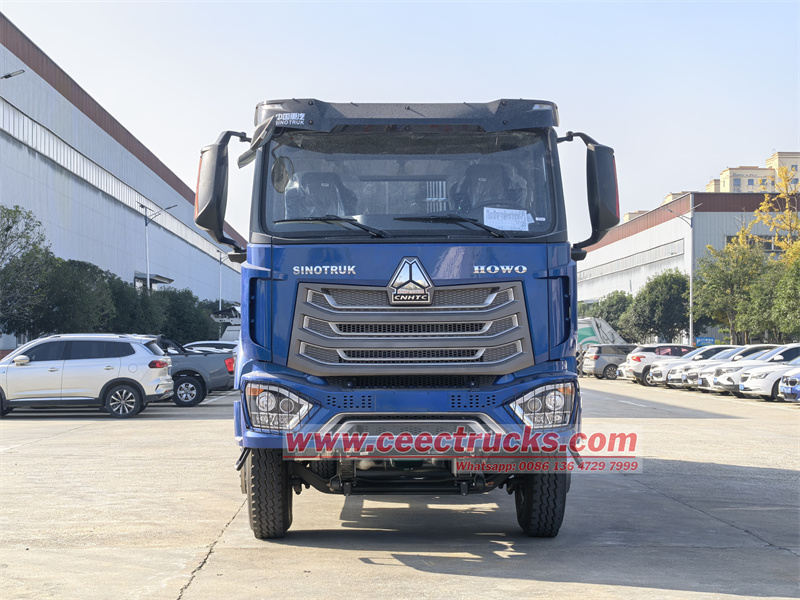

HOWO 6x4 20cbm rear loader compactor truck

Product Details:

Chassis Configuration

• Based on the Sinotruk Howo NX 6x4 chassis, 7-ton front axle, 18-ton dual rear axle load capacity

• Wheelbase: 4600+1350mm

• Engine: Sinotruk WD615.47 engine, 371HP, 1500 Nm wheelbase, Euro 2 emission standard

• Transmission: HW19710 10-speed transmission, smooth shifting and high transmission efficiency

Container Structure

• Volume: 20 cubic meters

• Material: Curved carbon steel container

• Processing: Professional anti-corrosion and rust-proofing treatment to extend service life

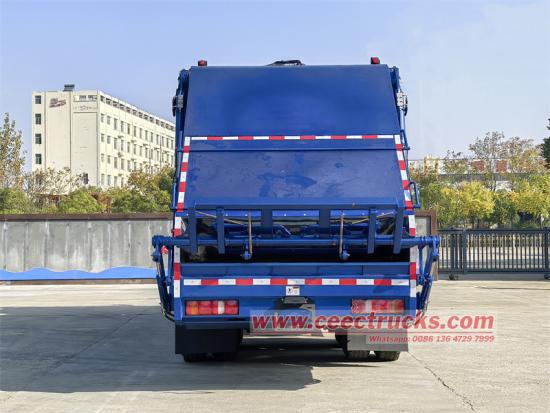

• Rear Design: Fully sealed lid to prevent garbage spillage and sewage leakage during transportation

Loading System

• Loading Method: Hook-mounted bin tipping mechanism, compatible with standard 120L/240L/660L garbage bins

• Compression Mechanism: Two-way compression technology, compression ratio can reach 1:3 or higher

Intelligent Control :

The entire vehicle adopts an advanced CAN-BUS bus control system, enabling intelligent and precise control of the garbage loading and unloading process.

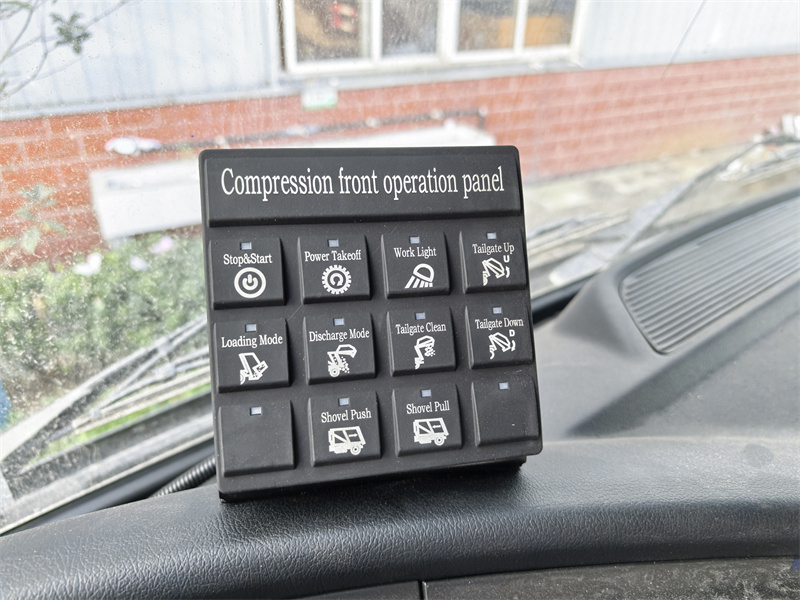

• Cab electrical control box function buttons: Work start/stop, loading mode, unloading mode, loader lifting/lowering, pusher extension/retraction, cleaning function.

Cab electrical control box

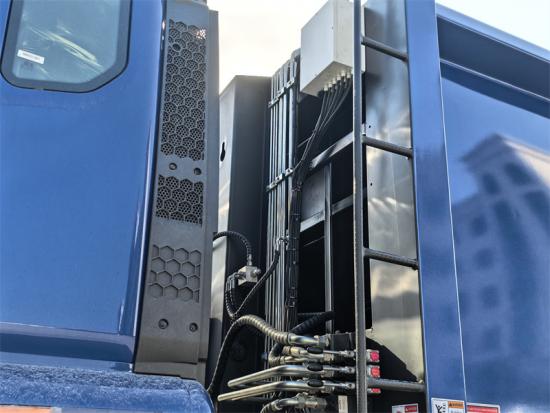

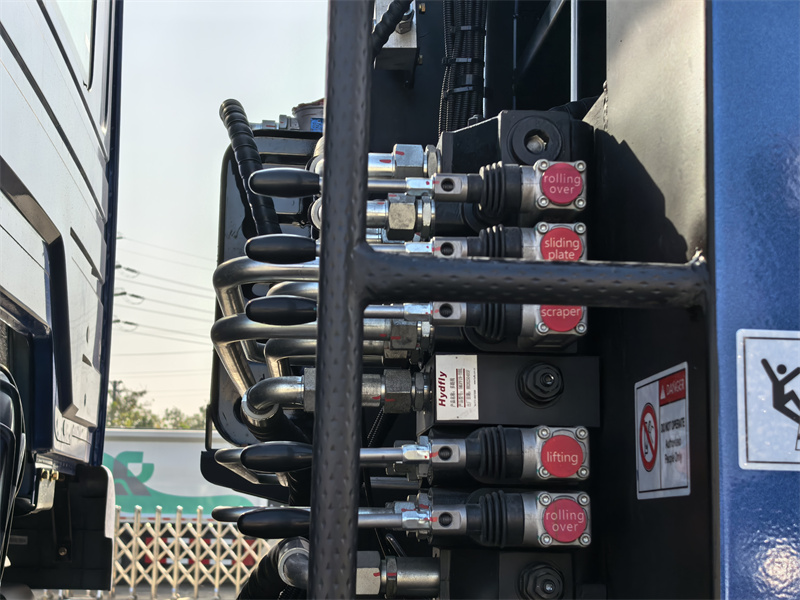

• Driver-side manual hydraulic control lever operation functions: Tilting mechanism lifting, scraper lowering/spinning, slide plate up/down, pusher extension/retraction.

Driver-side manual hydraulic control lever

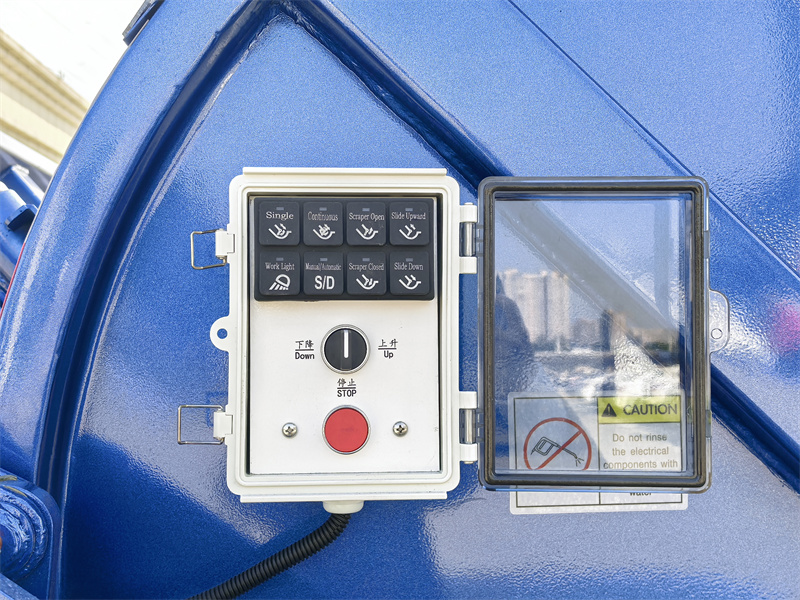

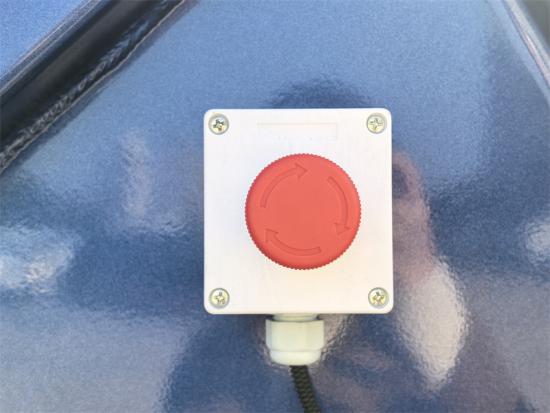

• Tailgate electrical control box: Single/continuous cycle, scraper lowering/spinning, slide plate up/down, automatic/manual mode, work lights, emergency brake, etc., tilting frame tilting knob.

• Tailgate electrical control box:

Working Principle:

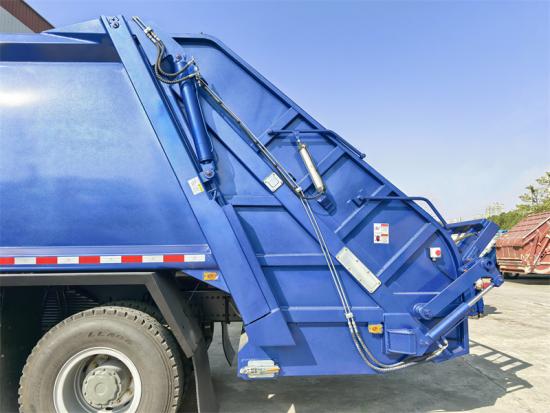

The Howo 6×4 20 cubic meter rear lifting garbage truck's loading and unloading is based on a combined hydraulic drive and intelligent electronic control system. During loading, the bucket tipping mechanism lifts the garbage bin above the container and dumps the garbage. Under the action of the hydraulic cylinder, the scraper unfolds and descends with the sliding plate, then rotates to scrape and compact the garbage. The sliding plate moves upward, scraping the garbage into the container. The pusher retracts under the compressive force, achieving continuous filling.

How does the garbage compactor truck work?

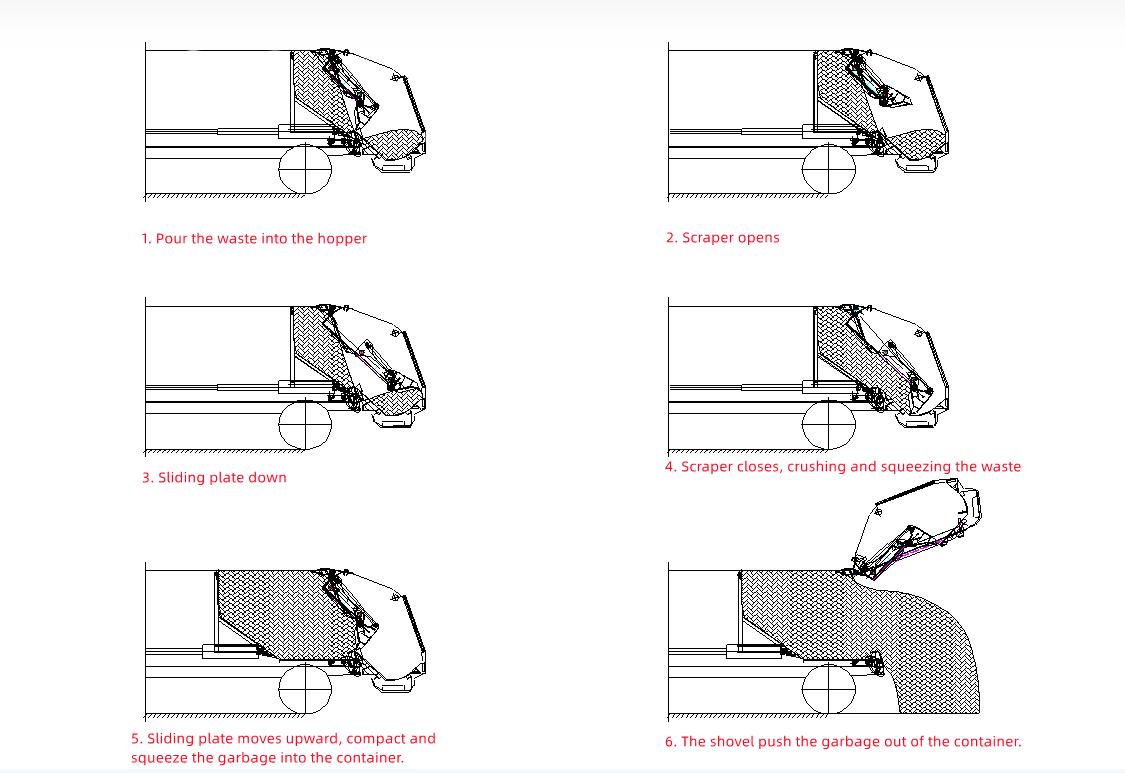

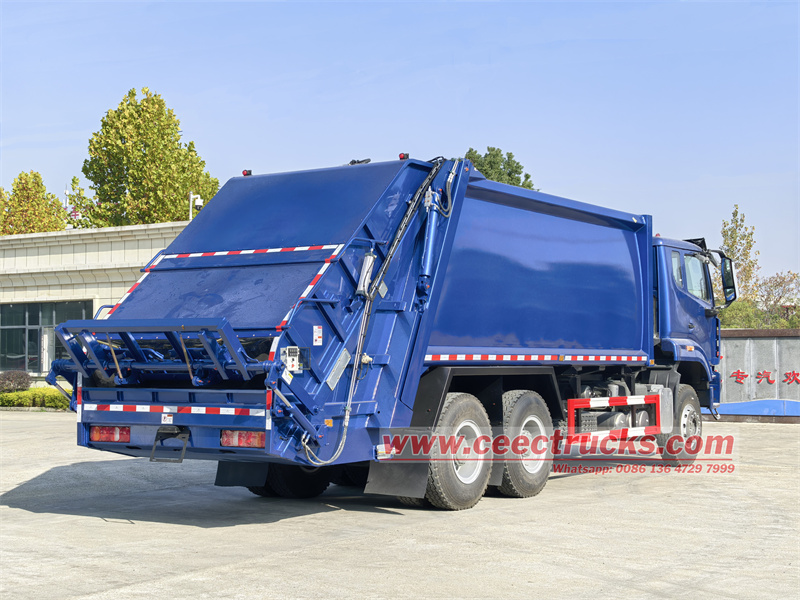

HOWO 6X4 20CBM garbage disposal truck work steps

During unloading, the loader lifting cylinder raises the rear end, and the pusher cylinder horizontally pushes out the garbage, returning to its original position after unloading. The electronic control system supports dual-position operation from the cab and tailgate, with manual hydraulic operation located on the driver's side. Combined with hydraulic overload protection and a sealing design, it ensures safe and efficient operation.

Filler

SINOTRUK HOWO 6x4 Compacted 20m3 Garbage Compactor Truck

★ Weichai WD615.47 Euro 2 engine, super powerful

★ SINOTRUK HW19710 Manual 10-shift mechanical transmission gearbox

★ 12 months fast moving spare parts for FREE

★ Authorized HOWO 20CBM garbage compactor truck

★ Training service for Howo 6x4 rear loader compactor truck

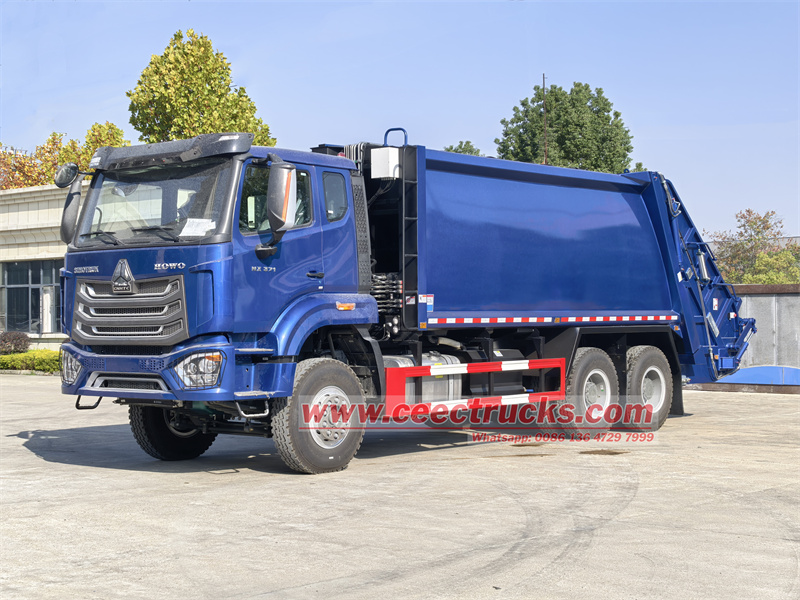

Sinotruk HOWO 6X4 Heavy Duty Waste Collection Truck

中国专业的消防车供应商和出口商，我们供应高质量的消防车。 garbage compactor truck. We can ensure the fast delivery time and 12 months guarantee for our trash compactor truck. Our rear loader truck are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.

---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely
