Applications:

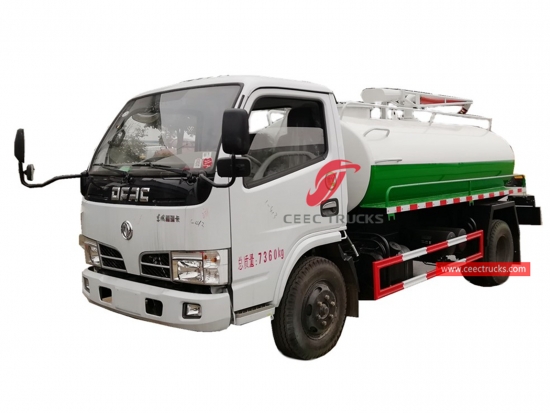

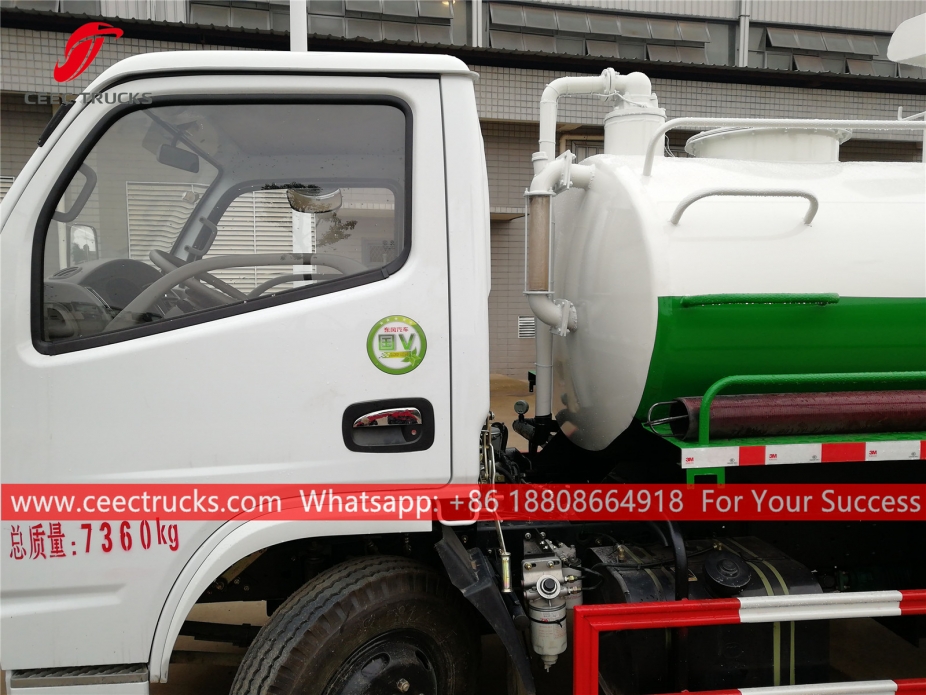

Vacuum Tank Truck DONGFENG (also called cesspit emptier vehicle, sewer cleaning truck, sewage tanker, sewer truck, cesspit emptier, gully emptier, vacuum truck, gully emptier, waste vacuum tanker, vacuum tanker, sewage truck) is used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.
CEEC TRUCKS Kitchen garbage truck truck which use WEILONG or Italy BP vacuum pump, for 10CBM or more recommend Double Pump for efficiently working.
The septic pump truck can be equipped with cabin Pneumatic Control for easy operation.
Key Features:
---- DONGFENG chassis, perfect performance
---- CUMMINS / YUCHAI / CHAOCHAI technology engine option, super powerful, no overhaul within 100,000 km.
---- Vacuum Tanker body capacity from 3 to 20 Cublic Meter.
---- Easy operation and easy maintenance.
---- Virious types of refuse container lifter are available.
Specifications:
| Vacuum Tanker truck DONGFENG (4 cbm) | ||
| General | Vehicle Brand | CEEC TRUCKS |
| Chassis Brand | DONGFENG | |
| Overall Dimension | 5990 * 1980 * 2400 mm | |
| GVW / Kerb Weight | 7,360kg / 4,030kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | CHAOCHAI | |
| Power | 102 HP (75 KW) | |
| Displacement | 3707 ml | |
| Emission Standard | Euro 5 | |
| Chassis | Drive Type | 4X2, (left hand drive) |
| Transmission | Manual 5-shift speed levers with 1 reverse | |
| Wheelbase/No. of axle | 3308 mm / 2 | |
| Tire Specification | 7.00-16 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Body capacity | 4,000 Litres |
| Tanker Material | Carbon Steel | |
| Suction Head pipeline | 7 m | |
| Vacuum Pump brand | WEILONG / Italy BP / Domestic Pump | |
| Vacuum Pump advantage | High efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m | |
| Hose | High quality, wire strengthened hose | |
| Control panel | English or Your language | |
| All standard accessories: Inlet pipeline, discharge nozzle, cabin pneumatic control box, basic tool kit, English manual…… | ||
| Optional | ** Back alarm and Camera can be equipped. ** Standard carbon steel, stainless steel optional. ** Standard WEILONG vacuum pump, Italy vacuum pump optional | |
★ Euro 5, CHAOCHAI engine, super powerful
★ 12 months fast moving spare parts for FREE
★ Authorized Dongfeng sewage suction trucks exporter
★ Training service for Dongfeng vacuum tanker trucks
