15 DaysTOP 45 CBM Cement Tanker Semitrailer Export

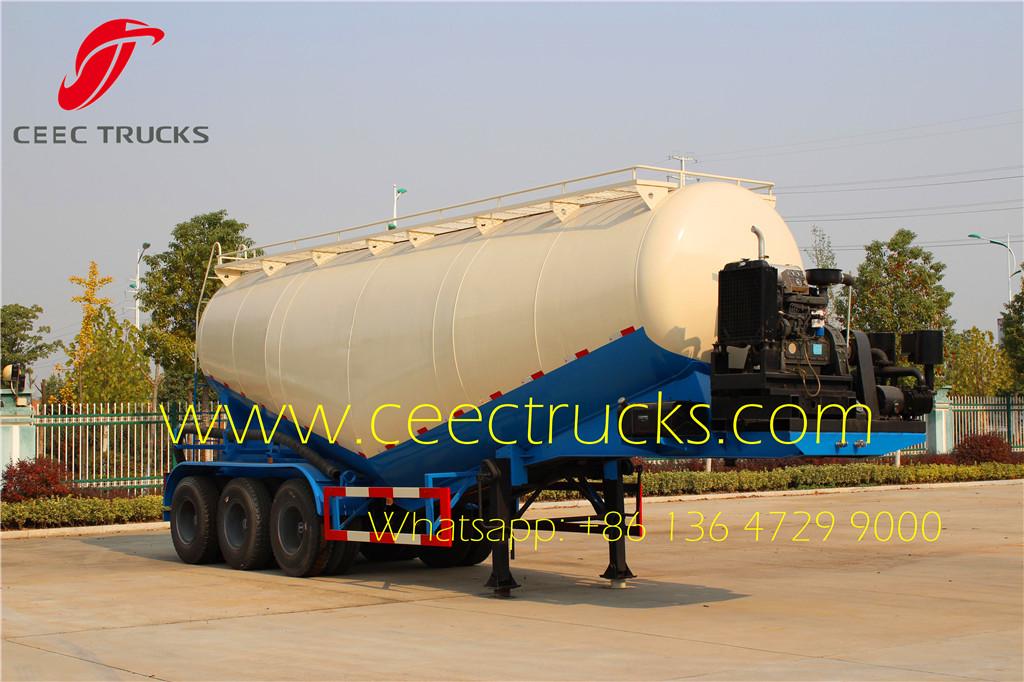

Bulk Cement Tanker Semitrailer Functions:

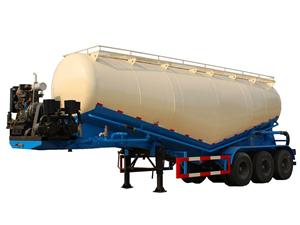

CEEC TRUCKS produced powder transport semitrailer, also can be called cement tanker trailer, cement trailers, cement flour tanker trailer, bulk powder tanker trailer. which equipped with air compressor, and the cement trailer self loading is used for carrying cement, flour or any other dry powder materials in bulk and it has ability to load the material by it self without need of any other loading machine. We use China famous brand vacuum motor for suciotn and loading operation.

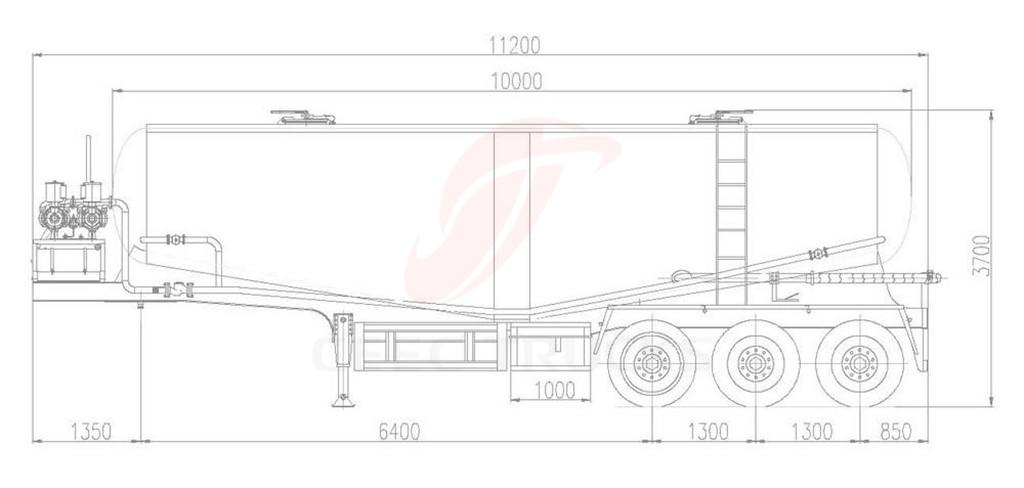

45 CBM bulk powder tanker semitrailer technical drawing as below
Cement Flour Tanker Trailer Advantages:
★ International standard Carbon steel Q235 and Q345 material, with one compartment and multiple compartment for optional

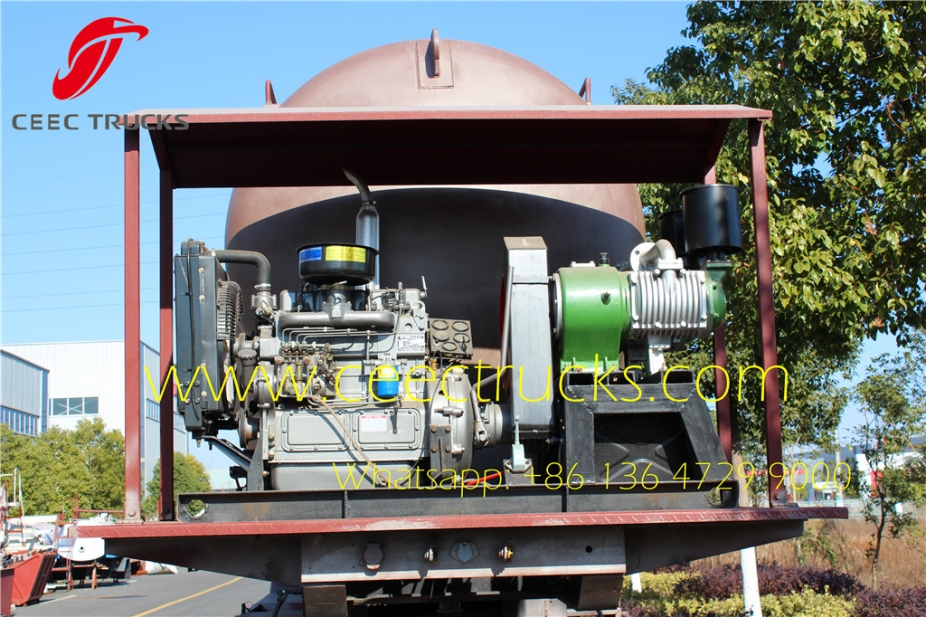

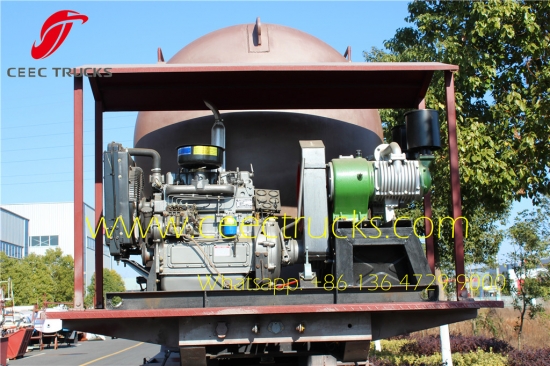

★ Famous domestic brand Air Compressor and WEICHAI engine, good performance
★ Axle style: BPW and FUWA brand 13T & 16T for optional
★ Landing Gear: JOST and HOLLAND brand, or standard
★ TOP chinese brand 11.00R20 model tire as standard equipment, tire quantity 12 units
★ 12 months free fast moving spare parts

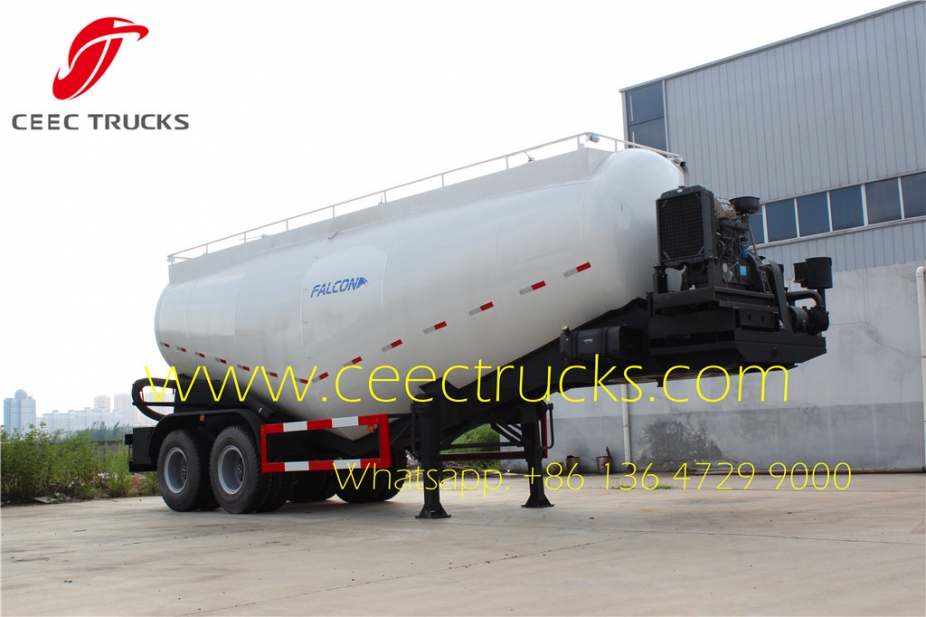

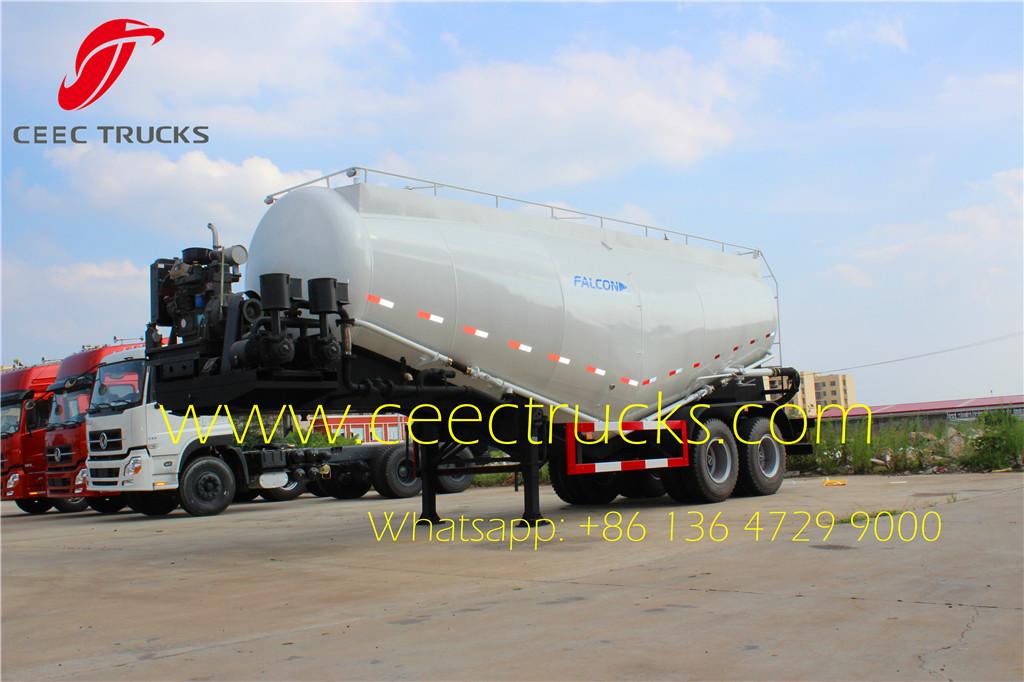

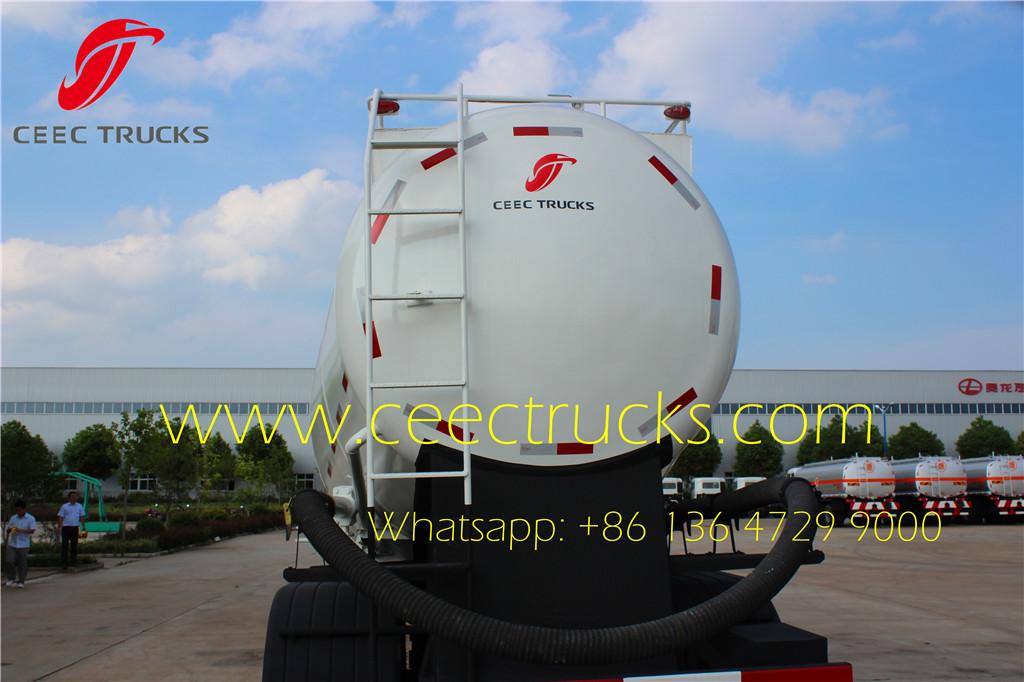

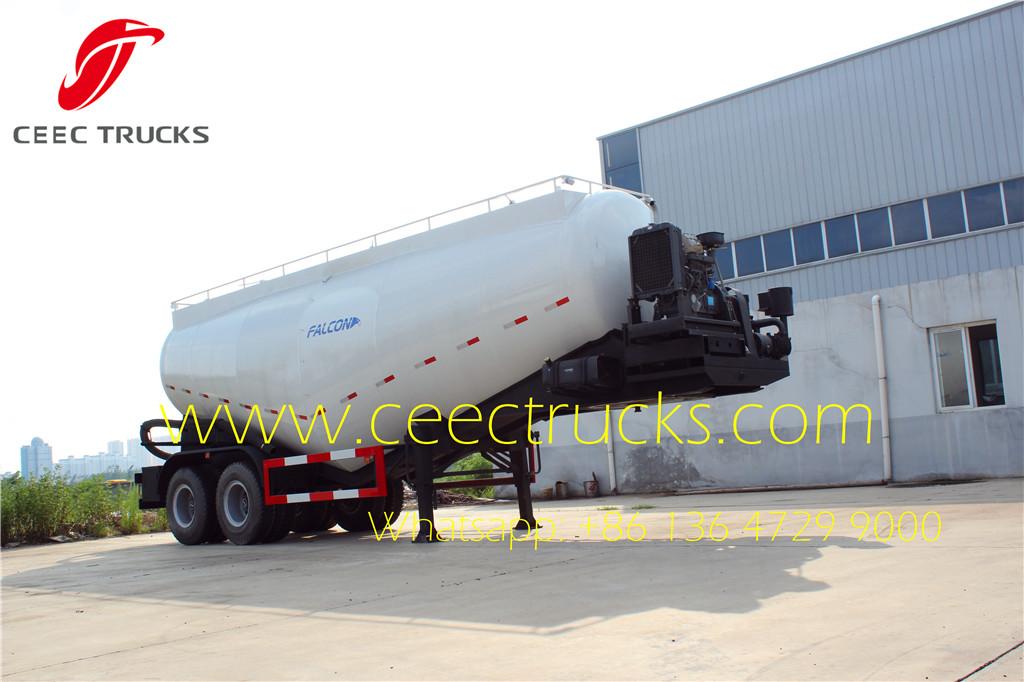

Ecuador customer purchased 2 axle 30 CBM bulk cement trailer
Similar Key Works: Bulk cement tanker semitrailer, powder tanker semitrailer, Cement flour tanker semitrailer, 2 axle cement tanker semitrailer, 3 axle powder semitrailer, 45 CBM bulk powder transport semitrailer
| Tank Body | |
| Shape | Optional(One Silo with V type or Two, Three Silos Design) |
| Dimension | 12000×2490×3900mm(Adjustable as your requirements) |
| Tare weight | About 7.5-15T |
| Total Volume | 30m3-68m3 |
| Tanker Body Material | 5mm or 6mm Q235 carbon steel |
| End Plate | 5mm or 6mm Q235 carbon steel |
| Diesel Engine | WEICHAI 4100/4102 or other brands |
| Compressor | BOHAI 10m3/12m3or other brands |
| Manhole Cover | Cabon steel. Diameter: 500mm |
| Discharging Valve | Diameter is 3 or 4 inches |
| Discharging Pipe | 3 or 4 inches rubber hose, 1pcs, 6m/each |
| Cat Walk | With(Common model or special design) |

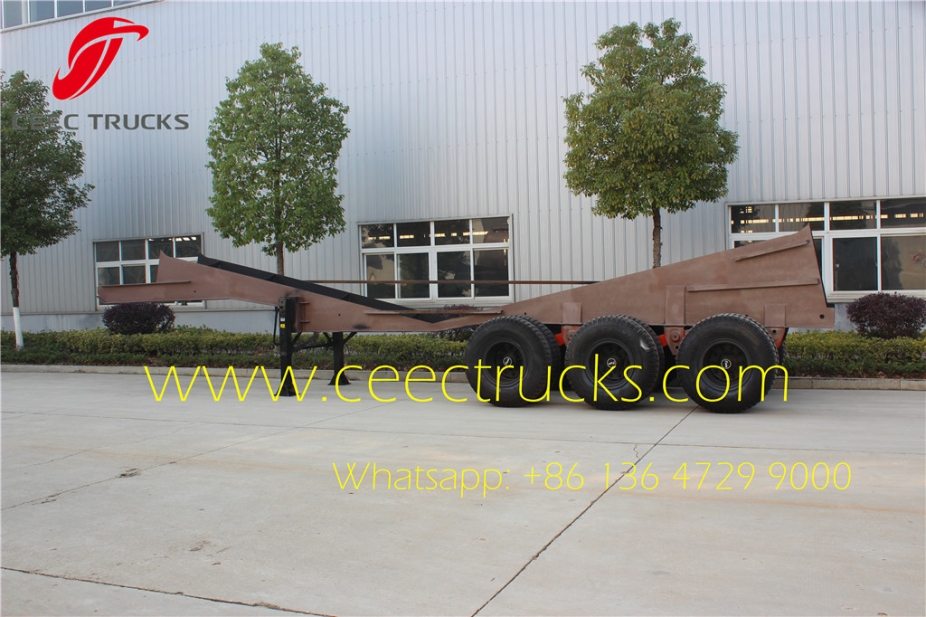

| Chassis | |
| Main Beams | Welding Design, Q345 carbon steel |
| Axle | 2 or 3 axles, 12T/13T/16T, BPW/FUWA/HUAJING brand |
| Landing Gear | JOST(D200T）or CHINA BRAND 28T |
| King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
| Suspension | Mechanical Suspension(Germany or America type) or Air Suspension |
| Leaf Spring | 90(Width)mm×13(Thickness)mm×10(Layer) or 100(Width)mm×12(Thickness)mm×12(Layer) |
| Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two 45L air tanks |
| Rim | 9.00-22.5/8.00-20/8.5-20 |
| Tire | 12.00R22.5, 315/80R22.5, 11.00R20, 12.00R20 |
| ABS | Optional |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paints |
| Accessories | One standard tool box |
| Shipping Terms | By Bulk Cargo or RORO |
China Best Semitrailer on sale
|
|
|
|
|
| |
| Axle | |||||
| Landing Gear | |||||
| Tire | |||||
| Payload | |||||
| Drive Type |
Other beiben trucks display
SaveSave
1, This powder tanker semi-trailer comes with a 45m3 lifting tank. The volume can be tailor-made based on specific requirements.
2, For the powdery chemicals tanker semi-trailer, we have designed a specialhigh-temperature resistant fluidized structure. A national patent has beenobtained for the high-temperature resistant design. Due to the special design,90% of goods can be dumped when the truck cabinet lifting degree reaches 15°.The rest 10% will be completely unloaded within 4 to 5 minutes.
3, Instark contrast to the conventional power truck, this powder tanker semi-traileris featured by light weight, low gravity center, fast unloading speed with lessresidue, easy maintenance, etc.

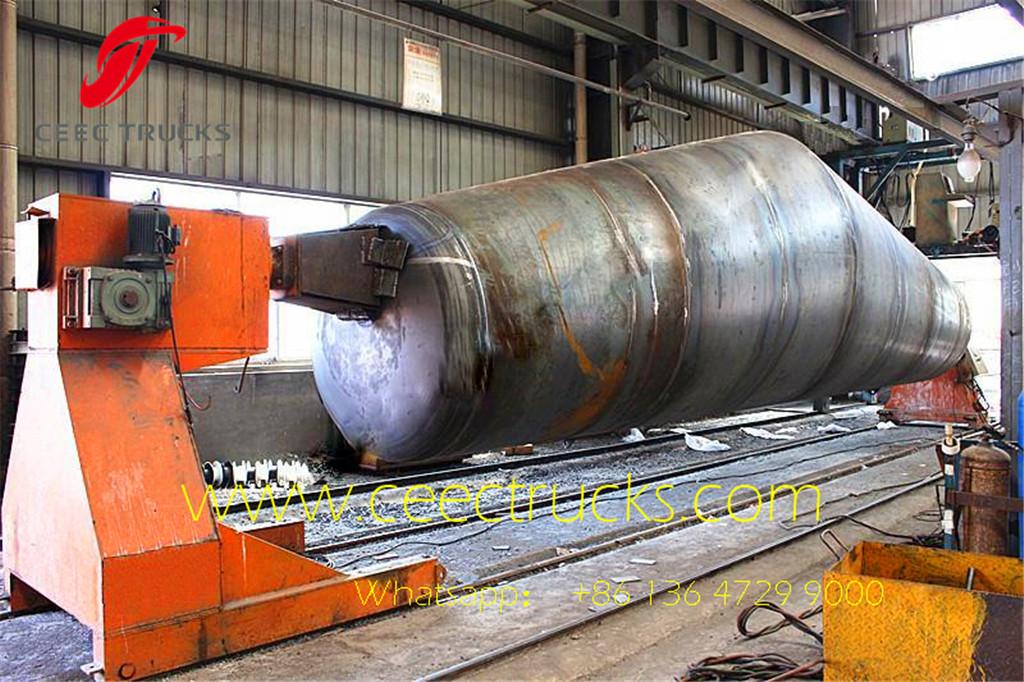

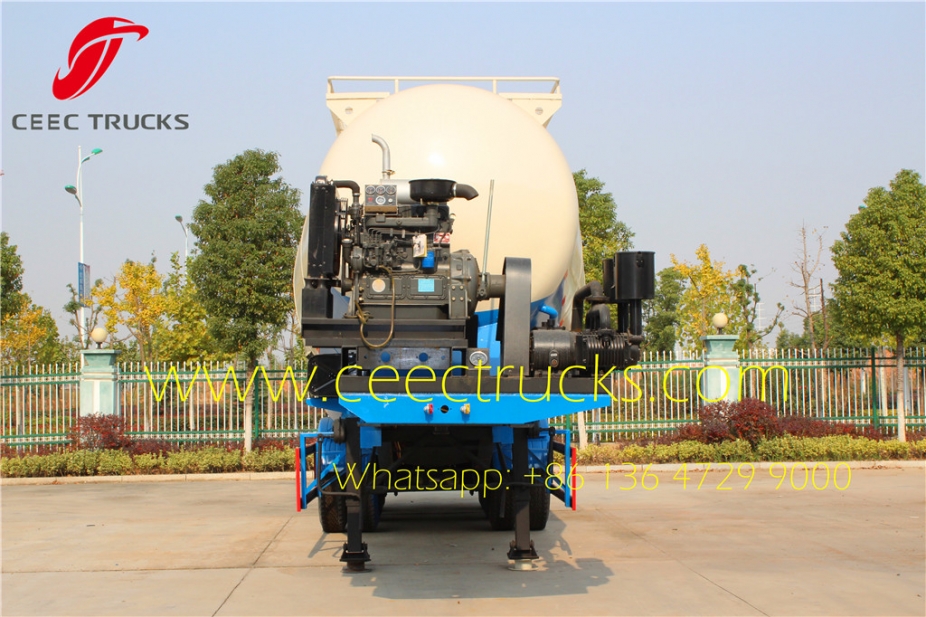

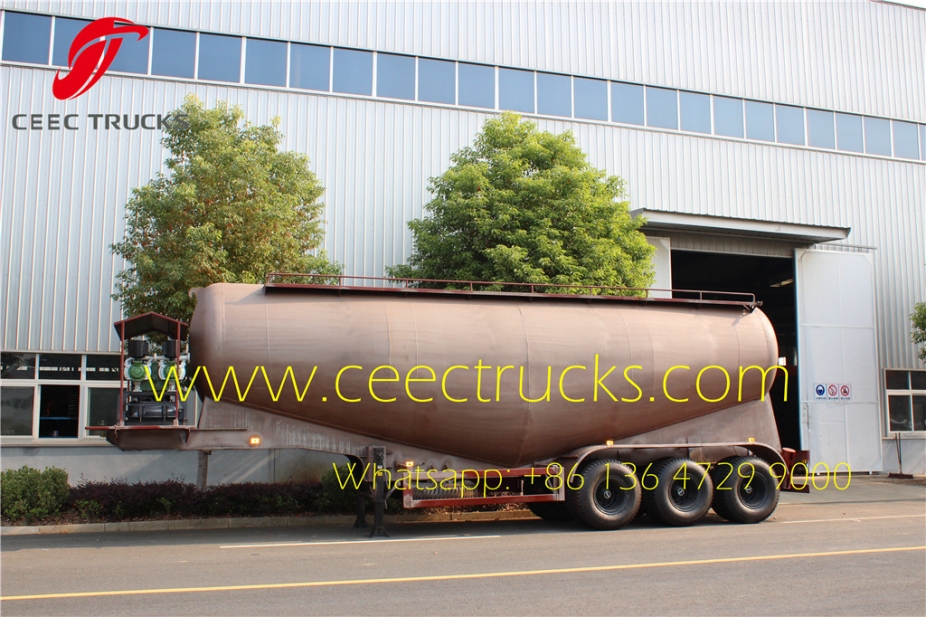

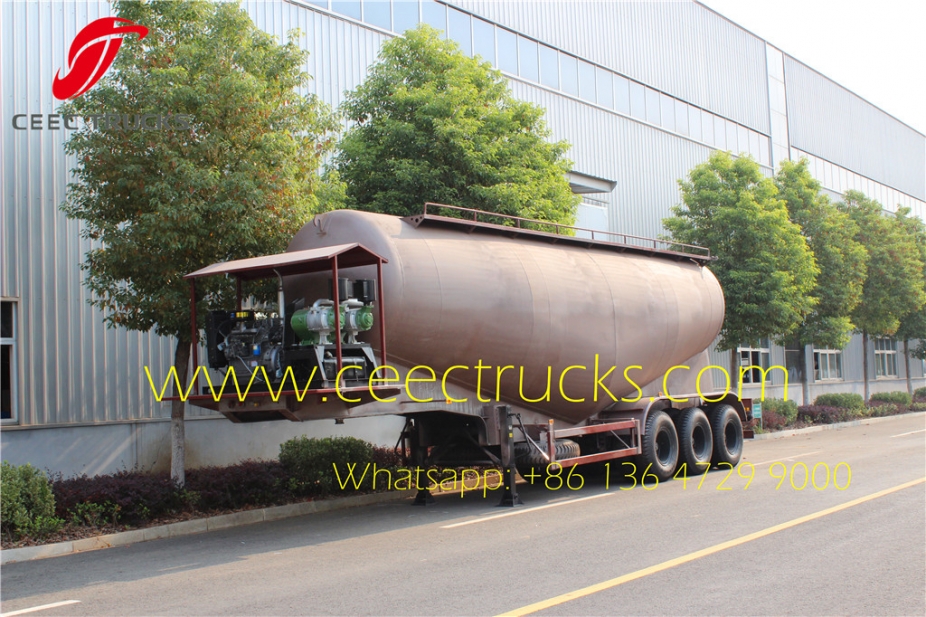

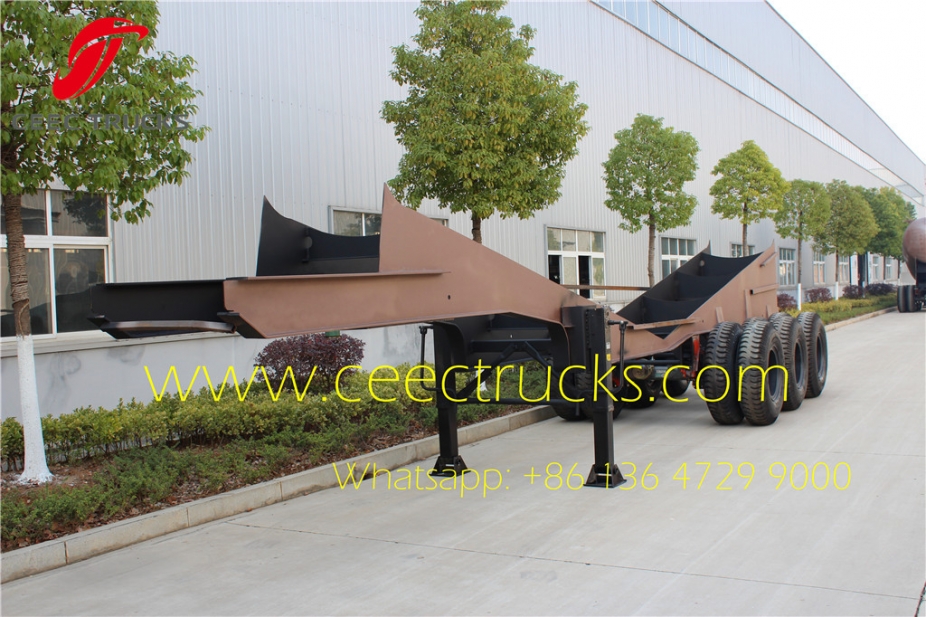

CEEC TRUCKS Bulk Cement Tanker Semitrailer Produce Plant

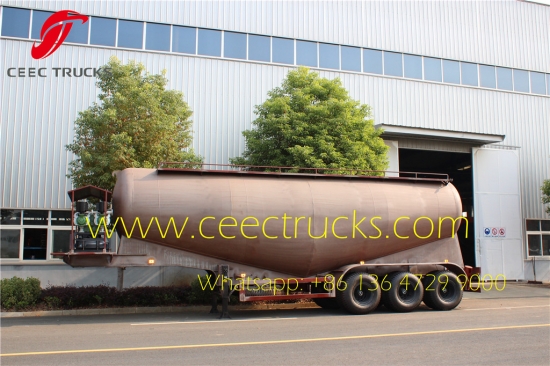

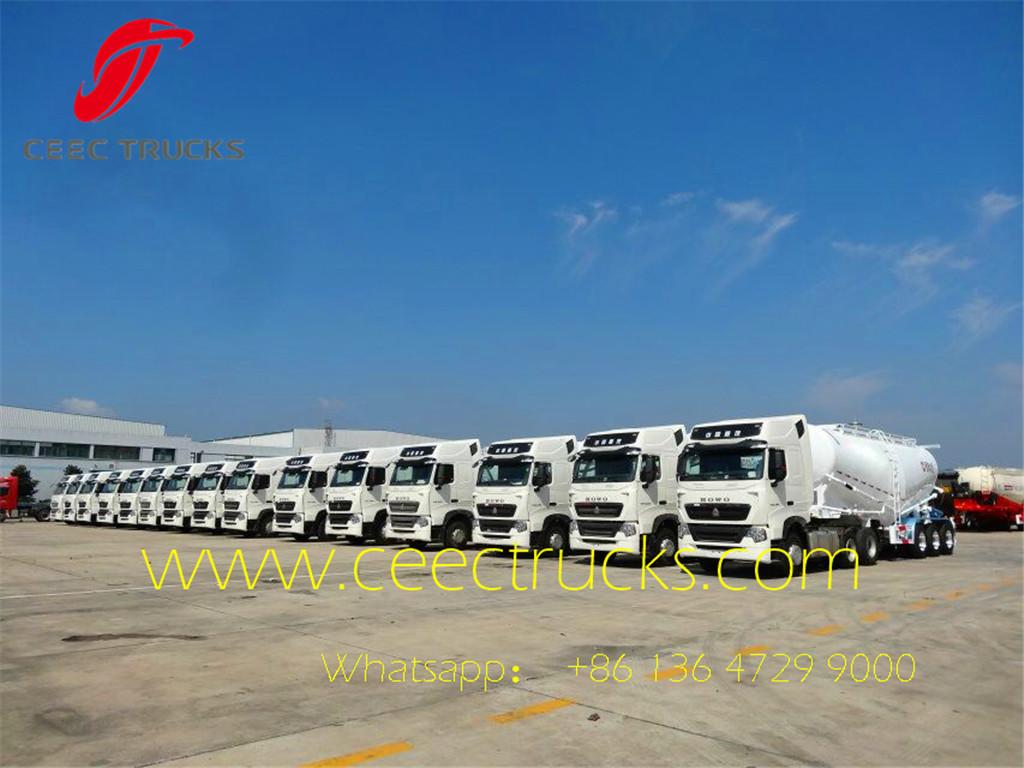

Bulk Cement Tanker Semitrailer in factory stock for quick delivery
