支付:
T/T, West Union市价:
$45300价格:
$41,300/47,800产品起源:
China CEEC运输端口:
Shanghai seaport交货时间:

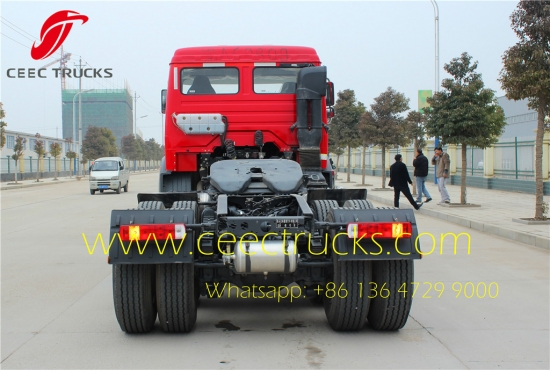

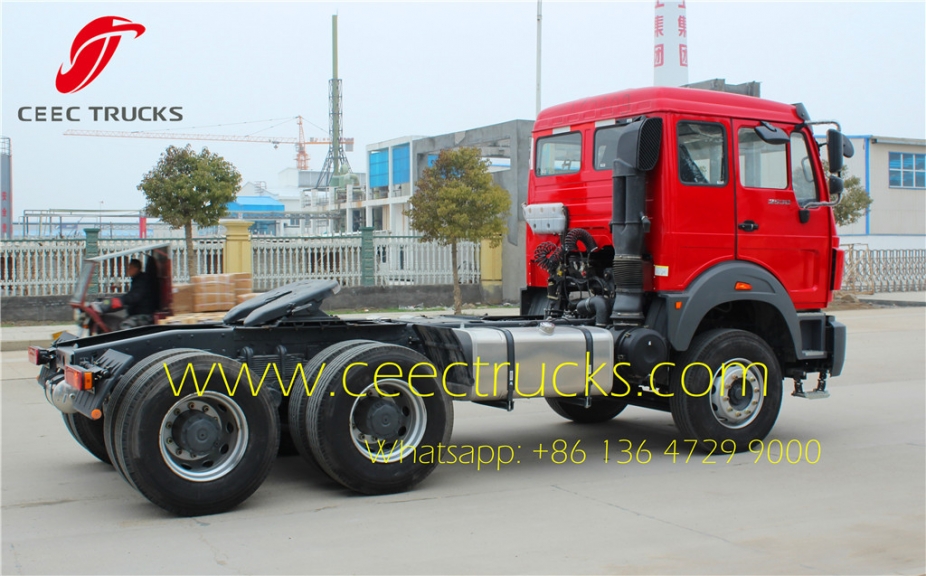

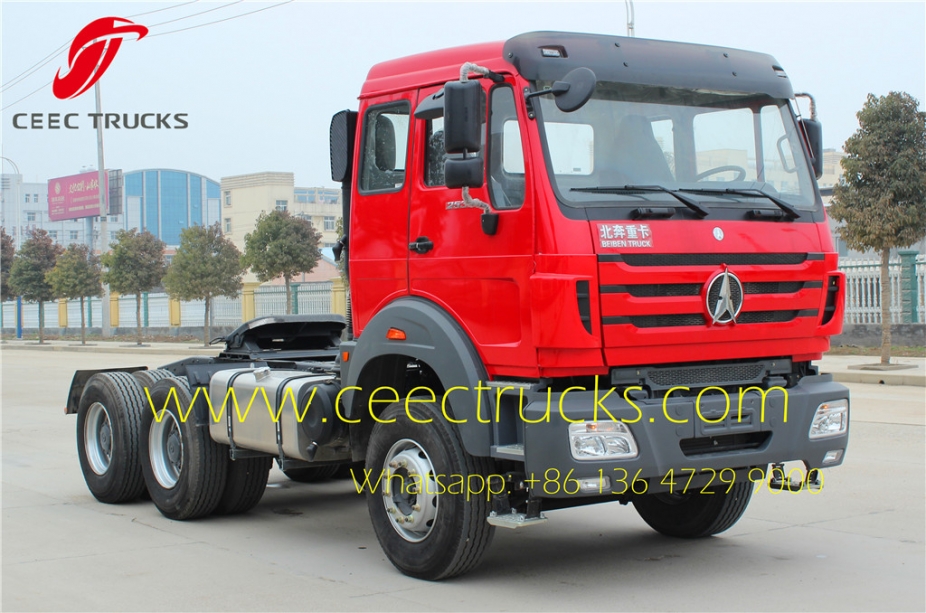

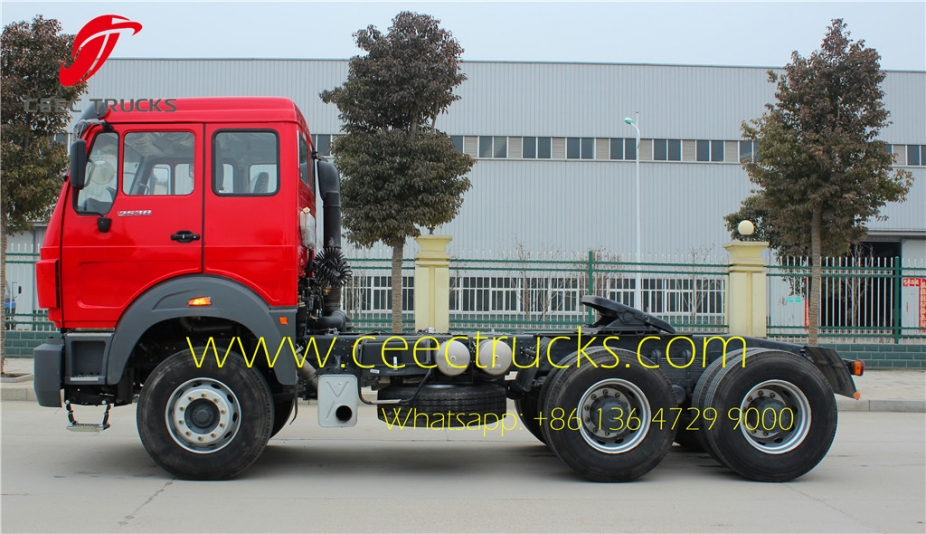

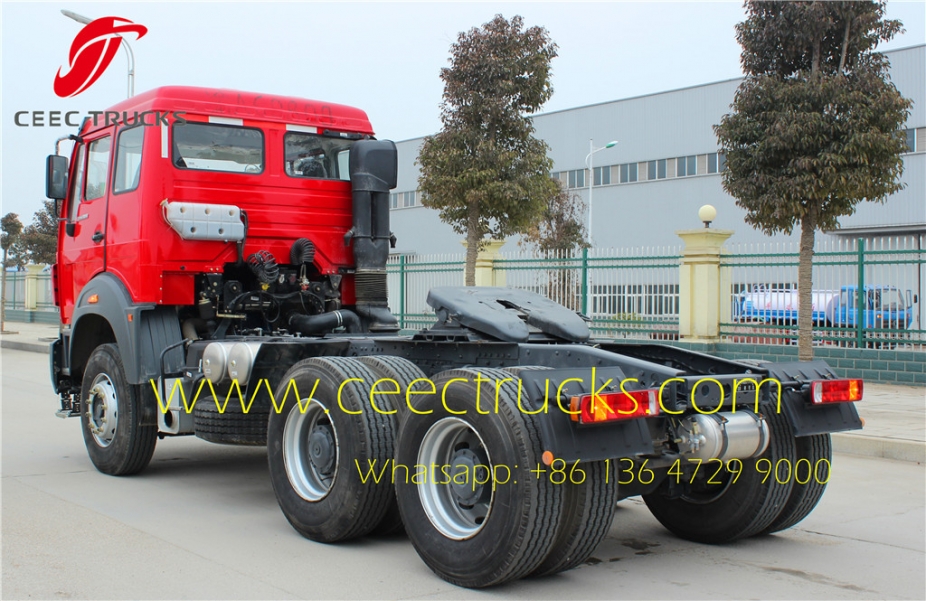

30 DaysNorth Benz 2542 Tractor Trucks
Functions:
★ Beiben 2542 heavy duty tractor truck, mining and quarries
★ Heavy duty material transportation
★ Dry bulk, building material, waste, wooden transportation
★ Agrivulture, Freight, Plant Hire, Military
Feature:
★ CEEC TRUCKS are authorized Beiben 2542 tractor trucks, north benz 6*4 prime movers supplier in China
★ All Beiben trucks share same features with Mercedes Benz tractors, like HL7, HD7 and VL4 axles used in the Actros and Atego models.
★ Same features and quality with Benz truck, but beiben 2542 towing trucks are 30% cheaper than it.
★ Beiben truck use WP10.420E32 EURO 3 model engine, which has emission 10 liters and HP can be up to 420PS.
★ FAST 12JS200T manual machanism transmission gearbox, 12 forward and 2 reverse manual
★ High quality guarantee, massive, durable, perfect performance and prolonged service life.
Parameters:
Similar Key Works: Beiben 2542 tractor truck, beiben 6*4 prime mover, north benz 2542 tractors camions, beiben 2642 towing truck, Benz 2542, 2546 tractor head, beiben 6*4 tractors

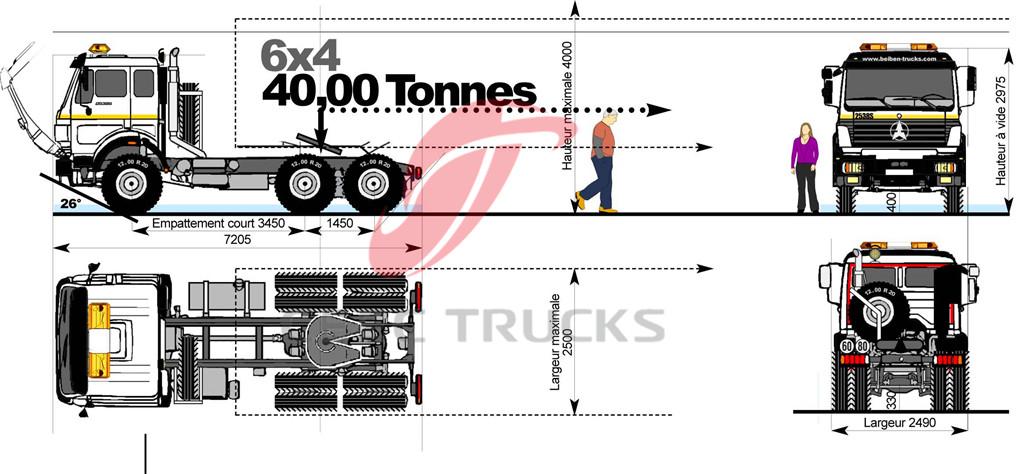

| 2542S /6×4/3450+1450/Long Cab/LHD | ||||||

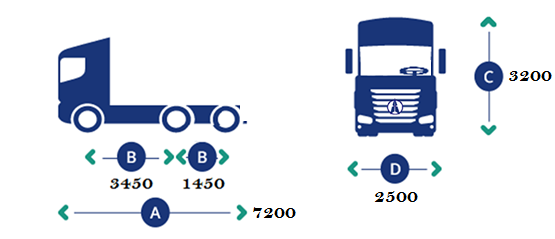

| Dimension | 7200*2500*3200mm | |||||
| Approaching angle/Departure angle | 26/64° | |||||
| Overhang(front/rear) | 1410/825mm | |||||
| Wheel base | 3450+1450mm | |||||
| Max speed | 90km/h | |||||
| Curb weight | 9200kg | |||||
| Max towing weight | 40000kg | |||||
Max loading on fifth wheel, Permitted(kg) | 15670kg | |||||
| Slope climbing capability | Max.40% | |||||
| Engine | Model | WP10.420E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection | ||||
| Displacement | 9.726L/Diesel | |||||
| Stroke | 126/130mm | |||||
| Max. power | 280/2200 (kw/rpm) | |||||
| Max.torque | 1460/1200-1600（Nm/rpm） | |||||
| Emission stantard | EuroⅢ | |||||
| Fuel tanker capacity | 400L | |||||
| Clutch | ∮430, Single dry frictional disc，Hydraulic boosting | |||||
| Gearbox | 12JS200T, mechanism,12forward gears,2 reverse gear, manual operated | |||||
| Gear ratio of gear box | 15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33 | |||||
| Suspension system | Front | Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs | ||||
| Rear | Non-free standing stablization spring, balance suspension system, 13pcs | |||||
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | ||||
| Assistant brake | Engine exhaust brake | |||||
| Park brake | Potential springs pressing on middle and rear wheels | |||||
| Steering system | TAS85,whole circulation in ball, hydraulic booster | |||||
| Frame | Fish belly shape, variable width, variable sections | |||||
Model | JOST ∮90 single direction | |||||
Height of fifth wheel(mm) (unload) | 1410 | |||||
Radius of front gap (mm) | 2300 | |||||
Radius of rear slew (mm) | 2600 | |||||
| Front axle (Mercedes Technology) | Double-shoe pneumatic brake, non-driving steering axle | |||||

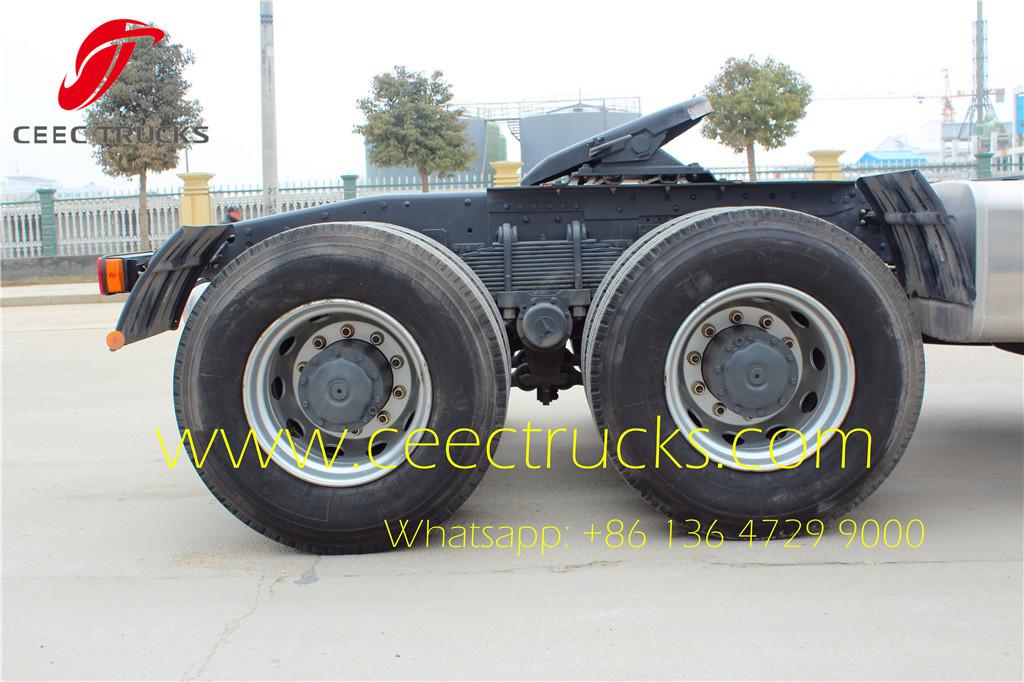

| Middle and Rear axle (Mercedes Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |||||
| Tyre | 12.00-R20 | |||||
| Electrical system | Battery | 2X12V/135Ah | ||||
| Generator | 28V-35A | |||||
| Starter | 5.4Kw/24V | |||||
| Cabin | NG80B Long-Flat roof cabin with single sleeper Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back seat for driver;Electric lifting window ; With inner A/C | |||||
Beiben 30T, 40T, 50T, 60T, 70T tractor truck on sale
|
|
|
|
|
| |
| Engine | |||||
| Model | |||||
| Rated Power | |||||
| Payload | |||||
| Drive Type |
Other beiben trucks display

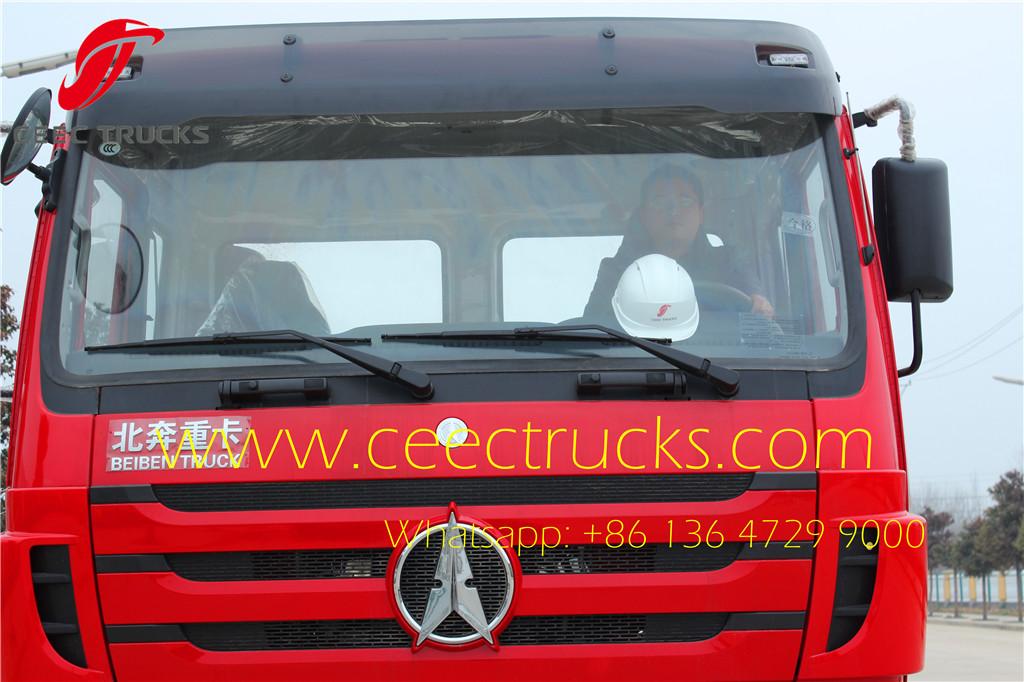

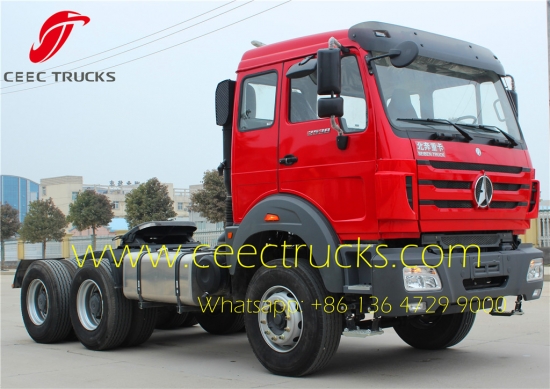

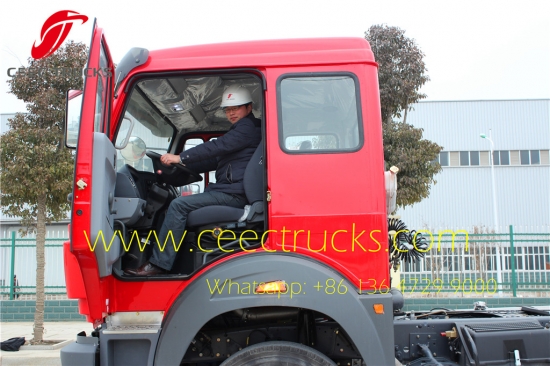

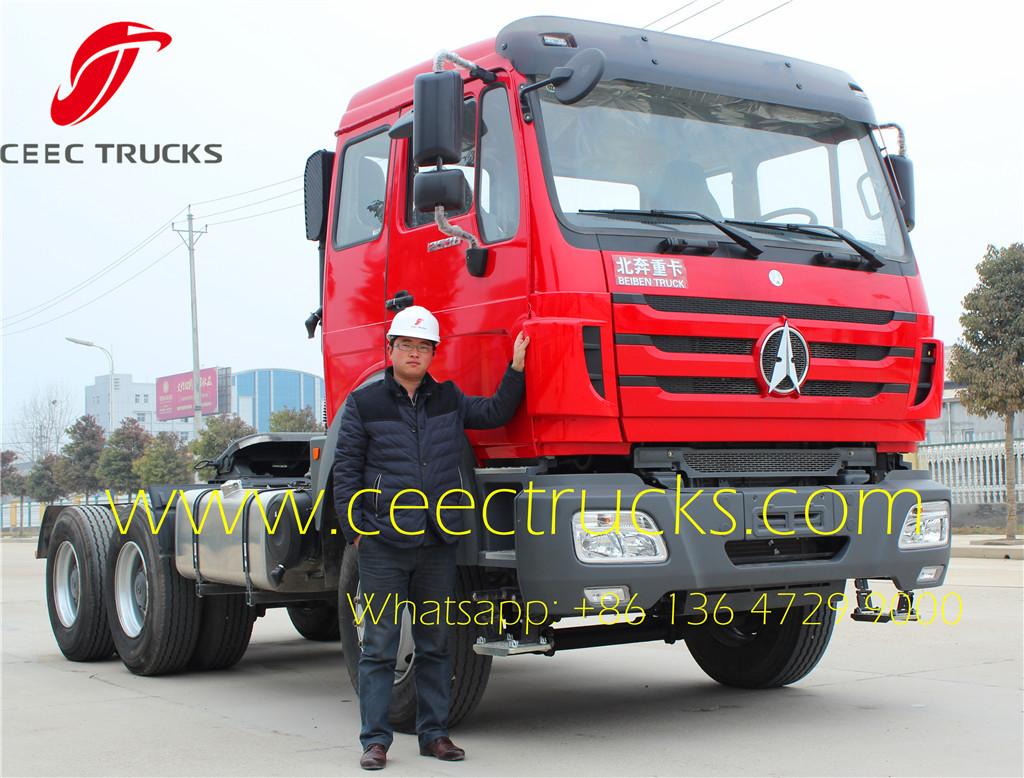

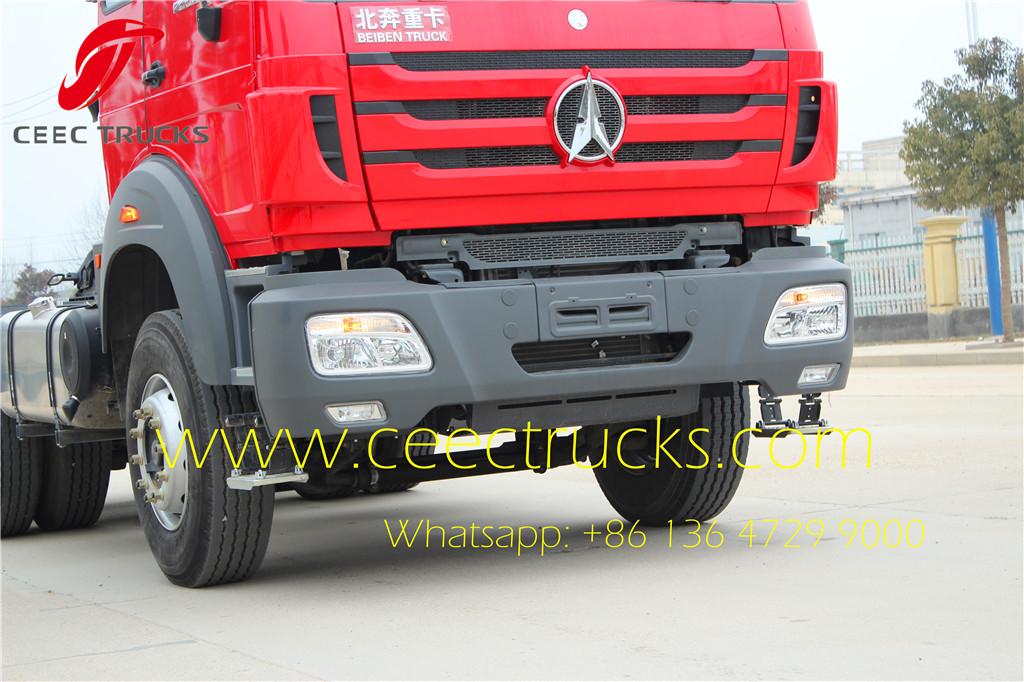

★ Beiben 2542 tractor trucks equipped with new NG80B cabin, which has attractive appearance
★ WEICHAI engine WP10.420E32, strongly 380ps, and FAST 12JS200T mechinical gearbox
★ Curb weight approx 9200kg and towing weight can be up to 70T, very strong performance
★ Specific heavy truck metallic framework and stressed-skin construction, processing security of same level of European automobiles
★ Beiben 2542 Tractor truck use European ECER29 safety and regulatory requirements, stamping molding of frame only once ensures girder strength
Congo Beiben 2542 NG80B Cabin Tractor Truck
