The Beiben 8×8 all-wheel-drive chassis features a fish-belly frame design based on German Mercedes-Benz technology, with a cross-sectional dimension of 317×70×8.5+7+8mm. It is equipped with a WP12.420E32 diesel engine (319Kw/420HP, 1750Nm torque) that meets the Euro III emission standards. The chassis boasts 8×8 all-wheel drive, high ground clearance (with approach/departure angles of 33°/20°), and an excellent suspension system, along with an LF200 transfer case and a 12JS200T transmission. It also comes with rich configurations such as a dual-layer air filter and large-capacity fuel tanks, and offers customized services, widely acclaimed by users.
交货时间:
60 Days工作能力:
40 tons发动机功率:
420HP/319Kw发动机类型:
WP12.420E32车轴驱动:
8x8,LHD齿轮箱:
FAST 12 forwards & 2 reverse,manual评论:

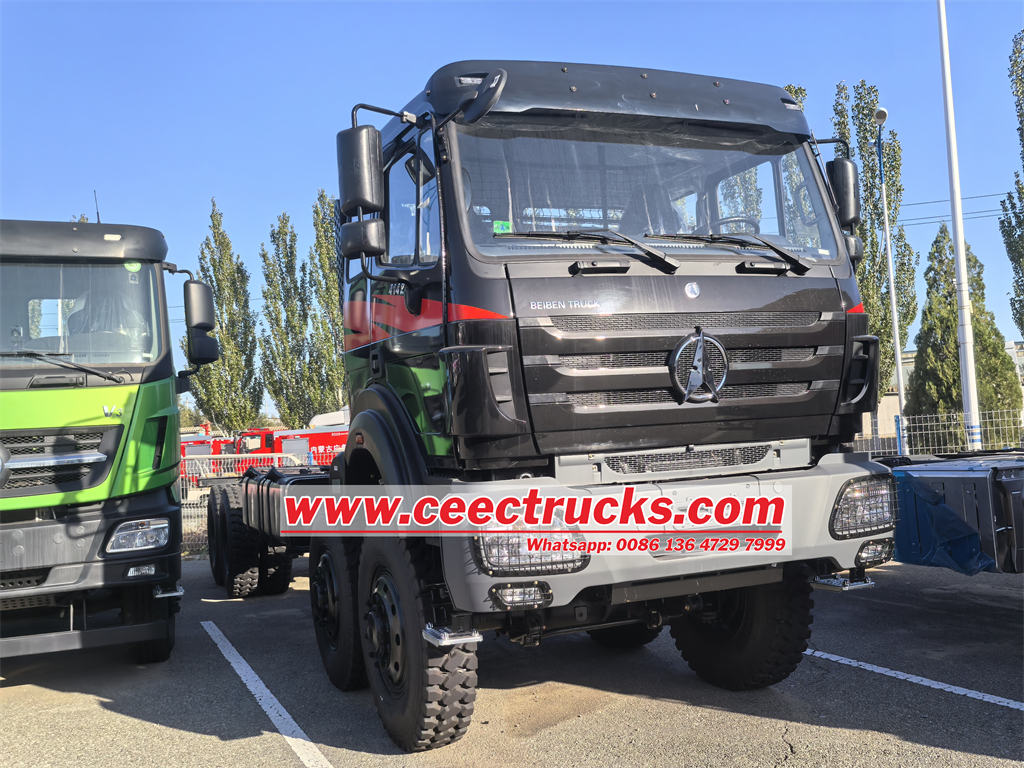

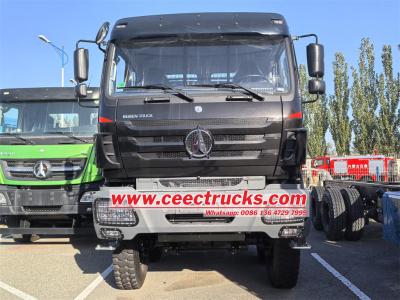

Beiben 8×8 all wheel drive chassisThe Beiben 8×8 all-wheel-drive chassis, designed specifically for complex environments, is a heavy-duty off-road transport platform that demonstrates extraordinary capabilities in multiple fields thanks to its exceptional passability, load-bearing capacity, and environmental adaptability. Equipped with the advanced WP12.420E32 diesel engine, which utilizes turbocharging and intercooling technologies, the Beiben 8×8 AWD truck chassis effectively enhances fuel economy and power performance. With a rated power of 319 kW (approximately 420 horsepower) and a maximum torque of 1,750 Nm, it ensures rapid acceleration and stable driving under heavy loads.
When confronted with diverse and challenging road conditions, the Beiben 8×8 all-wheel-drive chassis exhibits outstanding handling performance. Its approach angle and departure angle are 33 degrees and 20 degrees, respectively, complemented by a reasonable wheelbase design (1500+5050+1450 mm), allowing the vehicle to easily navigate steep hills, deep trenches, and other complex terrains. Additionally, the vehicle is equipped with advanced features such as a full hydraulic power steering system and a dual-circuit air braking system, further enhancing handling stability and safety. Whether traveling on smooth highways or rugged mountain roads, the Beiben 8×8 off-road chassis delivers exceptional handling performance.
Despite being a heavy-duty transport vehicle, the Beiben 8×8 truck also prioritizes driver comfort and convenience in its interior design. The cab features a long cabin with single-berth design, constructed with a steel frame covered by double-layer steel plates for safety, reliability, and excellent sound and heat insulation. The interior layout is both functional and aesthetically pleasing, with an integrated instrument panel and digital display system enabling the driver to monitor the vehicle's status at any time. The high-back shock-absorbing seat and adjustable steering wheel ensure comfort and convenience during long drives. Furthermore, the cab is equipped with comfort facilities such as an air conditioning system, as well as entertainment options like a radio, further enhancing the driving experience.
| Beiben 8×8 AWD truck chassis | ||
| Wheelbase(mm) | 1500+5050+1450 | |
| L*W*H | 12100X2700X3400 | |
| Curb weight(kg) | 10800 | |
| Front overhang/rear overhang (mm) | 1410/1940 | |
| Approach angle/Departure angle | 33/20 | |
| Max Speed:(Km/h) | ≤85 | |
| Engine | Model | WP12.420E32 |
| Type | water-cooled, four strokes, 6 cylinders straight in line, turbocharged | |
| Fuel type | Diesel | |
| Min rate of consuming fuel(g/(kw.h)) | 196g/kw.h | |
| Rated Power / rotating(kw/(r/min) | 319Kw(420HP)/2200rpm | |
| Emission | EURO 3 | |
| Maximum Torque / rotating speed (n.m/(r/min) | 1750Nm/1500-1800rpm | |
| Displacement(l) | 11.596 | |

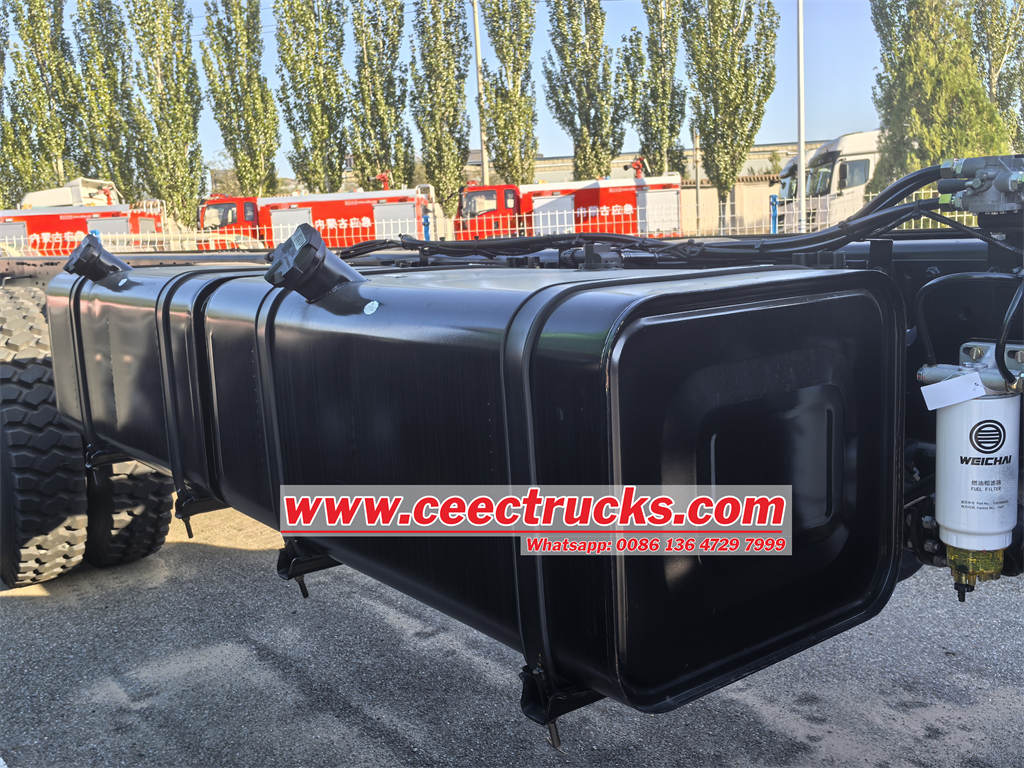

| Fuel tanker capacity(L) | 400L+400L Iron | |
| Transfer case | LF200 | |
| Clutch | Model | #430, Single dry frictional disc, Hydraulic boosting |
| Gearbox | Model | 12JS200T mechanical type, mechanical type, Based on Fuller Eaton technology, 12 Forward speed gear. |
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system |
| Assistant brake | Engine exhaust brake | |
| Park brake | Potential springs pressing on middle and rear wheels | |
| Steering system | Model | 8098 whole circulation in ball type, hydraulic boosting |
| Suspension System | Front Suspension | Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension,12/12 pcs springs. |

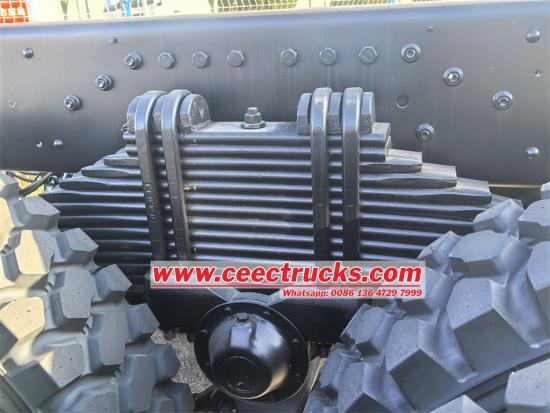

| Rear Suspension | Non-free standing stabilization spring, stabilization suspension,13 pcs springs | |

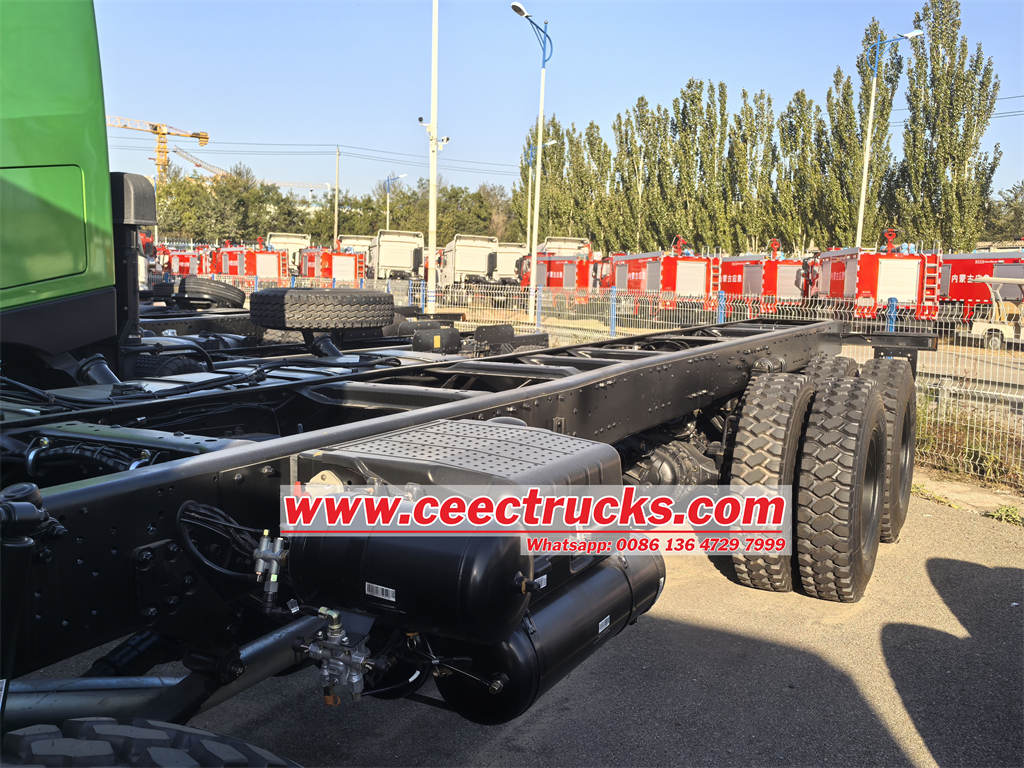

| Frame | Fish belly shape, variable width, variable sections, Based on Germany Benz Technology | |
| Cross section dimension of frame(mm) | 317×70×8.5+7+8mm | |

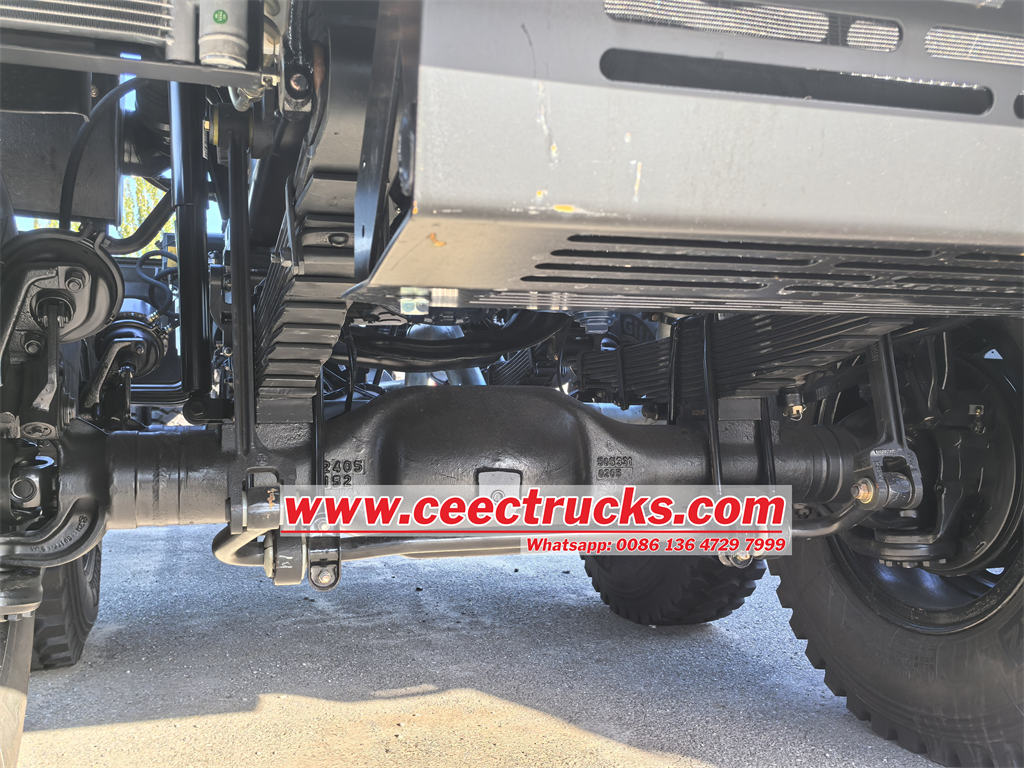

| Double Front axle (Mercedes Benz Technology) | Double-shoe pneumatic brake, 8 ton driving steering axle | |
| Middle and Rear axle (Mercedes Benz Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13tons double reduction driving axle, speed ratio5.263 | |

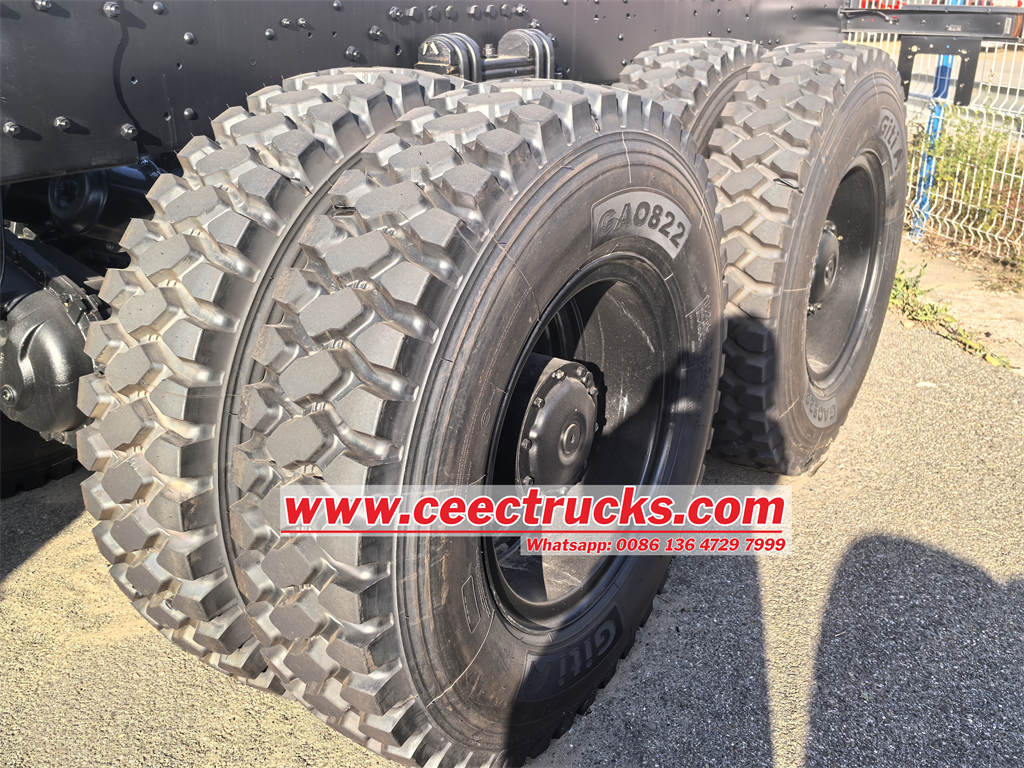

| Tire | 12.00R24 radial tire | |
| Electrical system | Battery | 2X12V/135Ah |
| Generator | 28V-70A | |
| Starter | 5.58Kw/24V | |

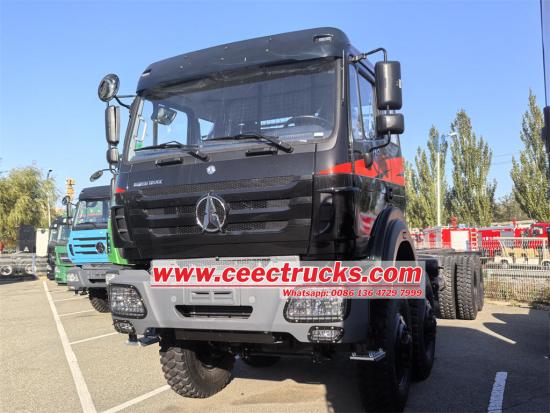

| Cab | NG80B | |
| Interior trimming: | ||
| Exterior trimming: | ||
| Other specifications | Two layer air filter | |
| Upper body | Can be customized according to customer's requirements | |
★ WEICHAI WP12.420E32 diesel engine, super powerful
★ Expert for exporting Beiben trucks over 10 years with good reputation
★ Mercedes Benz Technology
★ 12 months free fast moving spare parts
★ All English version owner's manual, for easy understanding
