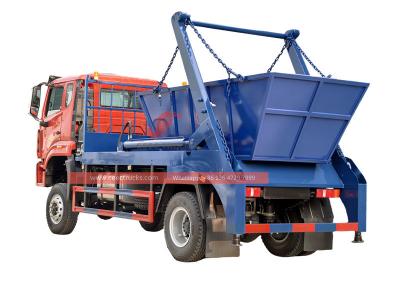

Howo off road 8CBM skip loader truck for sale

Howo越野翻斗装载车，适用于赞比亚

Howo翻斗式垃圾车解决方案融合了创新技术与现代设计，专为日常使用和坚固耐用而设计。由于翻斗式垃圾车重量轻，因此可以快速安全地运输大量货物。垃圾桶的装卸设计简便实用。

工作能力:
8CBM
尺寸（毫米）:
7900*2500*3350 mm
轴距（毫米）:
4600 mm
发动机功率:
220HP
发动机类型:
YC6J220-33
车轴驱动:
4x4, LHD
齿轮箱:
Fast 8-shift
评论:
RHD drive type avaiable

现在查询

这 Howo skip loader garbage truck solution combines innovative solutions with modern design. It's designed for everyday use and robust durability. Due to the low weight of the tipper loader, high payloads can be transported quickly and safely. The garbage container loading and unloading design is easy to use and practical. The Howo Swing Arm Garbage Truck is designed for innovative efficiency and meticulous attention to detail, achieving ultimate quality through intelligent and detailed solutions. This quality stems from state-of-the-art manufacturing methods and benefits from the use of high-strength materials. This means the tipper loader is extremely robust and has excellent corrosion protection. The high-quality C EEC trucks hydraulic system ensures precise telescopic boom movement, making operation more stable.

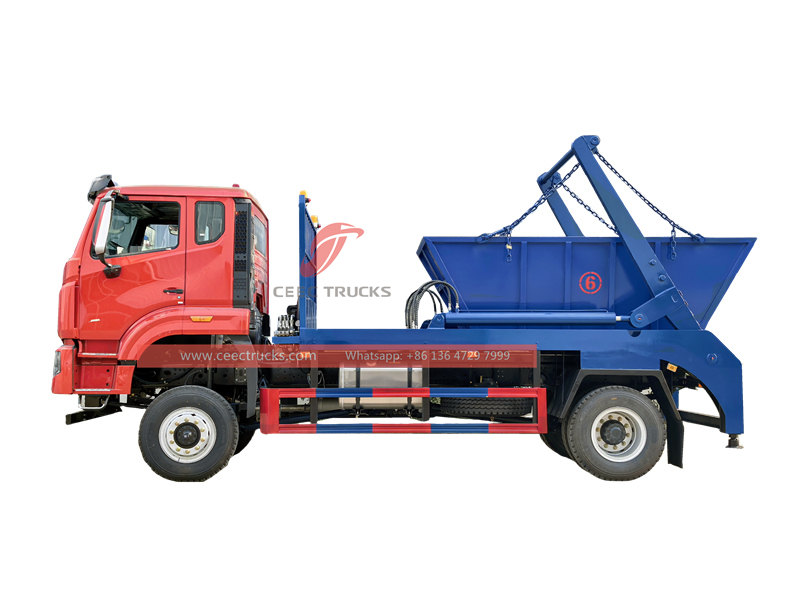

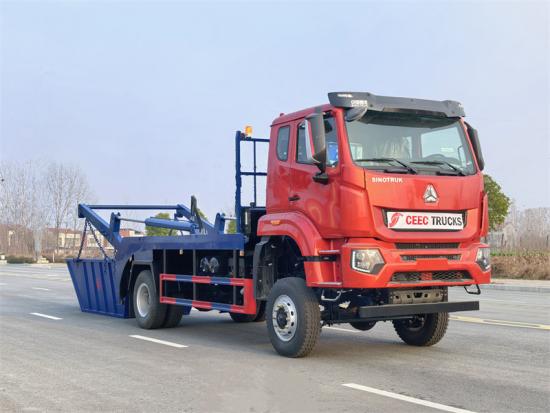

Howo 4x4 skip loader truck

* Howo off raod 8CBM skip loader truck

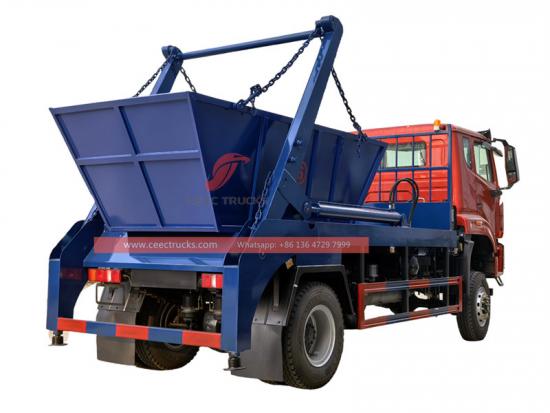

Howo all drive skip loader truck*

-----------------------------------------------------------------

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

✦ Product Introduction of Howo Skip Loader Truck « « «

Manufacturer: CEEC Trucks Group

Features:

1.Low fuel consumption and economy: YC 220HP engine + 8JS85TE 8-speed gearbox, excellent fuel economy.

2.Garbage Bin with different size options of waste recycling truck: 4cbm to 10cbm;

3.Hydraulic Control Loading&Unloading System;

4.Different shapes of waste recycling truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type;

5.High-tensile steel chains:imported hydraulic oil cylinder and sealing material;

6.Lifting oil cylinder:double oil cylinder under garbage box,so garbage box can be lifted and self-dumped;

7.Double rear landing leg controlled by hydraulic multi-way valve to stablise truck;

8.Best Choice for Garbage collection and transporation Inside City.

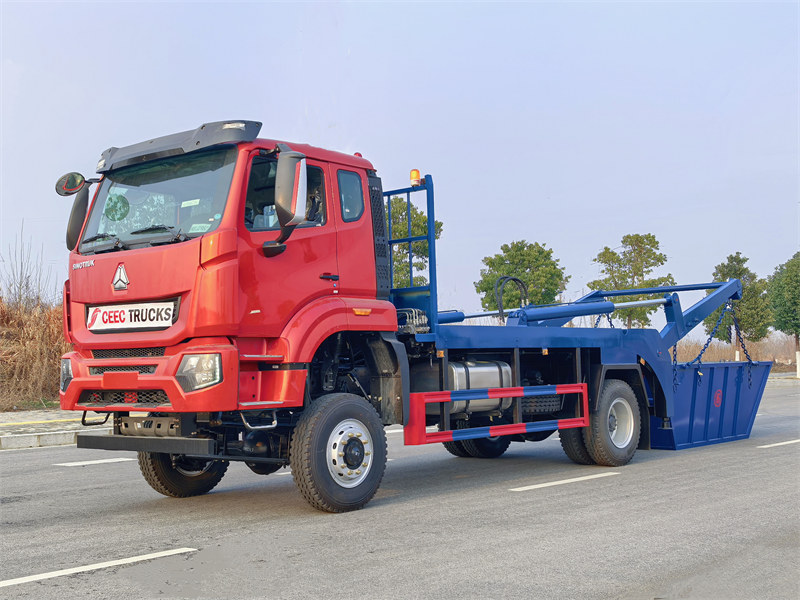

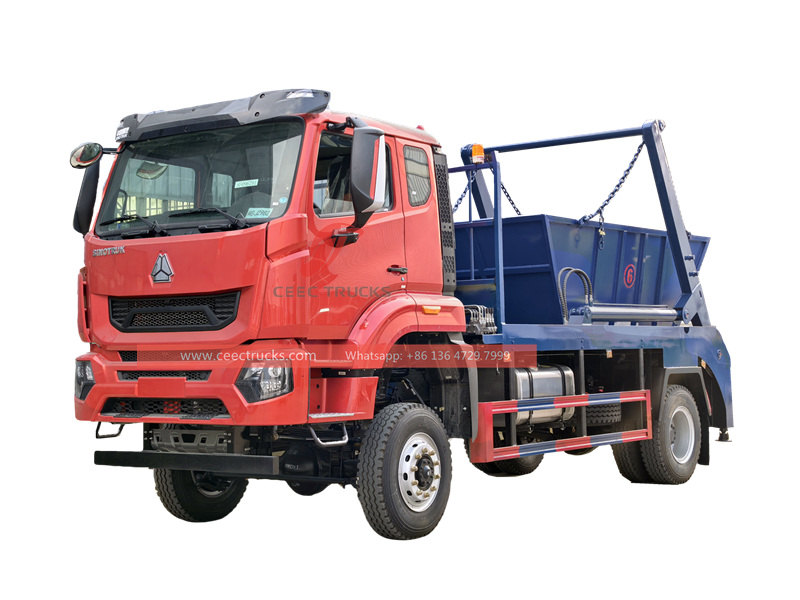

Howo 4x4 skip loader truck

✦ Product Parameter of Howo Skip Loader Truck « « «

HOWO Skip Loader Garbage Truck
General	Model	CEEC5180BLC
	Chassis Brand	SINOTRUK
	Wheelbase	4600mm
	Overall Dimension	Appro.790025003350 (mm)
	Max Axles Payload	Appro. 13000 (kg)
	Truck Tare Weight (kg)	Appro. 9500 (kg)
	Garbage Bucket Capacity	Appro. 8CBM
	Drive Type	4x4, Left Hand Drive with power assisted steering
	Max Speed	105 Km/h
Cab	Type	One row cab, forward control type, all welded steel cab of tilt type, rear mechanical cab suspension, adjustable driver seat
	No of Seats	2 persons and a sleeper bed, with safety belts
	Number of Doors	2
	Air Conditional	With air conditional
	Electric System	24V
	Audio System	FM/AM radio, CD/USB player
Engine	Brand	Yuchai
	Model	YC6J220-33
	Fuel Type	Diesel Fuel
	Emission Standard	Euro 3
	Type	Water-cooled four-stroke, direct injection, turbocharged & intercooled, High pressure common rail fuel system, cold start.
	Nos of Cylinder	4
	Cylinders Arrangement	In-line
	Max Output Power	220 hp
	Exhaust	6494 (ml)
	rated speed	2200 (rpm)
	Max torque/rotate speed	1100/1100 -1600 (N.m/rpm)
	Compression Ratio	4 : 1
	Bore x Stroke	126*130 mm
Fuel System	Fuel Tank Capacity	300 L
	Material	Steel fuel tank
	Filler Cap	Lockable
	Fuel Gauge	Pointer dial type
	Fuel Filter	With water separator device
Gear Box	Model	8JS85TE
	Type	Manual
	Forward Speeds	8
	Rear Speeds	2
	Max Input Torque	700-900 N.m
Clutch	Type	Single-plate dry diaphragm spring clutch
Bridge	NOs of Axle	2
	Front Alex	HF7 drum type
	Front axle load-bearing	7500 (kg)
	Rear Alex	ST16
	Rear axle load-bearing	16000 (kg)
Electric System	Voltage	24 V
Braking System	Full air brake system, split pneumatic circuit , parking spring brake acting on rear axles, exhaust brake
Tire	Type	10.00R20
Tire	Nos	Total 7 pieces, including one spare tire
Swing Arm Garbage Truck Upper Parts Specification
Garbage Bucket	Tank Capacity	Appro. 8CBM
	Material	Carbon steel Q235
	Body Floor	3 mm
	Side Plate	3 mm
Optional	Container material could be stainless steel. A sealed cover for the container. ** A truck with several containers.

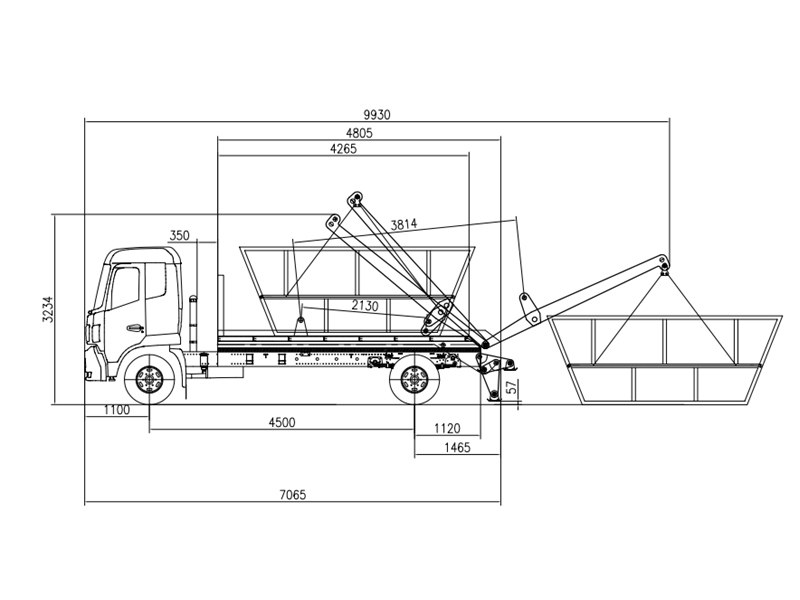

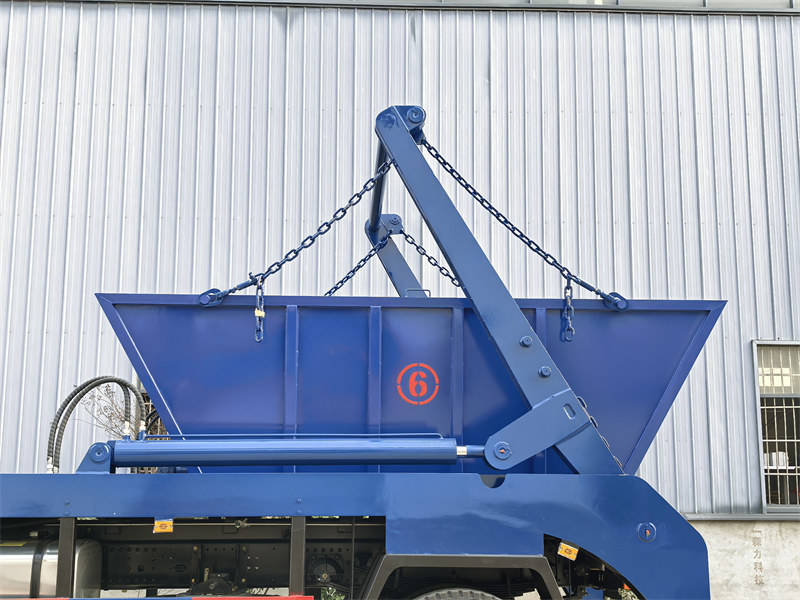

Howo skip loader truck

✦ Advantage of Howo Crane Truck « « «

1. Efficient power and controllability:

♦ Yuchai YC6J220-33 engine: 220 HP high torque output (850N·m@2200rpm), it is powerful and fuel-efficient, suitable for frequent start-stop garbage transportation operations.

♦ Full air brake system + exhaust brake: ensure the safety of heavy-load downhill and emergency braking, and reduce the risk of brake overheating.

2. Lightweight and high-load design:

♦ Subframe-free structure: By eliminating the dedicated subframe, the dead weight is reduced, the payload is increased, and the transportation economy is significantly optimized.

♦ High-strength material: The garbage hopper is made of Q235 carbon steel (optional stainless steel), which takes into account both lightweight and corrosion resistance and extends the service life.

3. Intelligent and user-friendly design:

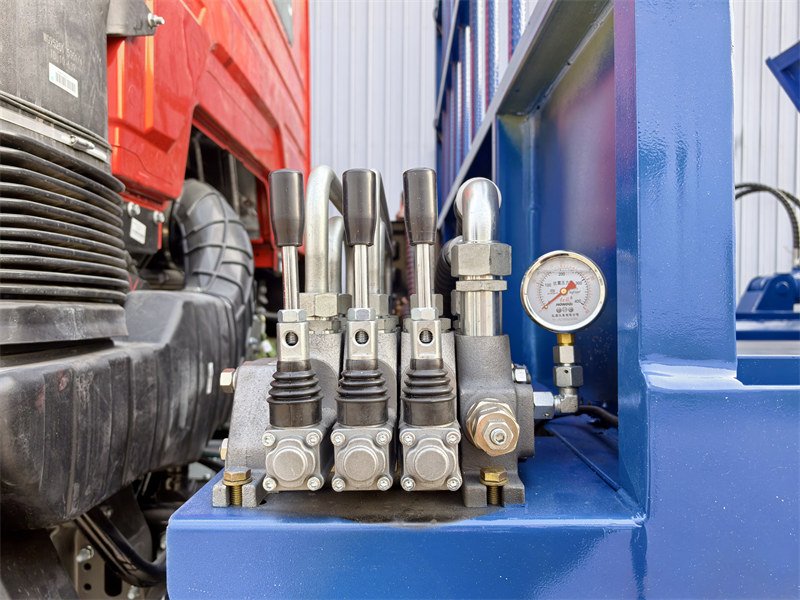

♦ Precise and efficient hydraulic system: C husheng brand hydraulic system supports synchronous operation of stabilizing jack and lifting arm, with low noise, fast response and improved operator comfort.

♦ Cab configuration: equipped with air conditioning, adjustable seat, 24V power supply and multimedia system to improve the driving experience of long-term operation.

4. Maintenance convenience:

♦ Modular design: key components (such as engine and gearbox) adopt mature brands (Yuchai, Sinotruk), with wide supply of accessories and low maintenance cost.

♦ Corrosion protection: The whole vehicle adopts electrophoretic coating process, and the garbage bucket can be made of stainless steel to adapt to humid or high-salt environments.

✦ Application of Howo Skip Loader Truck « « «

1. Highly Adaptable to Complex Terrain and Harsh Environments

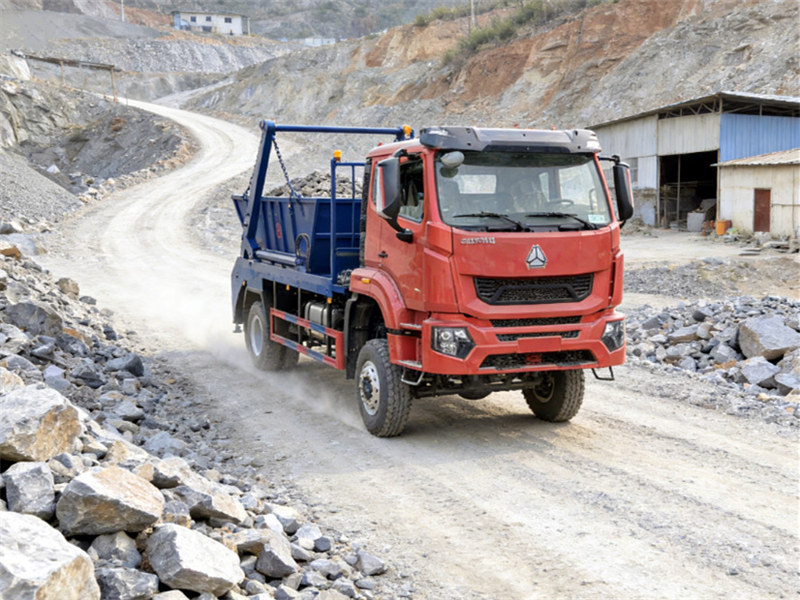

♦ Off Road System: Equipped with all-wheel drive and a reinforced chassis, it boasts exceptional passability and stability on steep slopes, muddy roads, potholes, and other unpaved surfaces in mining areas, reducing the risk of getting stuck and ensuring continuous transportation.

♦ Environmental Adaptability: The vehicle body structure and key components (such as the hydraulic system and suspension) are reinforced for mining environments with dust, high and low temperatures, and corrosion, ensuring reliable operation under extreme conditions.

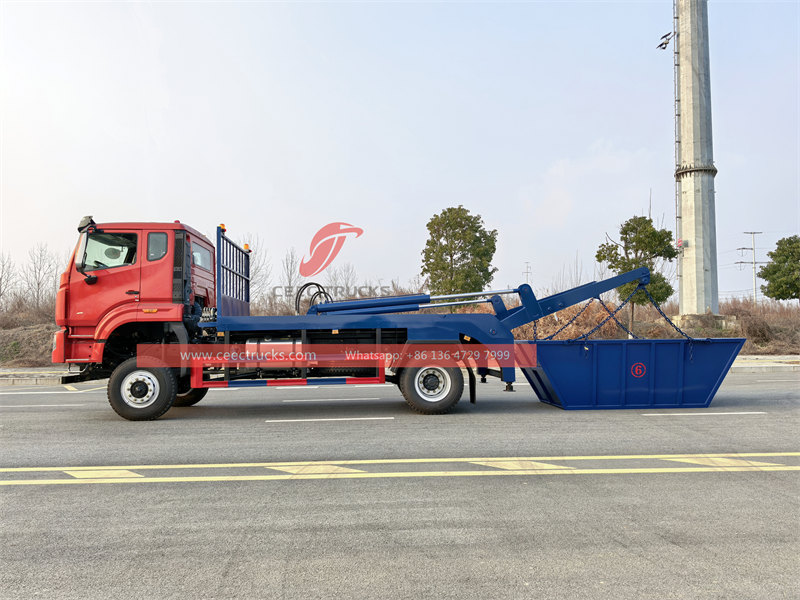

Howo off road skip loader truck

2. Flexible Integrated Loading, Unloading, and Transportation Operations

♦ Swing-Arm Self-Loading and Unloading Design: Utilizing a hydraulic swing-arm mechanism, it can autonomously grab, lift, dump, and reset standard mining waste containers without the need for additional lifting equipment, significantly reducing labor and time costs.

♦ High Turnover Capacity: Suitable for waste collection at dispersed mining sites, enabling a closed-loop operation of "collection-transportation-dumping" with a single machine, improving the efficiency of solid waste treatment in mining areas and reducing transportation interruption time.

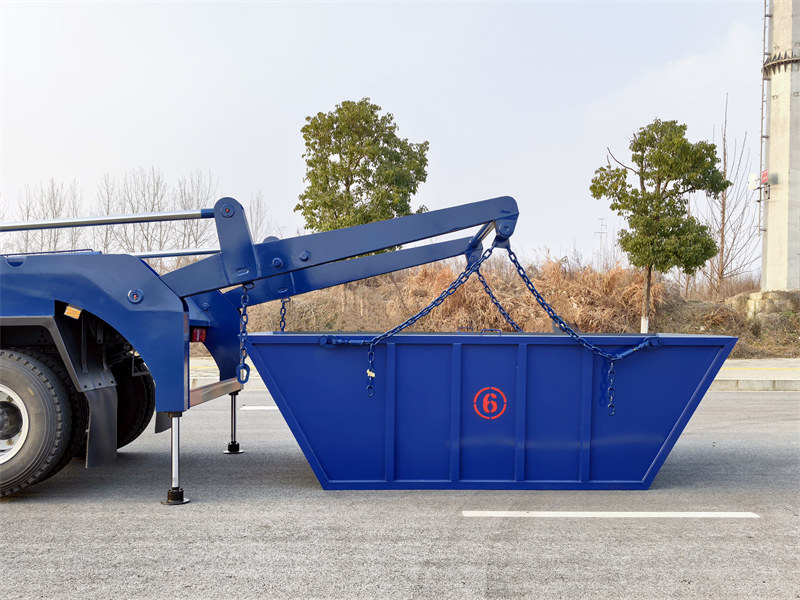

Howo off road skip loader truck
