HOWO TX 20000L 肯尼亚洒水器

豪沃 6 x 4 water tanker is equipped with a WP1 2S40 0E 201 inline 6 cylinder, 4 stroke engine featuring supercharged, intercooled, and water-cooled technology. It delivers 400 HP and a maximum torque of 1 3 50 Nm, available at 1 6 00 rpm and rated at 1 8 00 rpm, ensuring the Howo heavy water tanker's powerful power for starting and climbing. The Howo cabin features a one and a half row design with two seats and a sleeper. Equipped with A/C and radio, it provides a comfortable driving environment while also supporting long-distance water transport missions.

工作能力:
20000L
尺寸（毫米）:
10300*2580*3250 mm
轴距（毫米）:
4500+1370 mm
发动机功率:
400HP
发动机类型:
WEICHAI WP12S400E201
车轴驱动:
6x6
齿轮箱:
Sinotruk HW19710 10-speed,manual
评论:
Payload capacity can be customized

现在查询

这 Howo 6 x 4 water tanker is equipped with a WP1 2S40 0E 201 inline 6 cylinder, 4 stroke engine featuring supercharged, intercooled, and water-cooled technology. It delivers 400 HP and a maximum torque of 1 3 50 Nm, available at 1 6 00 rpm and rated at 1 8 00 rpm, ensuring the Howo heavy water tanker's powerful power for starting and climbing. The Howo cabin features a one and a half row design with two seats and a sleeper. Equipped with A/C and radio, it provides a comfortable driving environment while also supporting long-distance water transport missions.

With a large water tank and high-quality materials, the Howo water sprinkler truck boasts a tank capacity of over 20 ,000 liters, meeting the needs of large scale water spraying operations, reducing frequent refills and improving operational efficiency. The water tank is made of high quality carbon steel (Q235) and is made into an oval-shaped tank body. It has the advantages of high strength and corrosion resistance, ensuring the service life of the water tank.

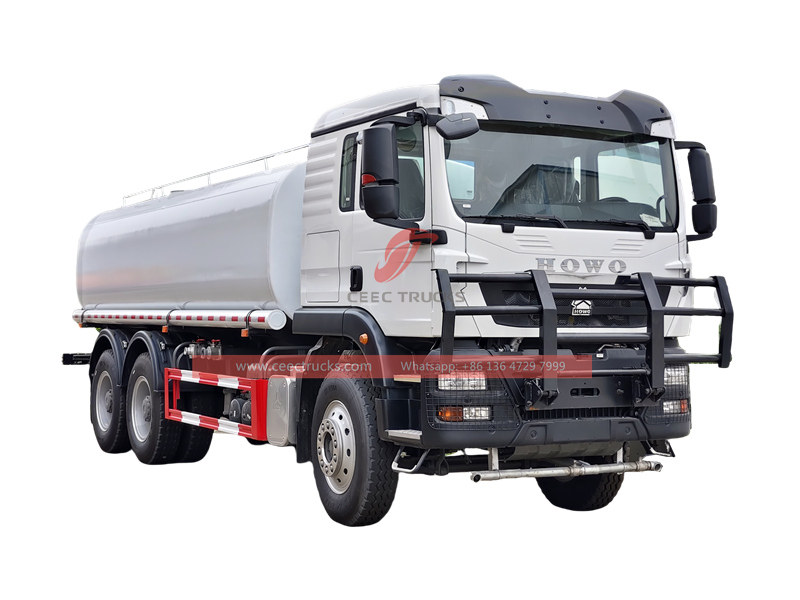

HOWO 10wheeler Water Sprinkler

* Howo 6x4 heavy water tank truck

Howo 10wheeler 20000L water truck*

-----------------------------------------------------------------

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

✦ Product Introduction of Howo Water Tank Truck « « «

Manufacturer: CEEC TRUCKS Group

Product Features

★ Built on HOWO 6WD chassis, with 400HP powerful diesel engine and HW19710 10-speed gearbox.

★ Equppied with 12.00R20 wide tires, which are suitable for harsh road conditions.

★ The tank body is made of high quality carbon steel, with volume up to 18000 liters.

★ Equippied with China top brand water pump with large flow rate.

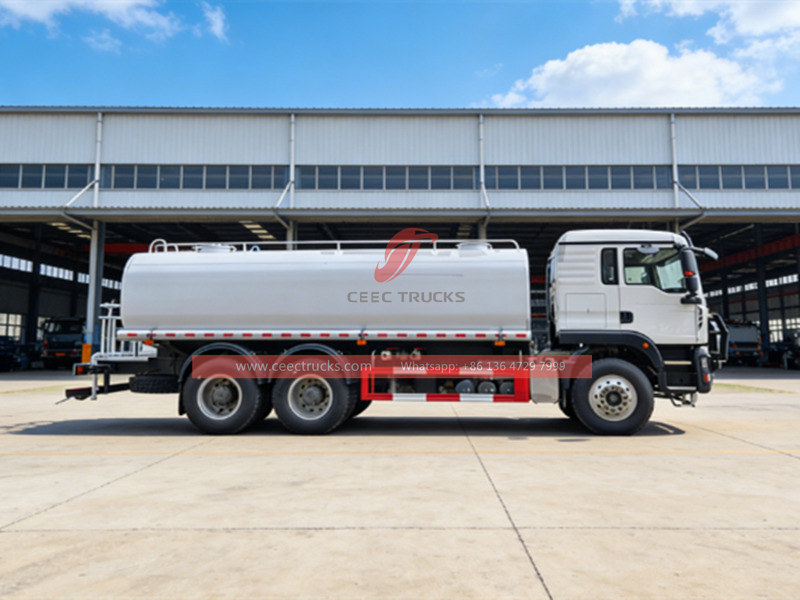

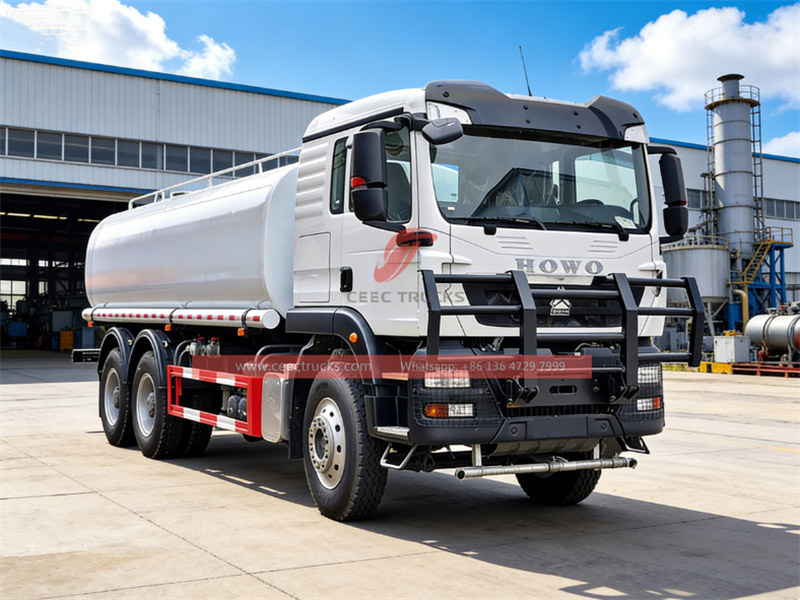

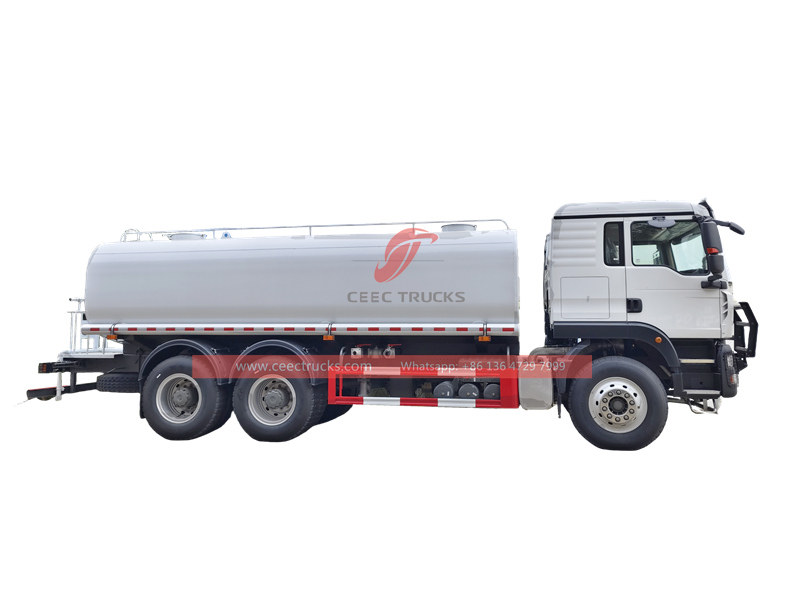

Howo heavy 20000L water tank truck

✦ Product Parameter of Howo Water Bowser Truck « « «

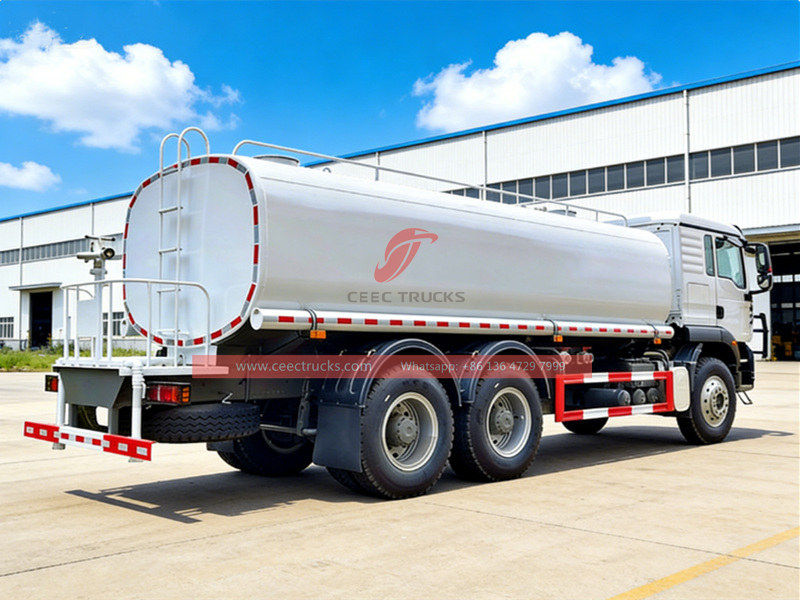

Howo heavy 20000L water tanker
Main parameter	Overall dimension(LxWxH)		103 00* 2 5 8 0*3 25 0mm
	W heel base(mm)		4500+1370 mm
	Driving Type		6 × 6 ,left hand drive
	Color		White,blue, green, color can choose
	Front/rear overhang		1 5 35/2215
	Max speed		10 0 km/h
Weight in KGS	GVW		25 000 kg
	Curb weight		11500 kg
	Loading capacity		20000L
	Front axles loading capacity		7 .5T
	Rear axles loading capacity		1 6 T *2
Engine	Engine model		WP12S400E201
	Engine type		Inline 4 -cylinder 6 -stroke, supercharged, intercooled, water-cooled
	Horsepower		400 HP
	Max. output (kw)		294 Kw
	Rated speed		16 00rpm
	Maximum Torque		1550N.m
	Displacement(L)		9 . 89 L
	Emission standard		Euro 3
Transmission	HW19710 ， 10 forward ,2 reserve
Tire	12.00R20 standard tire, 12 tires+1 spare tire
Brake	Air brake
Steering	Power steering
Body	C apacity		20000L
	S tructure	TANK MATERAIL	6 mm,Q 235 stee
		Pipe	Galvanized pipe
		Discharge nozzle	SS,at side bottom of tank,quick coupling
		Discharge nozzle	Stainless steel faucet （ Option)
Water pump	Model		WEILONG 80QZF-60/90S pump
	Flow rate(L/m):		60m3/h
	Head of delivery(m)		90m
	Self-priming function(min/4m)		1.5
	Efficiency(%)		95%
	Related rotate speed(r/min)		1180
	Matched power(kw)		22
Water sprinkler system	Front sprinkler jet		14m
	Rear sprinkler jet		13m
	Rear sprinkler nozzle range		12m
	Water cannon range		45m
	Water time		＞ 5 minutes
	Working condition		Flow≥ 60 L/ m , 1 .55Mpa
	Max working pressure		≥0.9Mpa

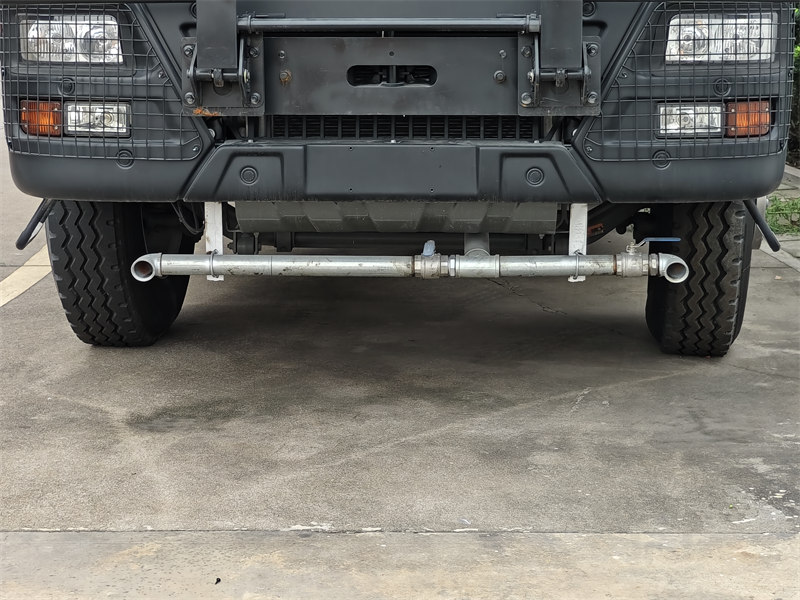

Front Spray

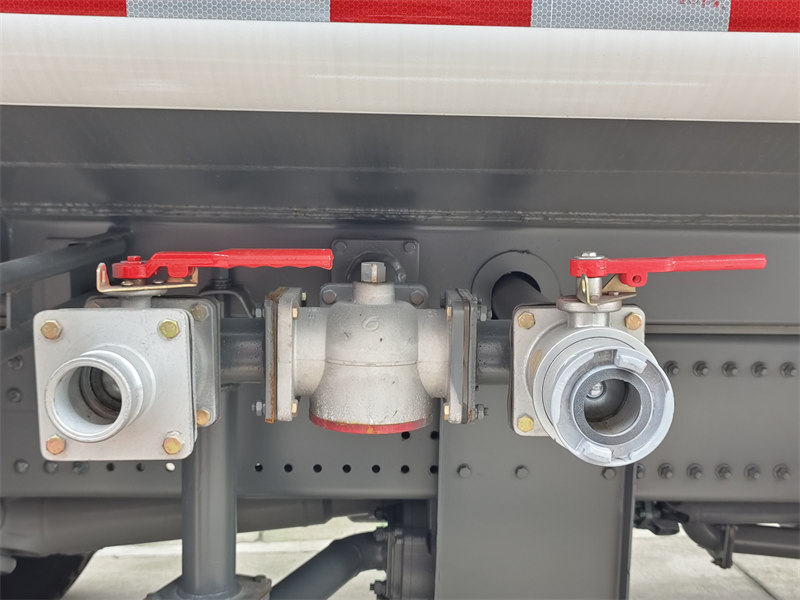

Pump In and Out

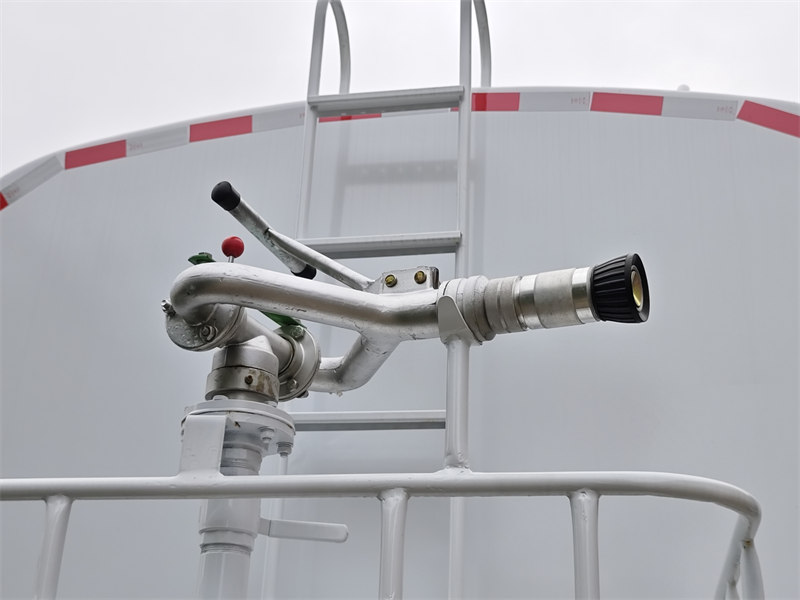

Water Cannon

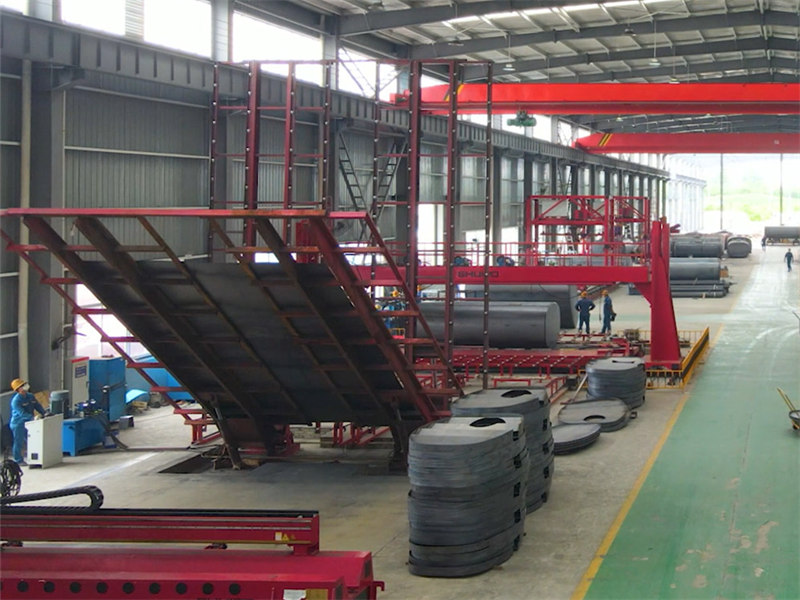

✦ Production Advantage of Howo Water Tanker « « «

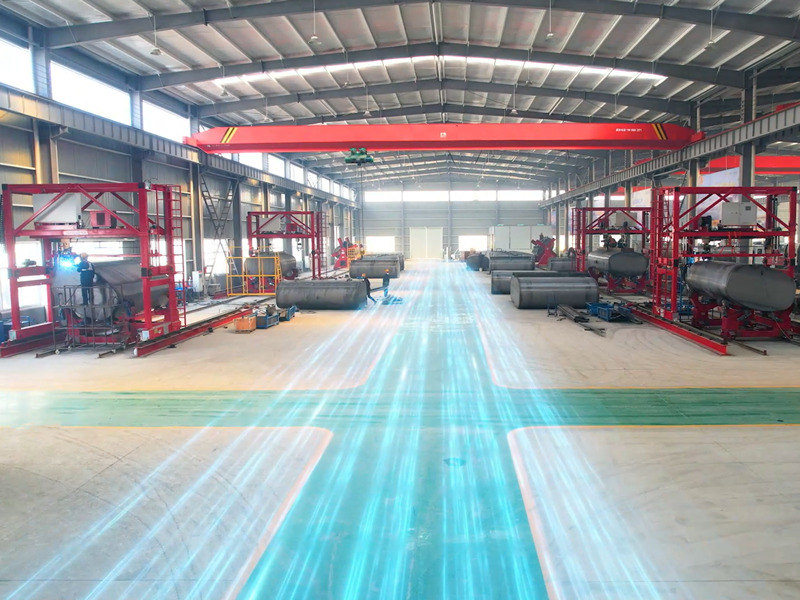

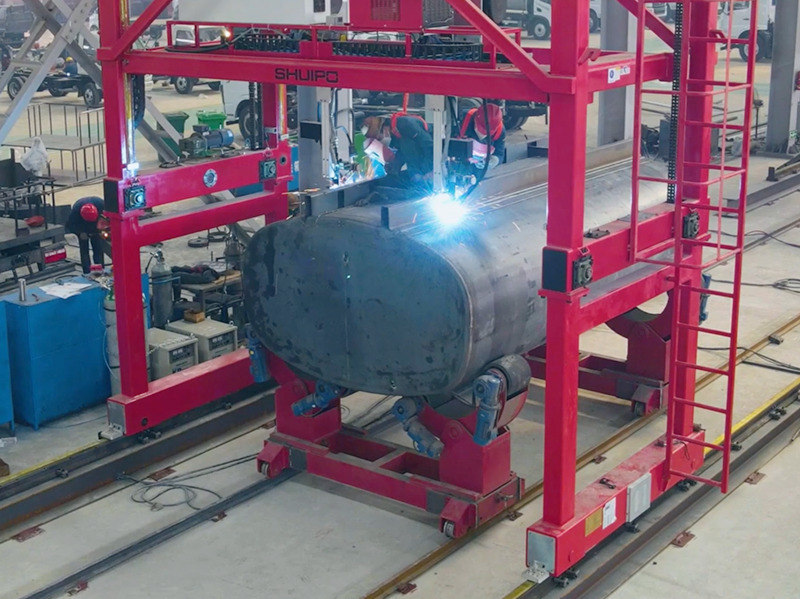

♦ The production line utilizes cutting-edge robotic automated welding and laser precision cutting.

♦ This ensures extremely high assembly accuracy and consistency, enabling customized customization.

♦ For 20 CBM tanks, high-strength, wear-resistant steel plates are used, utilizing CNC rolling and one-step spinning technology.

♦ This ensures uniform roundness and optimal stress distribution within the tank, eliminating dead corners.

♦ An advanced internal wave-shaped anti-wave plate design enhances structural strength while effectively reducing impact during liquid transportation.

✦ Technical Advatage of Howo Water Bowser Truck « « «

♦ Equipped with the Weichai 400HP engine, it forms a golden powertrain with an HW1910 transmission and a low-ratio drive axle.

♦ It features an 6 x 4 drive system, high-strength frame materials, and a multi-leaf spring reinforced suspension system.

♦ The dual front axle steering design ensures exceptional load-bearing capacity while enhancing steering flexibility.

♦ The water pump, a renowned Chinese brand, boasts high flow, high head, and long service life, and is self-priming and self-discharging.

♦ It features front-end flushing, side spraying, and a rear sprinkler—all in one.

♦ The high-pressure water canon rotates 360 degrees and can be adjusted to a columnar configuration for maximum range.

✦ Pump System of Howo Water Bowser Truck « « «

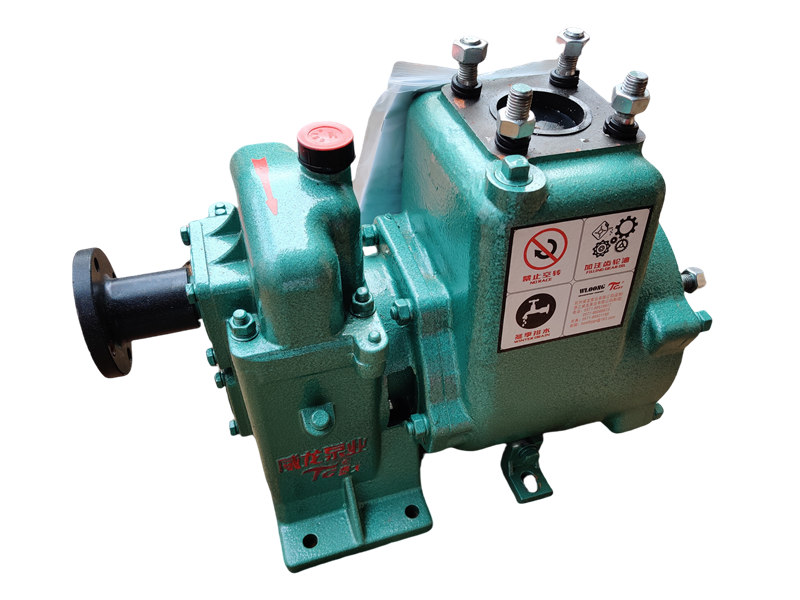

Water pump

Howo water tank truck

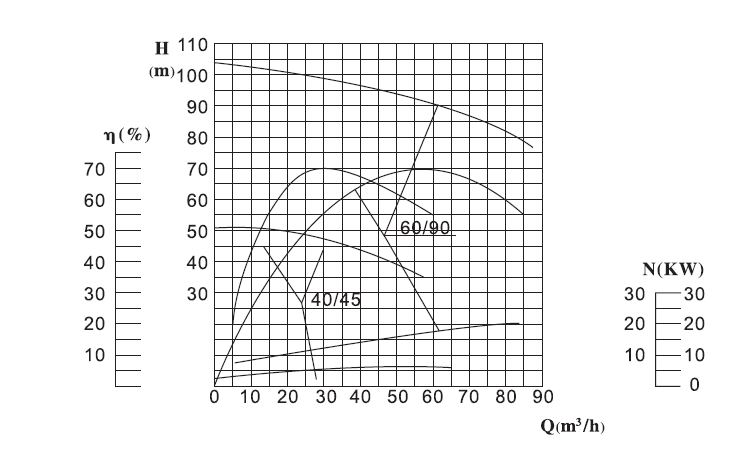

Specifications for common used water pump

Model	Flow rate (m³/h)	Head (m)	Speed (r/min)	Shaft power (KW)	NPSHr (m)	Self-priming time (min/4m)	Efficiency (%)
80QZBF-60/90N(S)	60	90	1180	22.5	4.5	1.5	70
65QZ-40/45N(S)	40	45	1450	9.25	4.5	1.5	72
65QZ-50/50N	50	50	1180	10.5	4.5	1.5	70
65QZBF-50/110N(S)	50	110	1450	24	-	-	70

✦ Application of Howo Water Bowser Truck « « «

♦ This Howo water tanker perfectly meets the water supply and sprinkler needs of urban construction, road maintenance, and landscaping irrigation.

♦ The large capacity water tank and high lift water cannon allow it to quickly transform into a "fire truck" in the event of an initial fire, reaching the scene and controlling the blaze as quickly as possible.

♦ All wheel drive system, can overcome various bad road.It can be used for drought relief in farmland, emergency water supply.

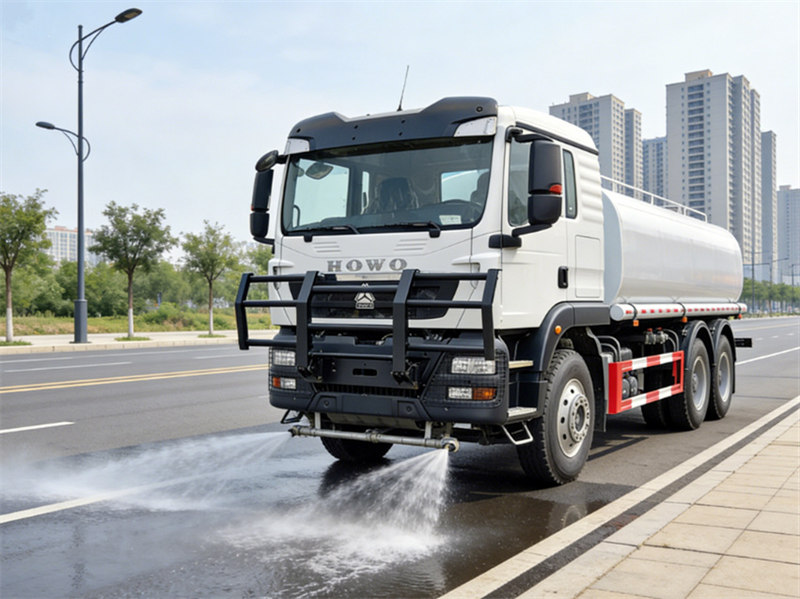

Howo heavy water tank truck

Products--100% Customized Level One!

Transportation--100% Safety, Convenience, Efficient!

Services--7days + 24hours Safetify Service!

1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasionalble price

3.we can offer your a reliable after-sell service

4.we have skilled professinal design team

5. promptly delivery. any order is welcome.

CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.

★ Weichai WP12S400E201 Euro 2 engine, super powerful

★ SINOTRUK HW19710 Manual 10-shift mechanical transmission gearbox

★ 12 months fast moving spare parts for FREE

★ Authorized HOWO 20CBM water tank truck

★ Training service for Howo 6x4 water sprinkler truck

HOWO 10wheeler Water Sprinkler

中国专业的洒水车供应商和出口商，我们供应高质量的洒水车。 water tank truck. We can ensure the fast delivery time and 12 months guarantee for our water sprinkler truck. Our water tank truck are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
