Howo TX 消防车配备干粉

[if gte mso 9]>1111MicrosoftInternetExplorer402DocumentNotSpecified7.8磅Normal0 > > >

这是一辆干粉氮气消防车，建造于德克萨斯州豪沃底盘。它配备了强大的潍柴340马力发动机排量为9.839升。它采用了一种 6 X 4 驱动模式，并配备 1 0 变速箱为-速变速箱。最高速度可达9速。 5 速度为公里/小时，能够适应各种复杂的路况。在消防系统方面，该车辆配备了…… 700公斤碳钢干粉储罐和 6个单位 80升氮气瓶，设计压力为15MPa。

工作能力:
4000L water+2000L foam+500kg dry
尺寸（毫米）:
10300*2670*3550 mm
轴距（毫米）:
4350+1350 mm
发动机功率:
340HP
发动机类型:
WP10.340E60
车轴驱动:
6x4,LHD
齿轮箱:
HW19710 gearbox,10 forward and 2 reverse
评论:
High-strength aluminum alloy or titanium alloy frames

现在查询

[if gte mso 9]>1111MicrosoftInternetExplorer402DocumentNotSpecified7.8磅Normal0 > > >

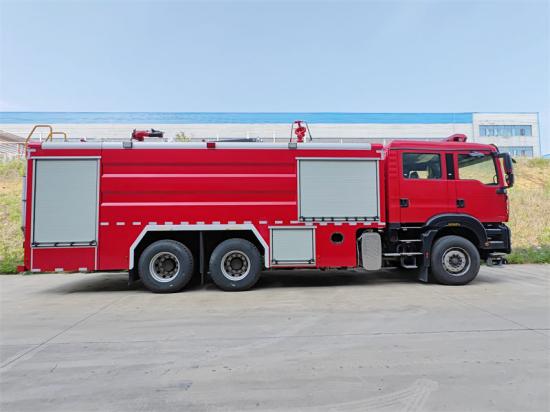

This is a dry powder fire truck built on Howo TX Chassis. It is equipped with a powerful Weichai 340HP engine with a displacement of 9.839L. It adopts a 6 X 4 drive mode and is equipped with a 1 0 变速箱为-速变速箱。最高速度可达9速。 5 速度为公里/小时，能够适应各种复杂的路况。在消防系统方面，该车辆配备了…… 700公斤碳钢干粉储罐和 6个单位 80升氮气瓶，设计压力为15MPa。

消防泵由动力输出轴（PTO）驱动，压力范围为1.6-2.5兆帕，流量为80-120公斤/秒。消防炮喷射速度为60-100公斤/秒，射程为40-60米，能够有效应对各种火灾情况。豪沃消防车它还配备了一整套标准消防救援设备，如铁锹、撬棍、斧头和切割设备，梯子和探照灯为可选设备。

[if gte mso 9]>1111MicrosoftInternetExplorer402DocumentNotSpecified7.8磅Normal0 > > >

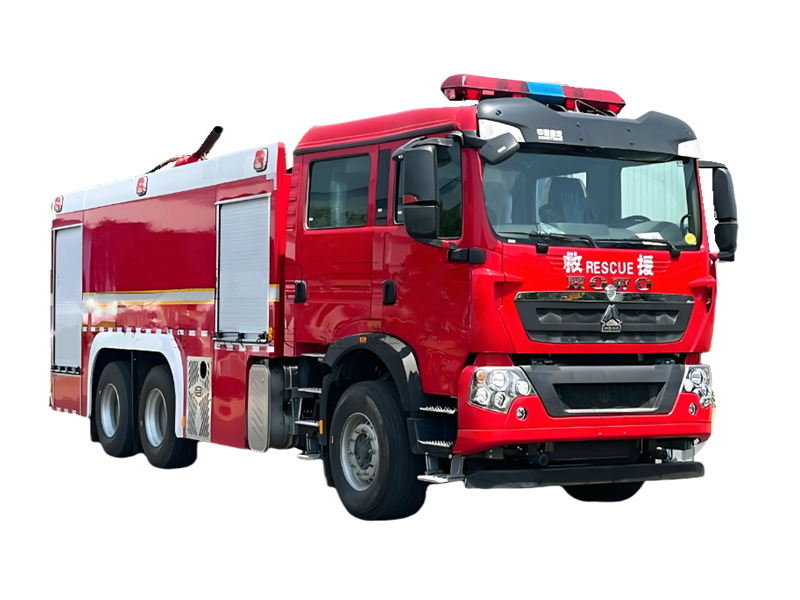

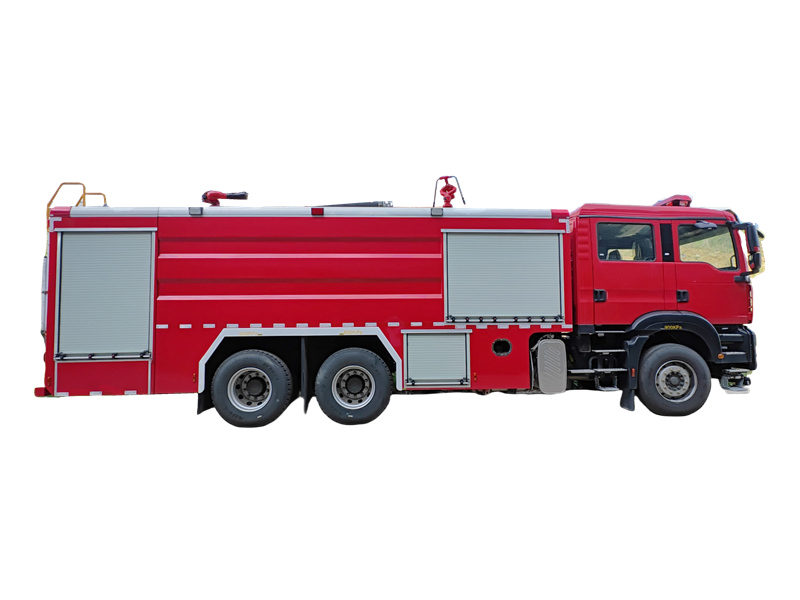

Howo heavy fire dry powder truck

* Howo heavy fire water cannon riot truck

Howo heavy fire fighting truck*

-----------------------------------------------------------------

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ. Product Defination and Introduction:

Howo heavy fire dry powder truck

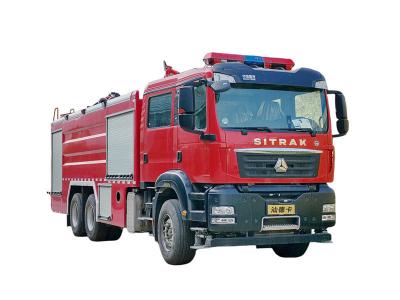

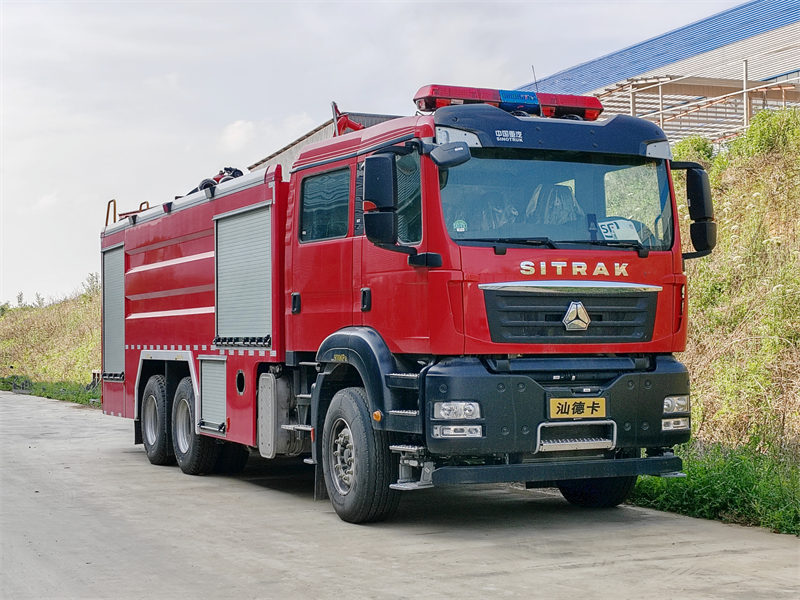

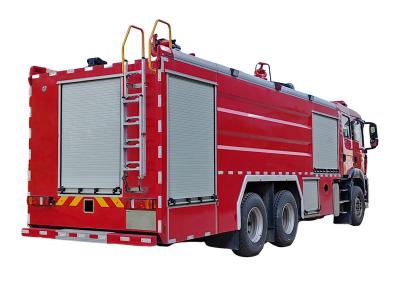

Howo 6x4 heavy dry powder fire truck
General	Vehicle Brand	CEEC Trucks Group
	Chassis Brand	Howo
	Overall Dimension	103 0026703 55 0mm
	GWW/ Kerb Weight	25 ,000kg/1 1 ,820kg
Cab	Cab Capacity	2+4 persons allowed
	Air Conditioner	air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	Weichai engine , WP10.340E32
	Power	3 4 0HP(2 57 kw)
	Displacement	9.839L
	Emission Standard	Euro 3
Chassis	DriveType	6 X 4 ,left hand drive
	Transmission	HW 1 0 speed forward, 2 reverse
	Wheelbase/No.of axle	4 35 0 +1375 mm
	Tyre Specification	295/80R22.5
	Tyre Number	10 tyres and 1 spare tyre
	Max Speed	9 5 km/h
	Paint	Metallic paint
Superstructure	Dry Powder Tank Capacity	700 kg	4 pcs
	TankMaterial	C arbon steel
	Nitrogen Gas Bottle	Material	37Mn
		Capacity	80Litres
		Quantity	12
		Design pressure	15MPa

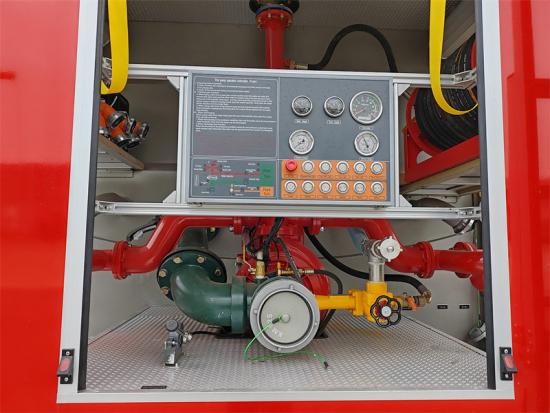

	Fire Pump	Drive mode	PTO
		Pressure range	1.6-2.5 MPa
		Flow rate	80-120 kg/s

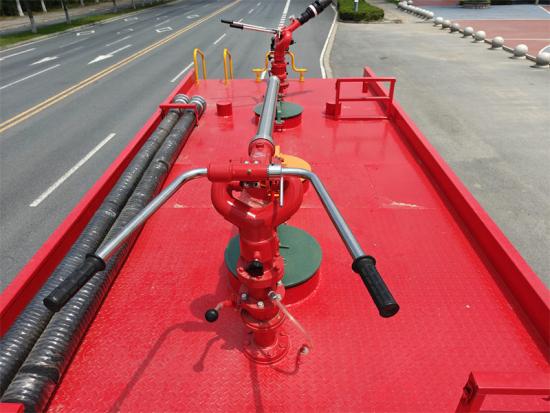

	Fire Cannon	Flow speed	60-100 kg/s
		Range	40-60 m
	Water Tank Capacity	4 ,000 Litres
	Tank Material	carbon steel
	Fire Pump	Brand	China TOP brand
		Drive mode	PTO
		Priming Manner	Automatic
		Pressure range	1.6-2.5 MPa
		Flow rate	45L / s
		Suction Height	9m
	Fire Cannon	Flow speed	45L /s
		Range	65 m
	Superstructure Electric Appliance	Warning Light and Siren	Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin.
		Strobe Light	Mounted on the both sides of the compartment
		External Lighting	隔间两侧均安装了LED灯。
		屋顶采光	LED灯安装在屋顶内侧。
		侧转向灯	车厢侧面和踏板上都装有黄色警示灯。
	所有标准配件。典型的现代消防设备配备齐全，可执行各种消防和救援任务。这些配件包括铲子、长柄钩、斧头和切割工具、撬棍……
选修的	可配备倒车报警器和摄像头标准材质为碳钢，可选不锈钢材质 **可选配美国或德国消防泵

[if gte mso 9]>1111MicrosoftInternetExplorer402DocumentNotSpecified7.8 磅Normal0

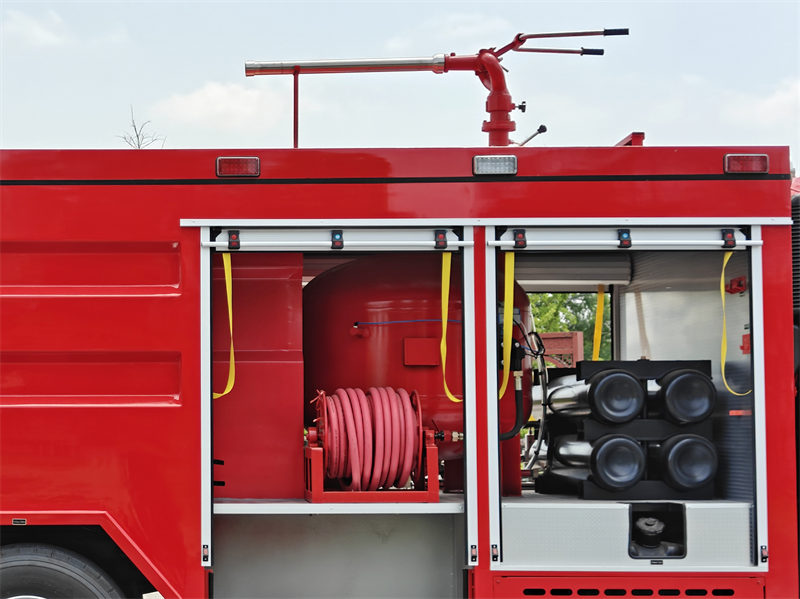

Howo fire fighting truck

» Ⅱ. Product Parameter for Howo fire fighting truck ：

[if gte mso 9]>1111MicrosoftInternetExplorer402DocumentNotSpecified7.8 磅Normal0 1. Powerful Engine and Superior Chassis：

♦ The 6x4 configuration provides exceptional traction and load-bearing capacity, making it ideal for operation in accident scenes such as factories and warehouses on rough, slippery, or unpaved roads.

♦ The Howo TX cabin chassis is reinforced to reliably support heavy-duty equipment (dry powder systems, water tanks, nitrogen cylinders), ensuring stability and safety during driving and operation.

♦ The Weichai WP10.340E32 engine is a proven and mature engine with high torque and excellent low-speed torque characteristics, making it ideal for fire trucks that require frequent starts, acceleration, and continuous operation.

♦ The HW 10-speed transmission features closely spaced gears, allowing the driver to precisely select the appropriate gear based on road conditions and load, ensuring smooth and efficient power delivery.

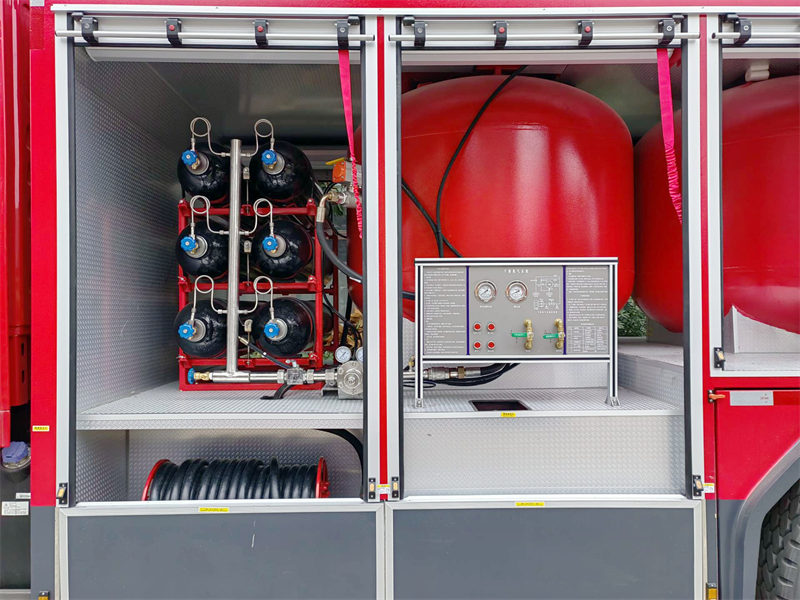

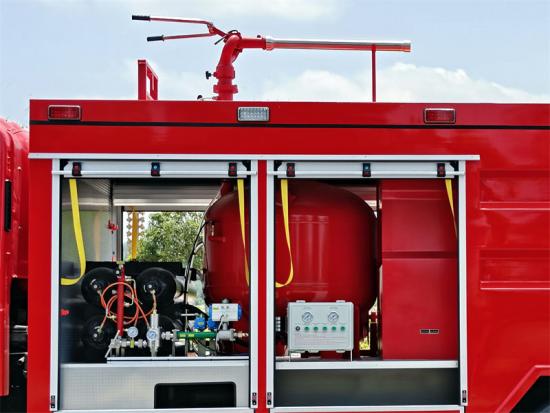

2.Dry Powder Fire Extinguishing System:

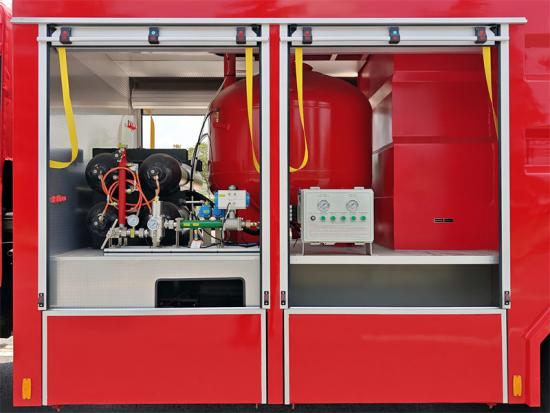

♦ A total dry powder canister with a capacity of 700 kg provides ample reserves for sustained spraying over extended periods.

♦ 4 units 80 L nitrogen cylinders with a design pressure of up to 15 MPa provide an extremely powerful power source.

♦ High-pressure nitrogen ensures the dry powder is sprayed at extremely high speeds and with excellent atomization, instantly covering the fire source for rapid suffocation and chemical suppression.

♦ Suitable for extinguishing Class A (solid), Class B (liquid, gas), and Class C (electrical) fires, it is an effective tool for handling fires involving oil tanks, chemicals, power facilities, and natural gas leaks.
