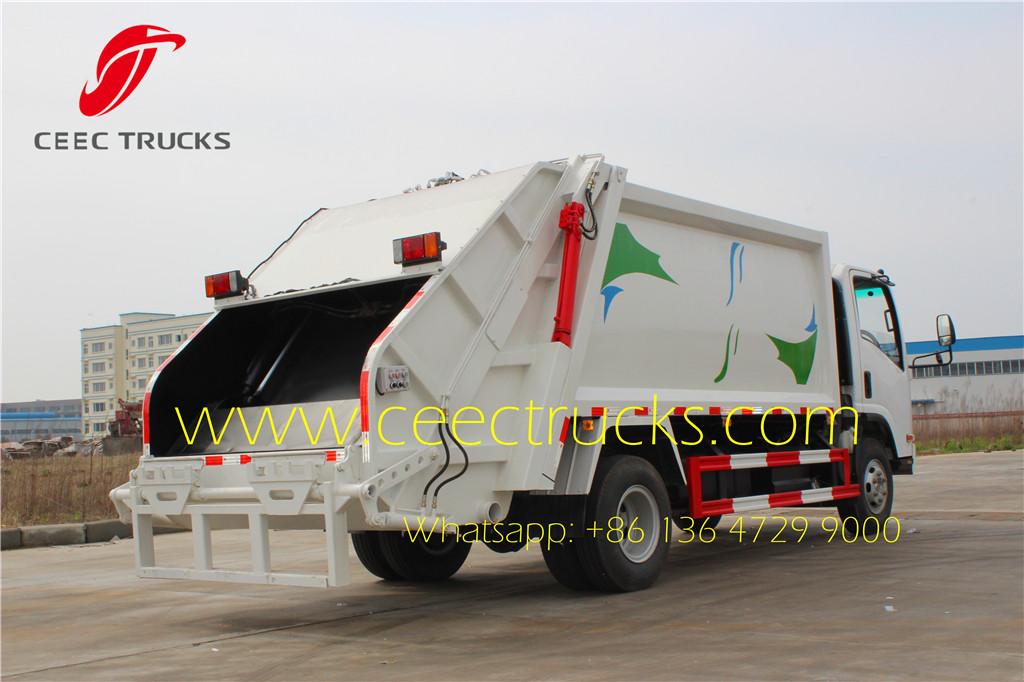

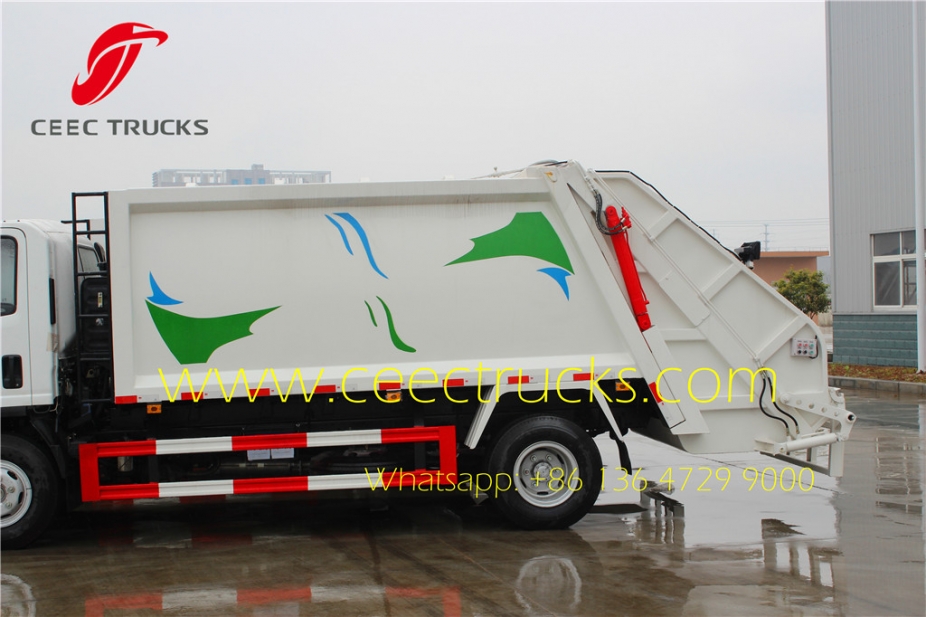

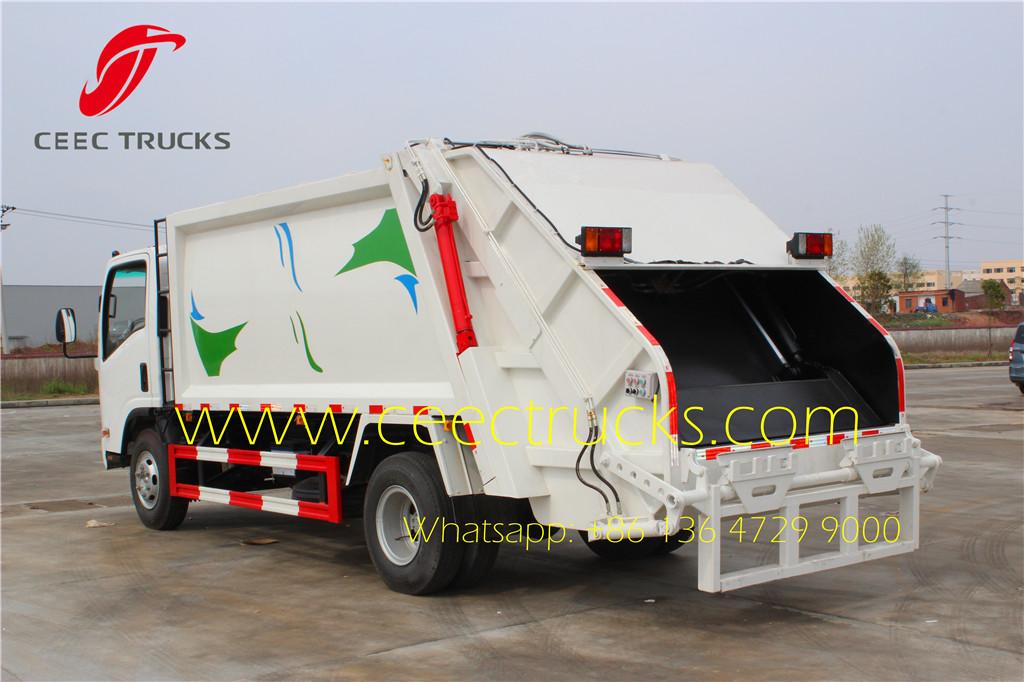

8立方米五十铃垃圾压缩机

Product name

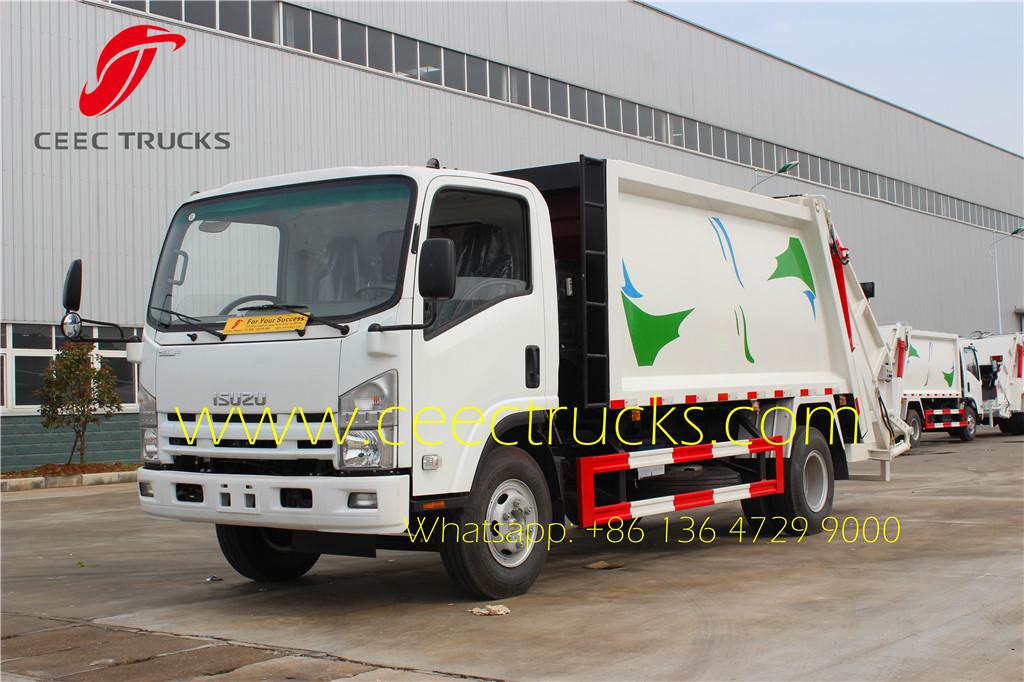

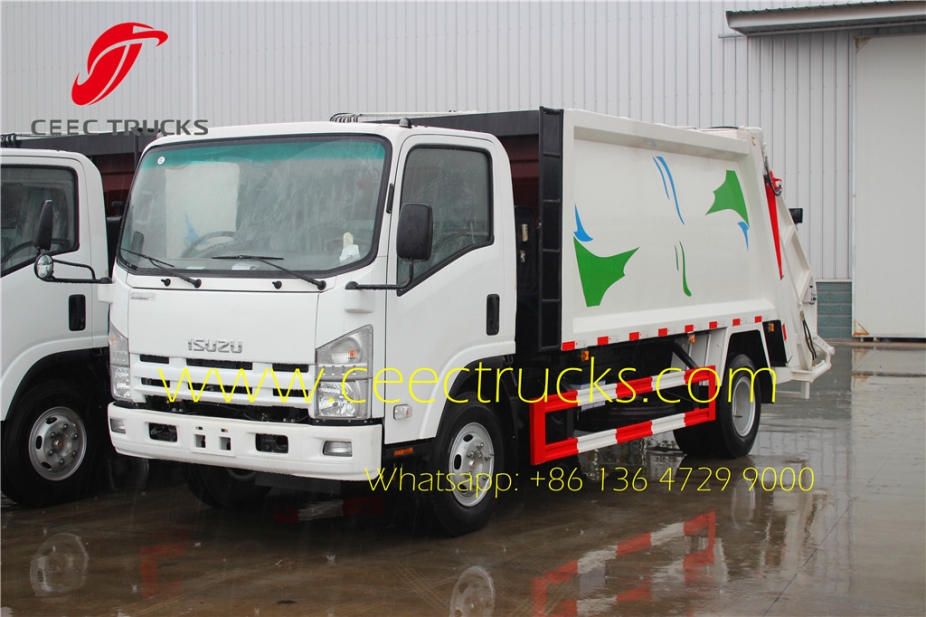

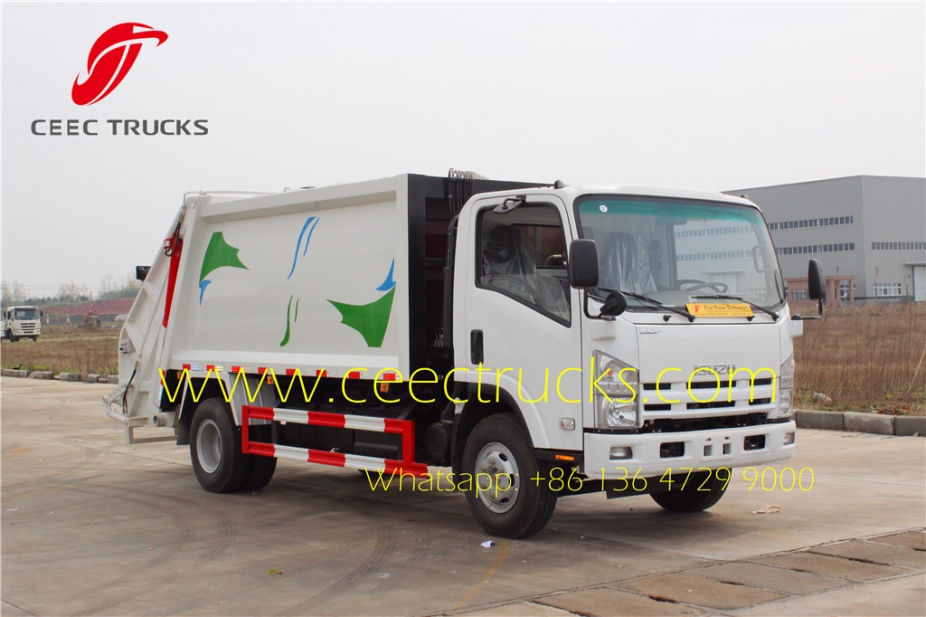

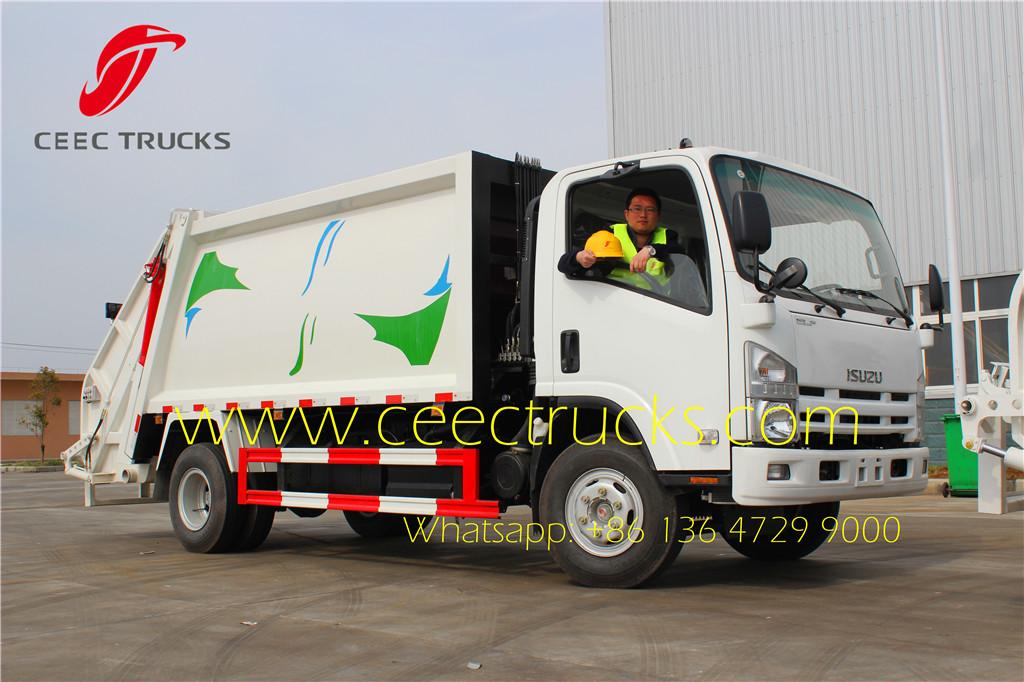

ISUZU 8CBM Garbage Compactor Truck   LHD / 4*2

Chassis name

ISUZU brand

Capacity of body

8CBM  (2200Gallons)

Specification

of vehicle

Outside dimension (mm):

7690x2250x2950

Total weight (kg):

14000

Loading weight (kg):

8000

Net weight (kg):

6880

Approach / departure angle (mm):

19/13

Front / rear suspension (mm):

1032/1818

Fuel type :

Diesel

Max. speed (km/h):

105

Engine specs

Model :

ISUZU 4HK1-TCG40

Manufacturer :

ISUZU

Displacement (ml):

5193

Power (kw):

140

Chassis specs

Driving type:

4×2

Wheelbase (mm):

3815

Tread (front/rear):

1506/1442

Displacement standard:

Euro 4

Front / rear axle:

Japanese tech

Gear box:

ISUZU MLD 6-shift gerbox

Brake system:

Pneumatic

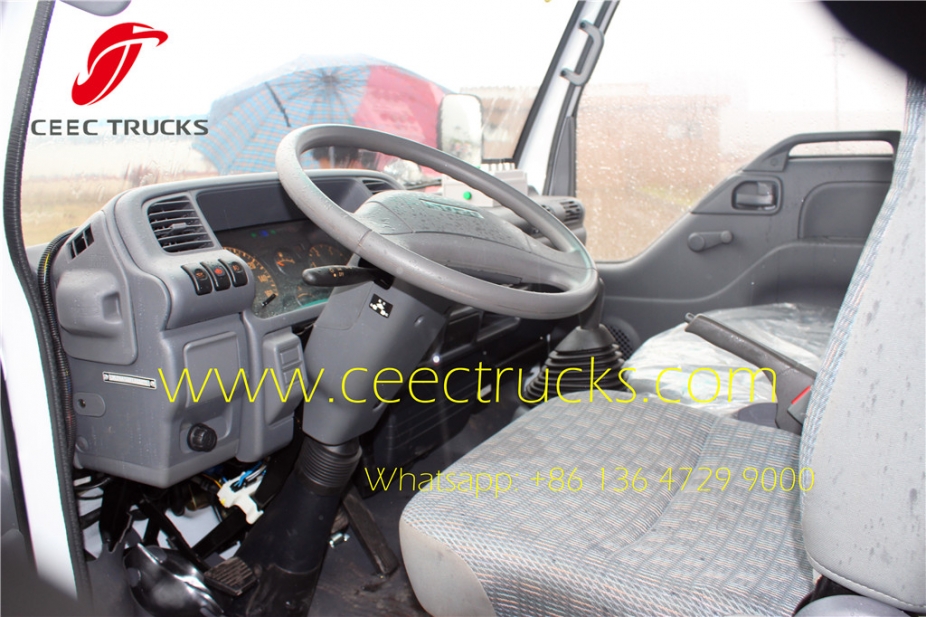

Cab:

Single cab

Spring file (front/rear):

8/9+5

Tyre:

8.25-16

Air condition :

equipped

Garbage body feature

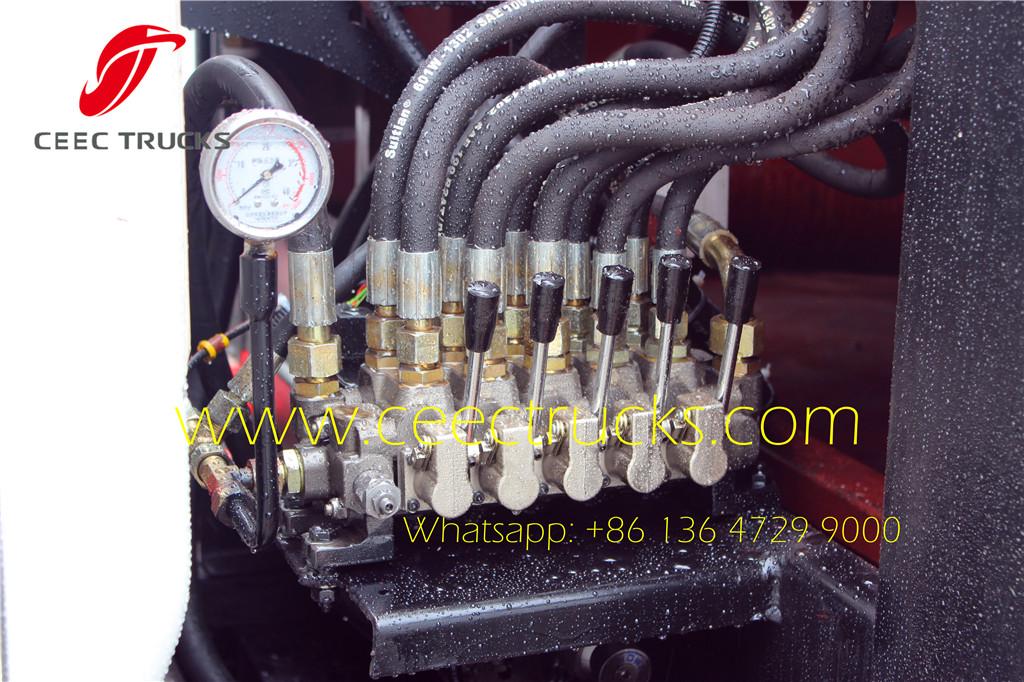

Working pressure of hydraulic

16MPa

Garbage body mterial

Carbon steel Q235

Thickness

Side

4mm

Floor

4mm

Lifting the bin time:

20s

Unloading bin time:

12s

Brief introduction

1, The large hydraulic cylinder drive the double arms, to install hydraulic legs to make sure the stability and safety of vehicle during operation.

2, The type of garbage box: sealed, semi-enclosed. The shape of garbage box: rectangular shape, trapezoidal.

3, The characterized of this vehicle: cargo compartment and vehicle body can be separated. One vehicle can work with more one garbage cargo body, recycling transport; improve the transport capacity, especially for short-distance transport, such as the sanitation department.
